LEMON Manuals: Even more car manuals for everyone
Home >> Ford >> 2011 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C543-C851 >> C570B

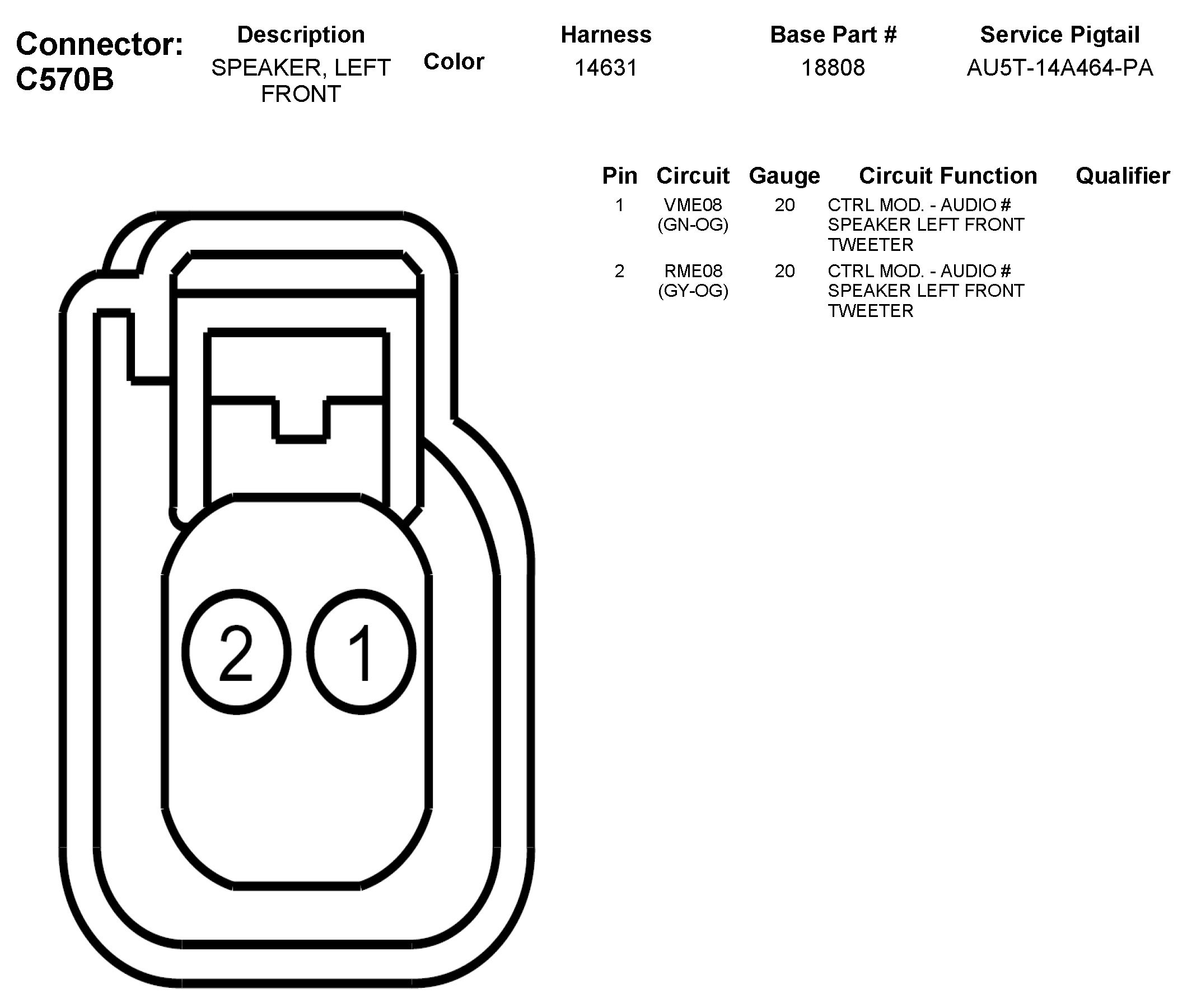

C570B
