Home >> Ford >> 2010 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Refrigerant Pressure Sensor / Switch, HVAC >> A/C Compressor Cycling Switch

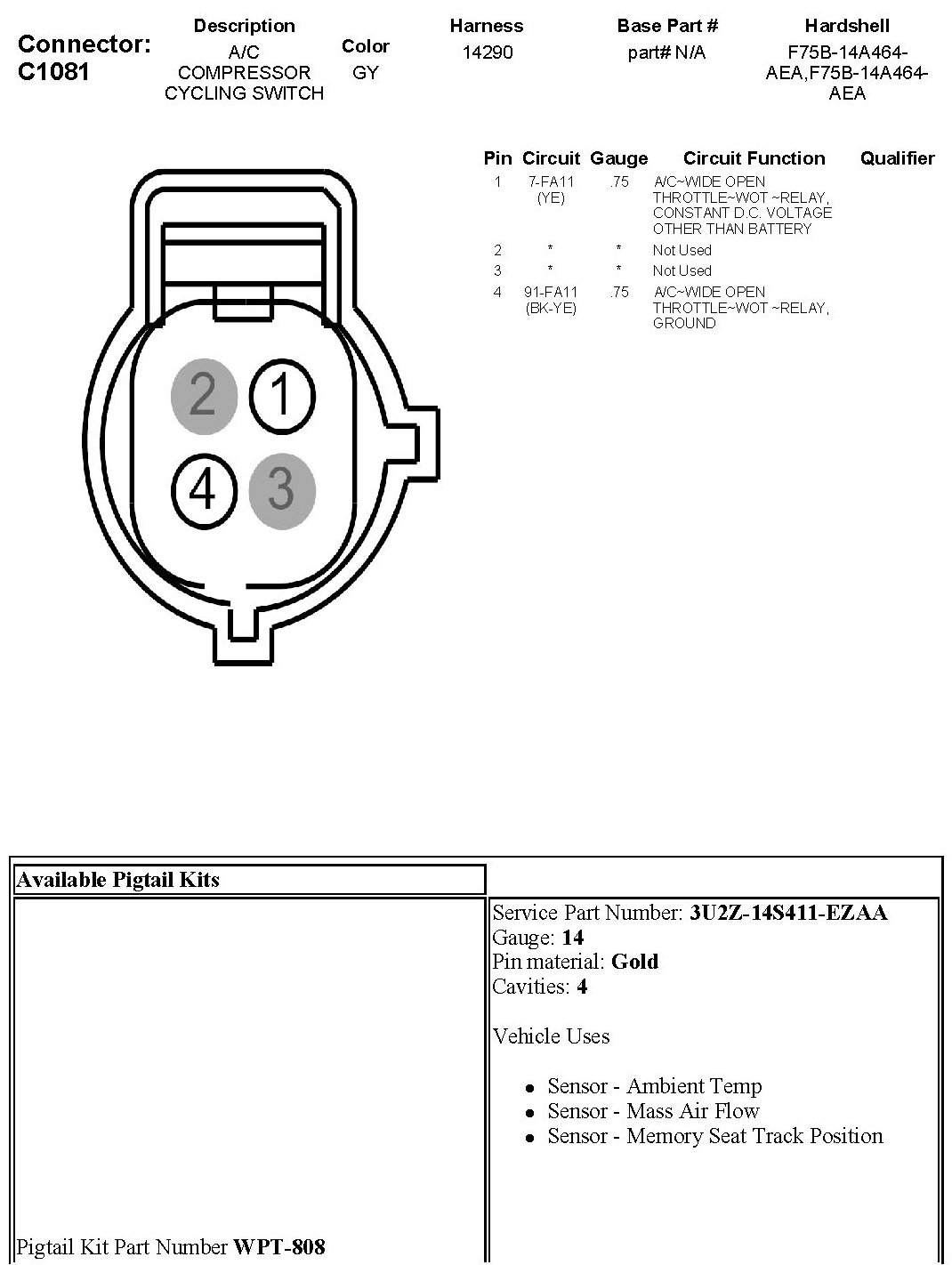

A/C Compressor Cycling Switch
