Drive Belt: Diagrams

Accessory Drive

Accessory Drive Belt Routing

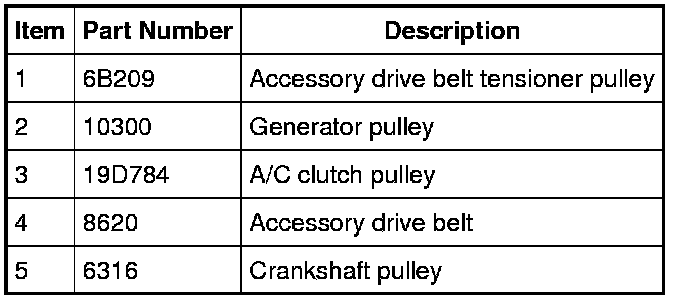

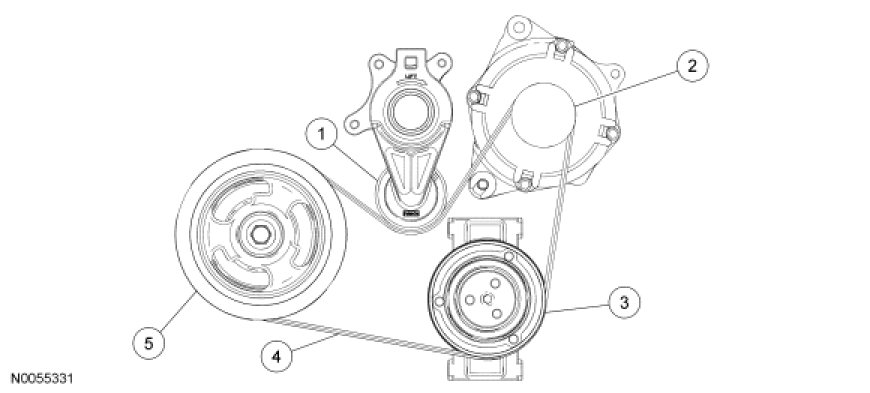

Front End Accessory Drive (FEAD) Belt

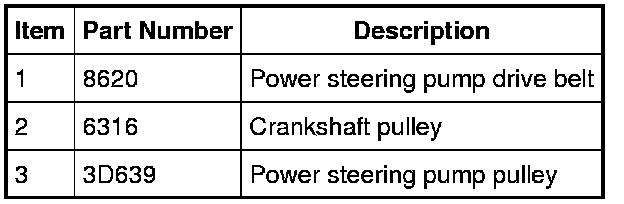

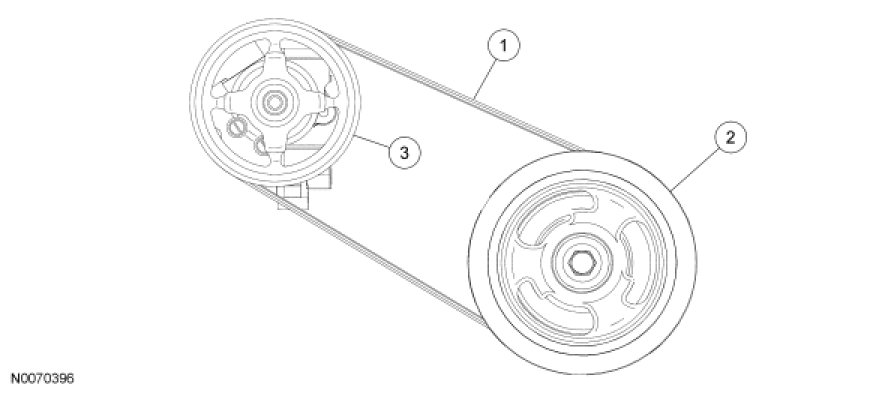

Power Steering Pump Belt

NOTE: Vehicles with Hydraulic Power Assist Steering (HPAS) only.
