Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)

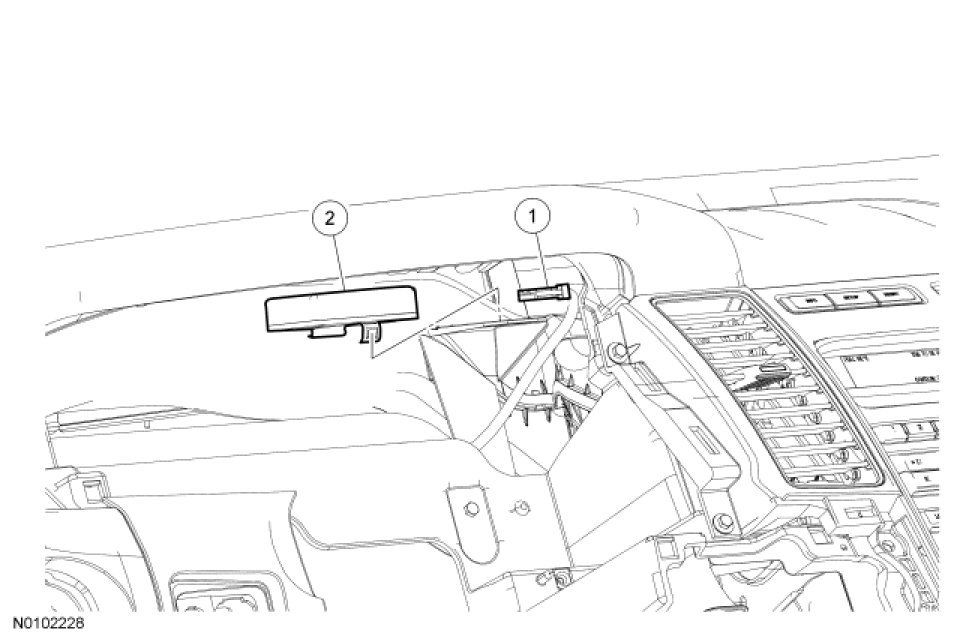

NOTE: Steering wheel shown removed for clarity only.











Removal and Installation

1. Remove the Instrument Panel Cluster (IPC). For additional information, refer to Instrument Panel, Gauges and Warning Indicators.

2. Release the clip and remove the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
