Fuse
>>
Locations
>>

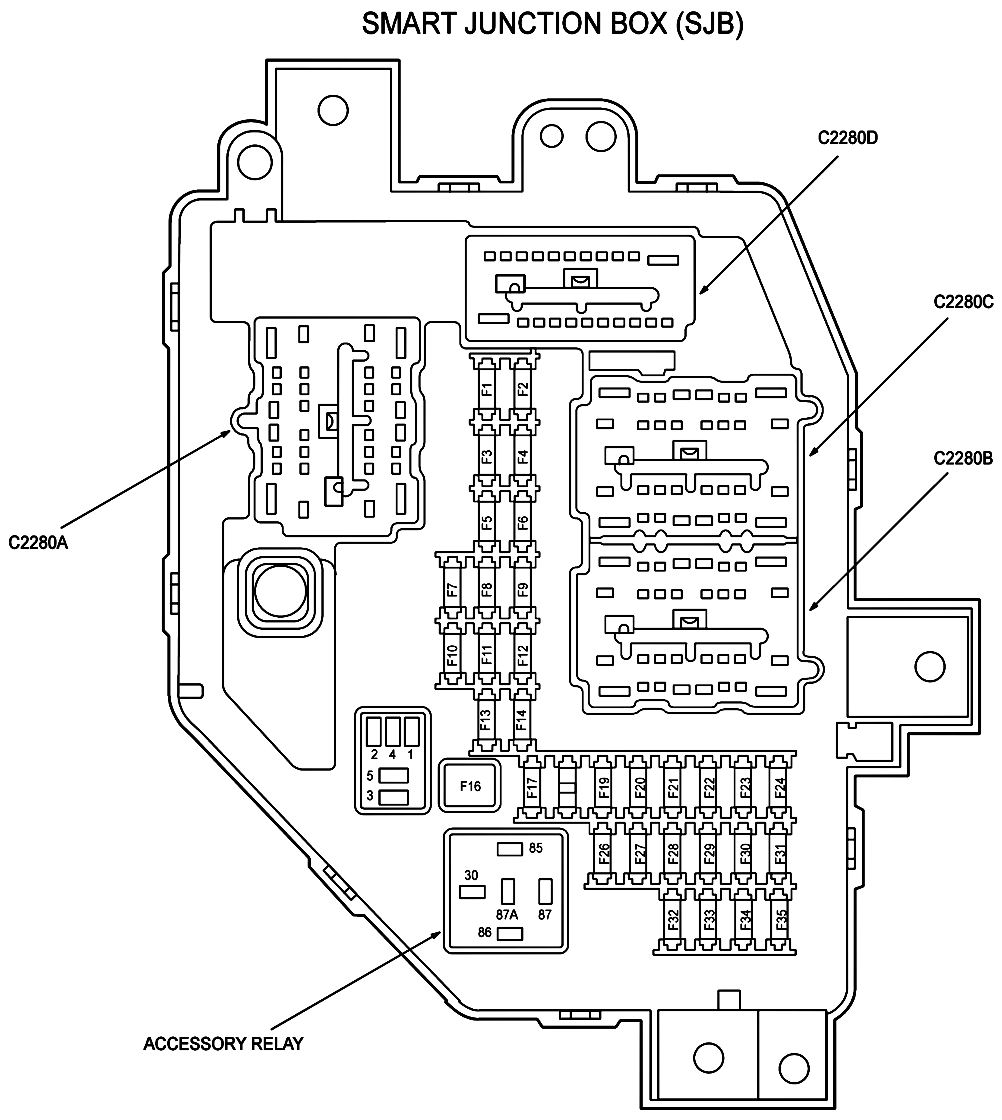

Smart Junction Box
Smart Junction Box
Note:
The fuse panel is located under the right-hand side of the instrument panel behind the kick panel.
