Cruise Control Switch




Cruise Control Switch









Removal and Installation

1. Remove the driver air bag module. For additional information, refer to Restraint Systems.

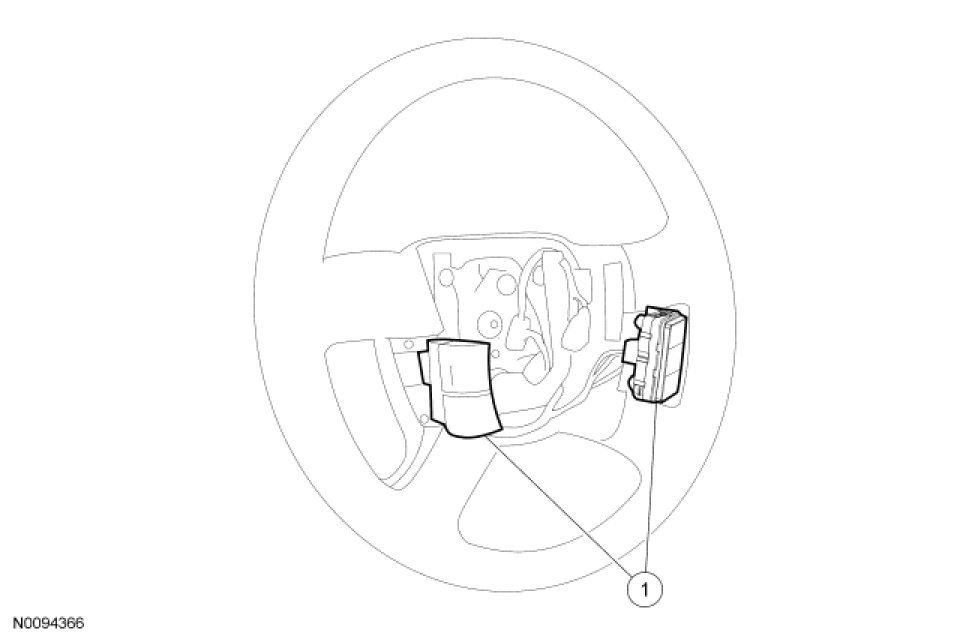

2. Using a suitable pry tool such as a flat-bladed screwdriver, remove the cruise control switch by prying the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
