Home >> Ford >> 2010 >> Mustang V8-4.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Flex Plate

Flex Plate

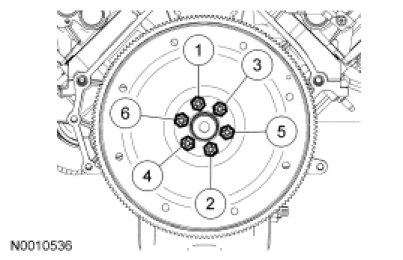

To install, tighten to 80 Nm (59 lb-ft) in the sequence shown.
