Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)









Removal and Installation

1. Remove the Instrument Cluster (IC). For additional information, refer to Instrument Panel, Gauges and Warning Indicators.

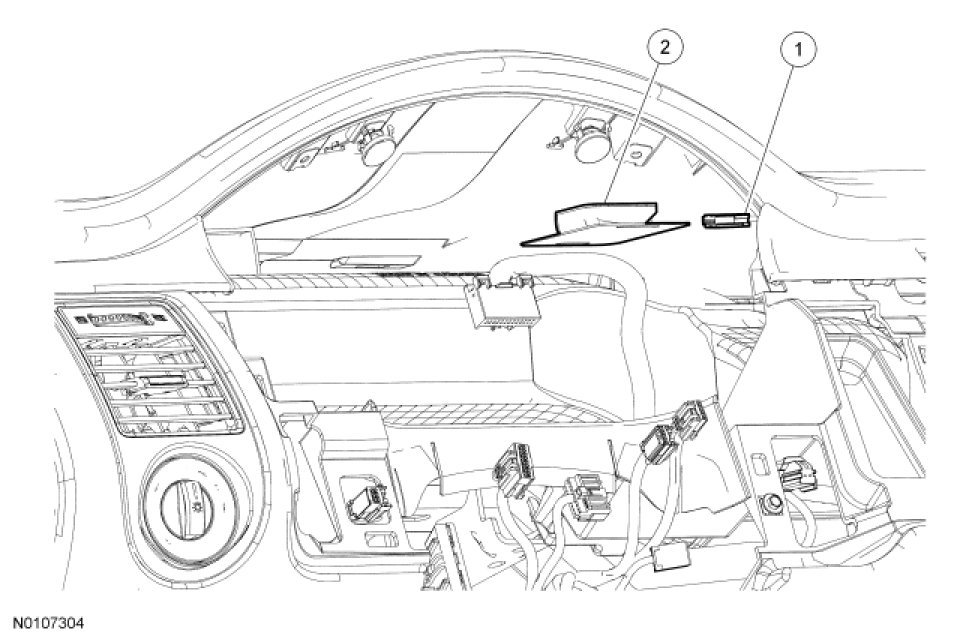

2. Release the 2 clips and remove the Global Positioning System Module (GPSM)
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
