Home >> Ford >> 2010 >> F 150 4WD V8-6.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

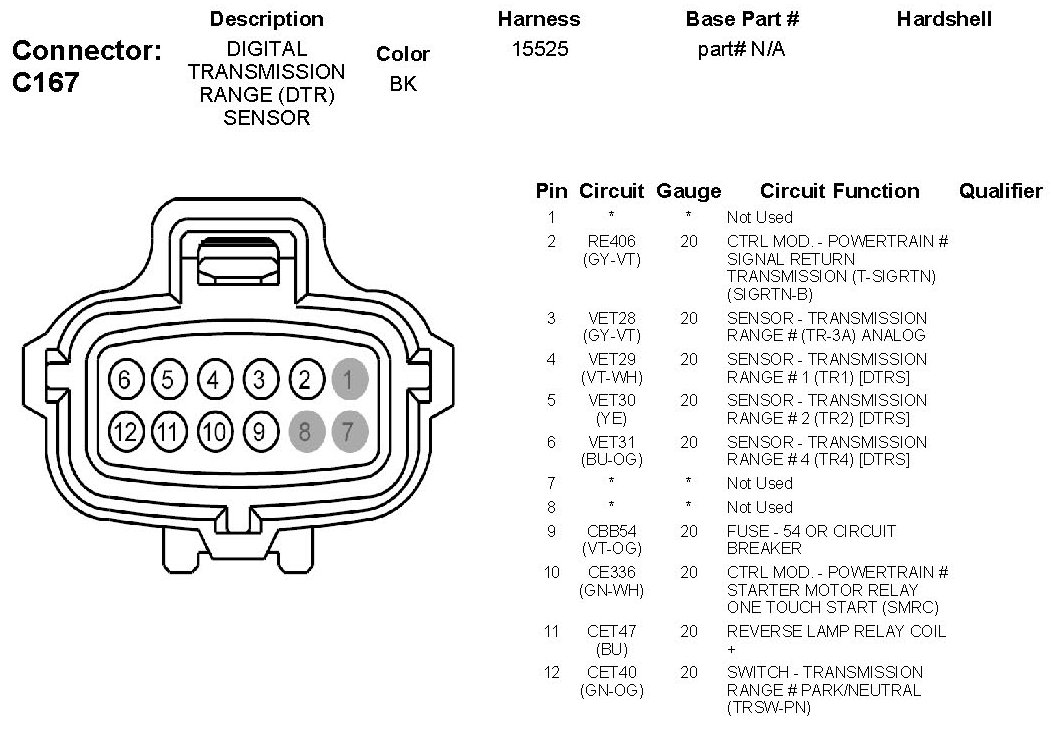

Transmission Position Sensor/Switch: Diagrams
