Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor - 6.2L (2V)













Removal and Installation

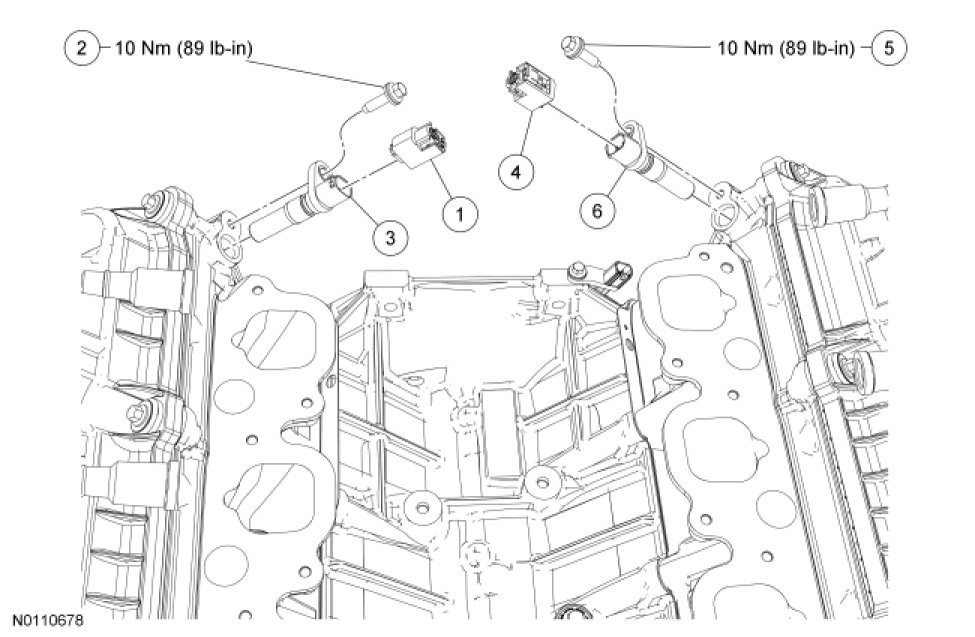

1. Disconnect the Camshaft Position (CMP) sensor electrical connector.

2. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
- Lubricate the CMP sensor O-ring seal with clean engine oil prior to installation.
