Lighting and Horns: Testing and Inspection

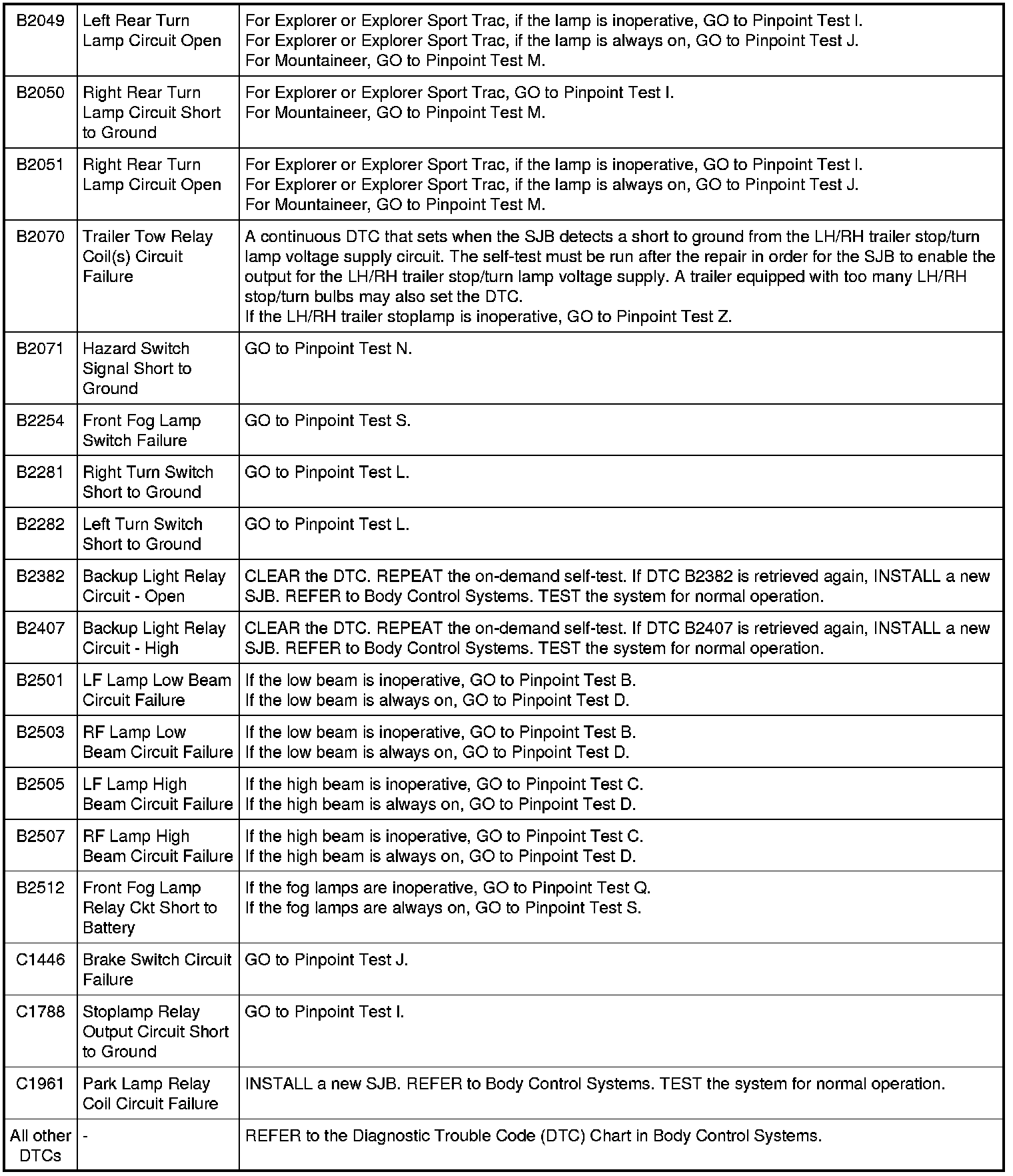

Diagnostic Trouble Code (DTC) Chart

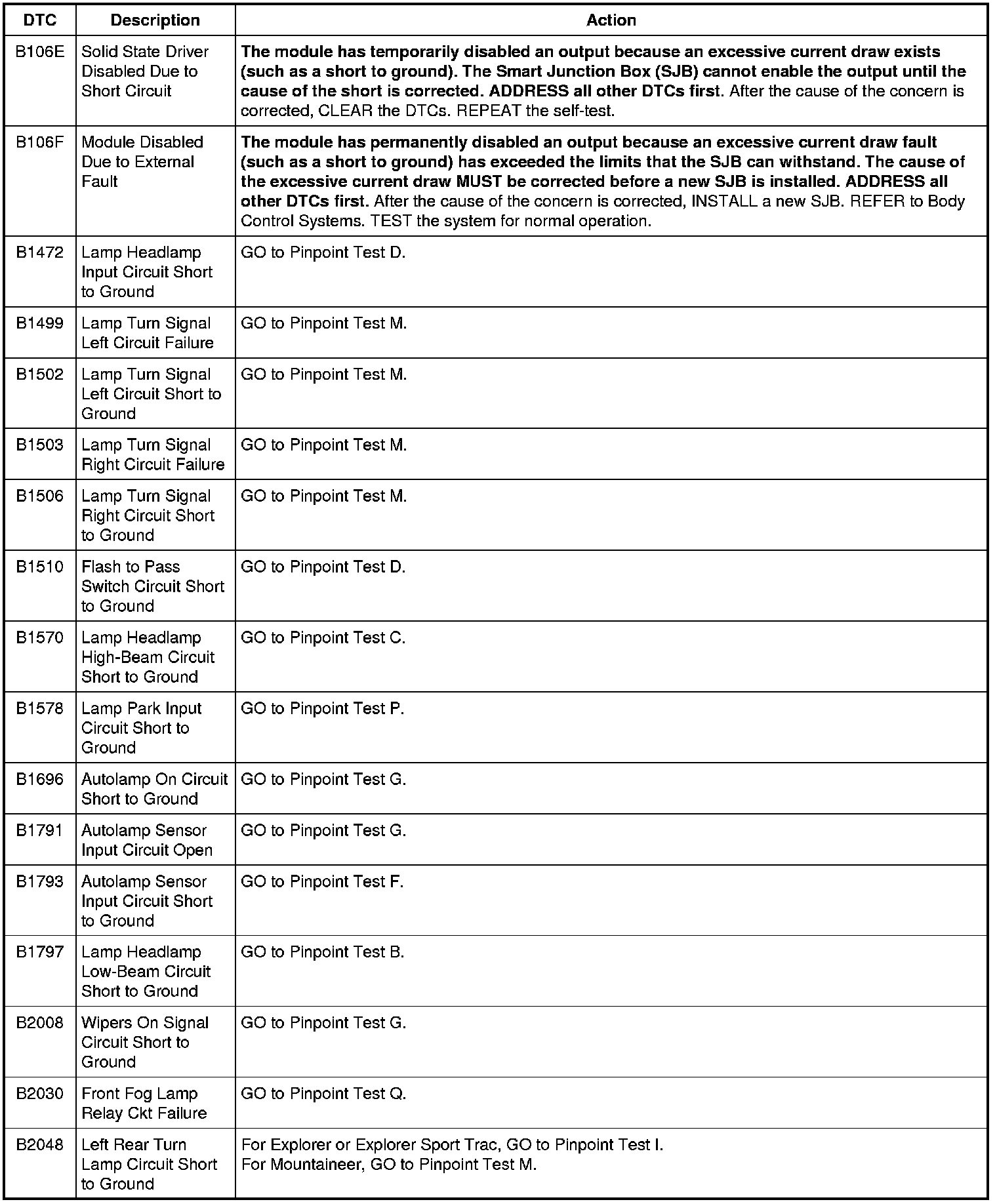

Smart Junction Box (SJB) DTC Chart
