Front End Body Panels - Exploded View
Front End Body Panels - Exploded View
Front End Body Panels - Exploded View

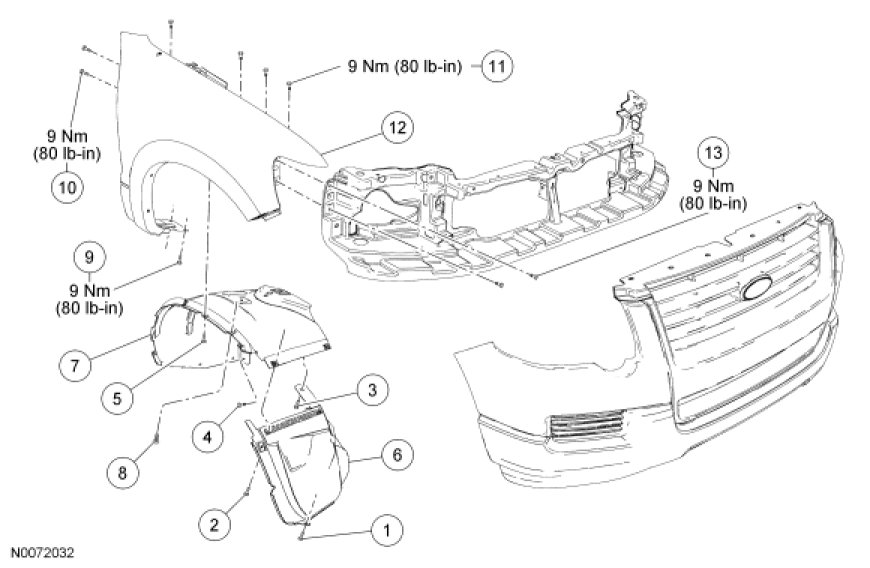

Explorer/Explorer Sport Trac

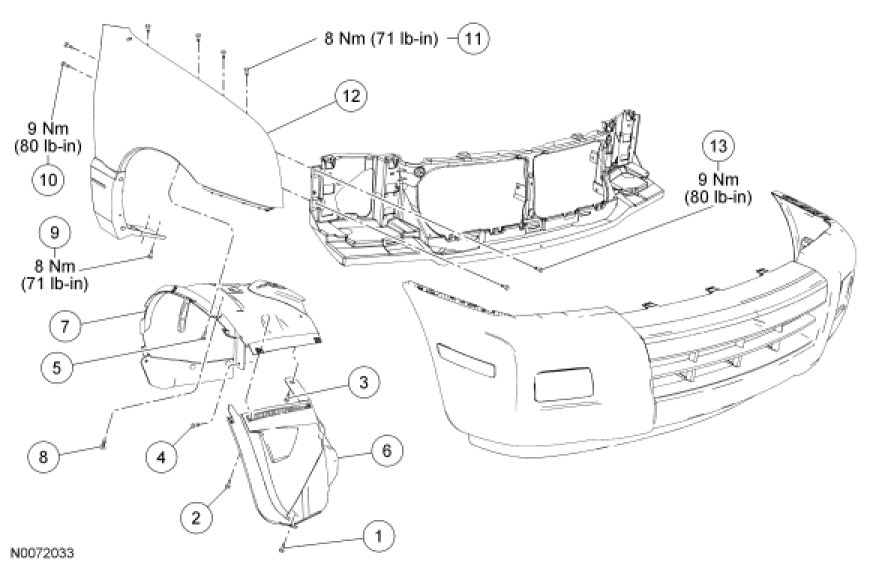

Mountaineer
