Ford
>>
2010
>>
Explorer 2WD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

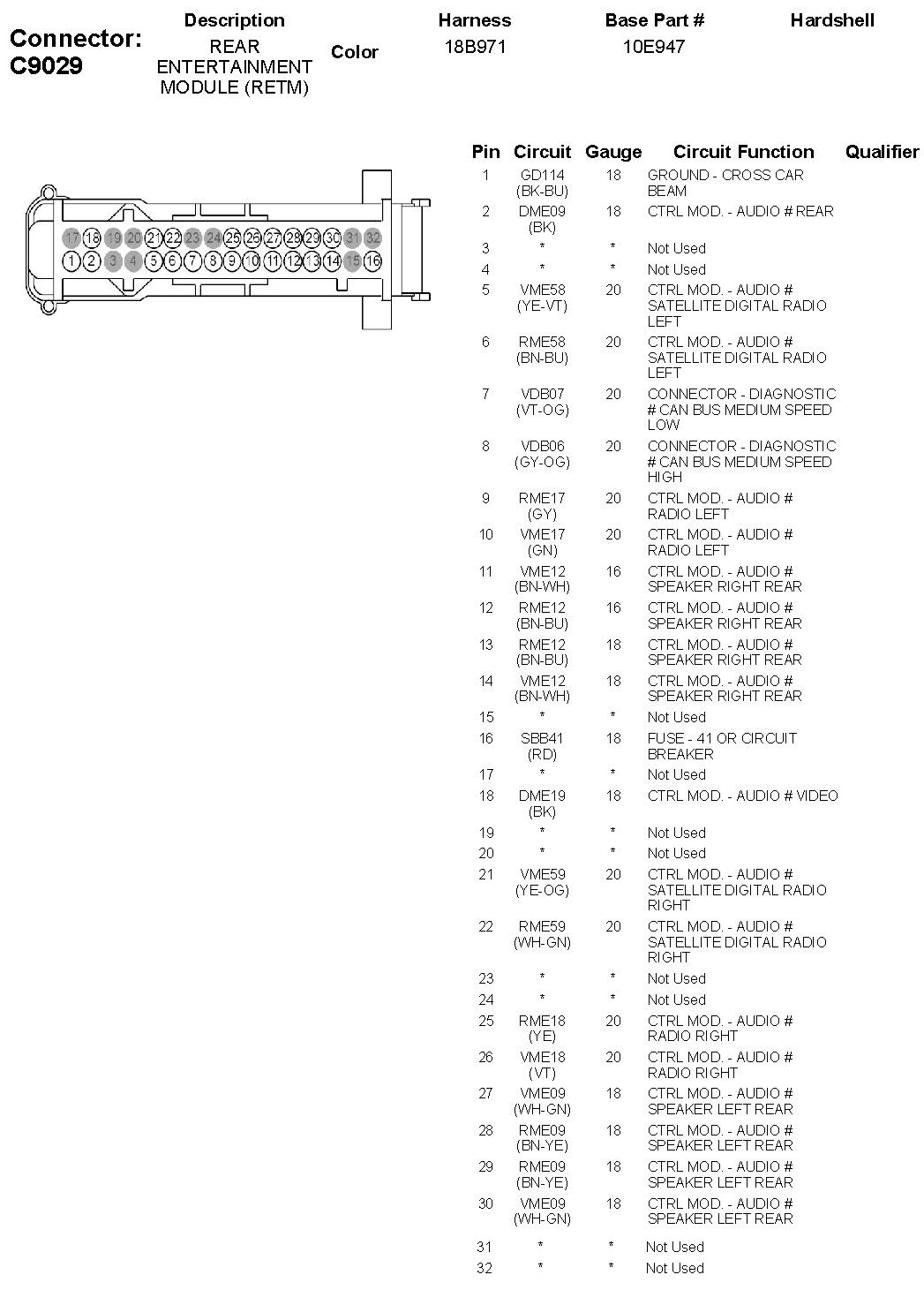

Entertainment System Control Module
Entertainment System Control Module
