Transmission
Disassembled Views

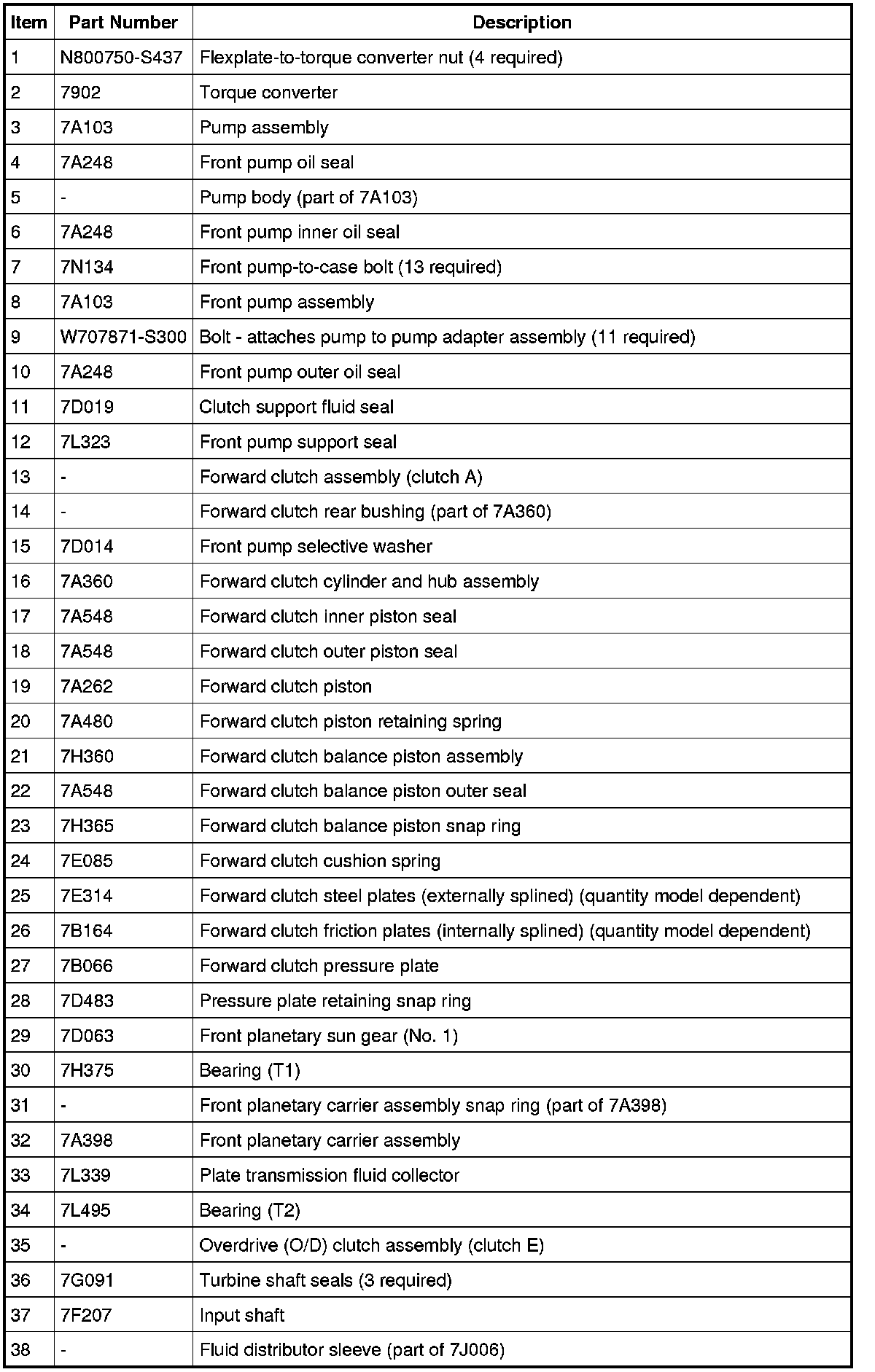

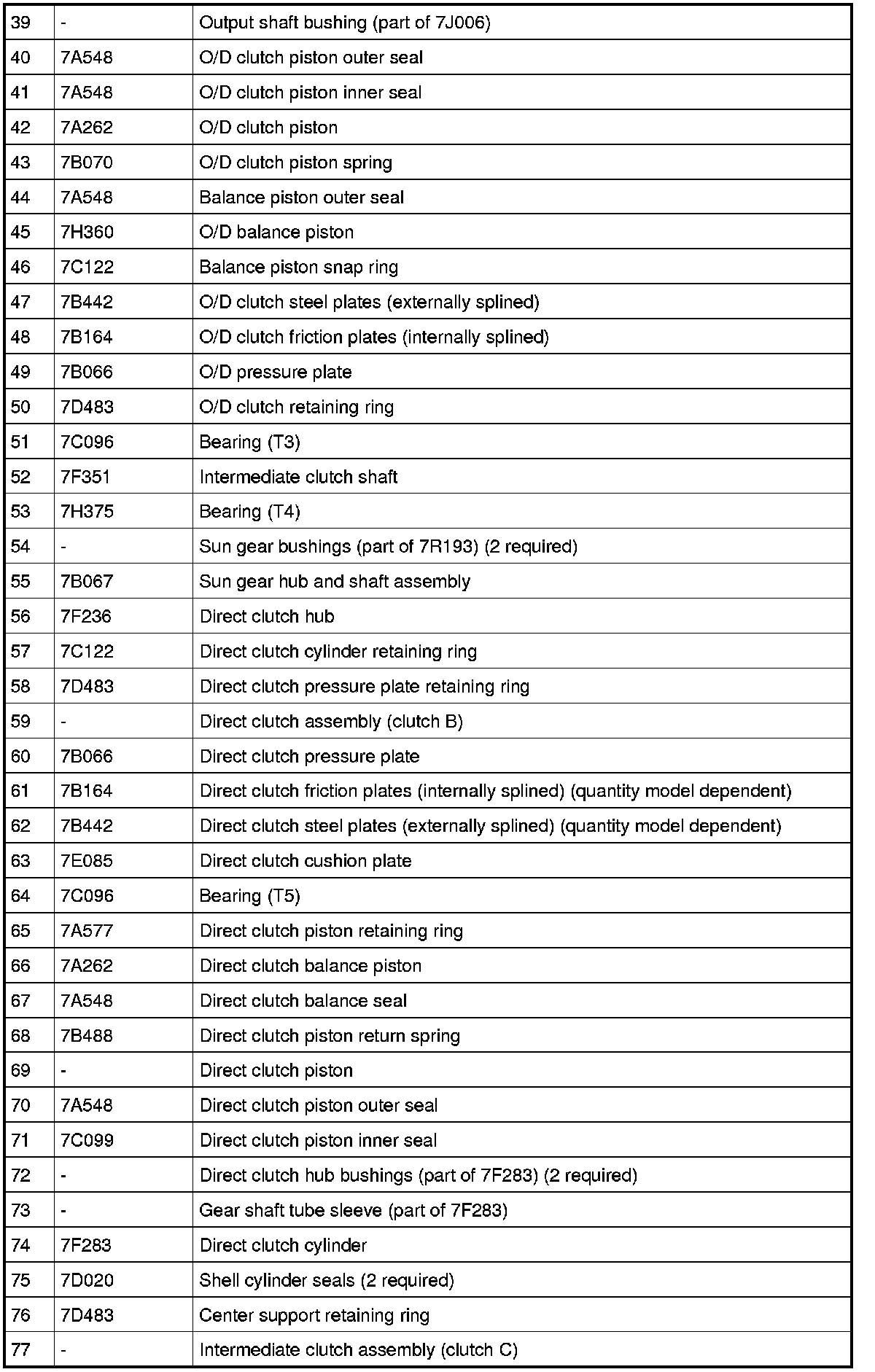

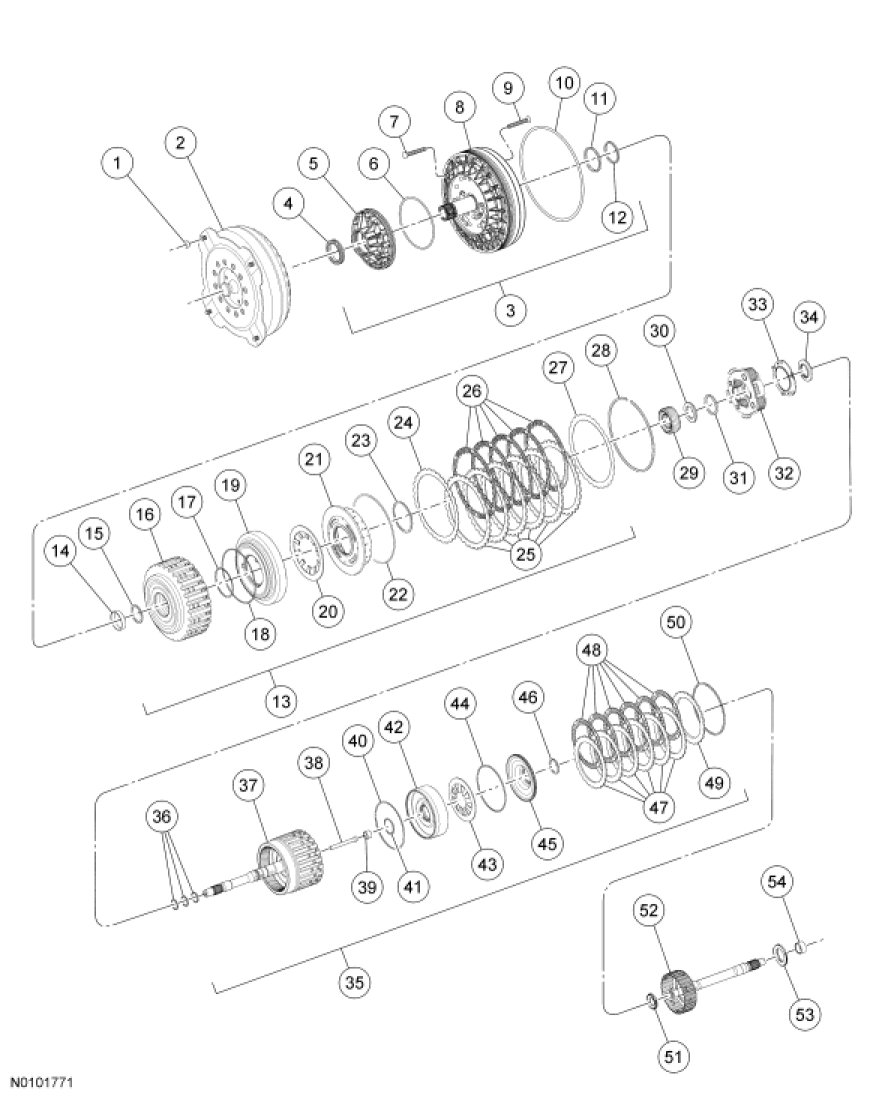

Transmission Disassembled View (Part 1):

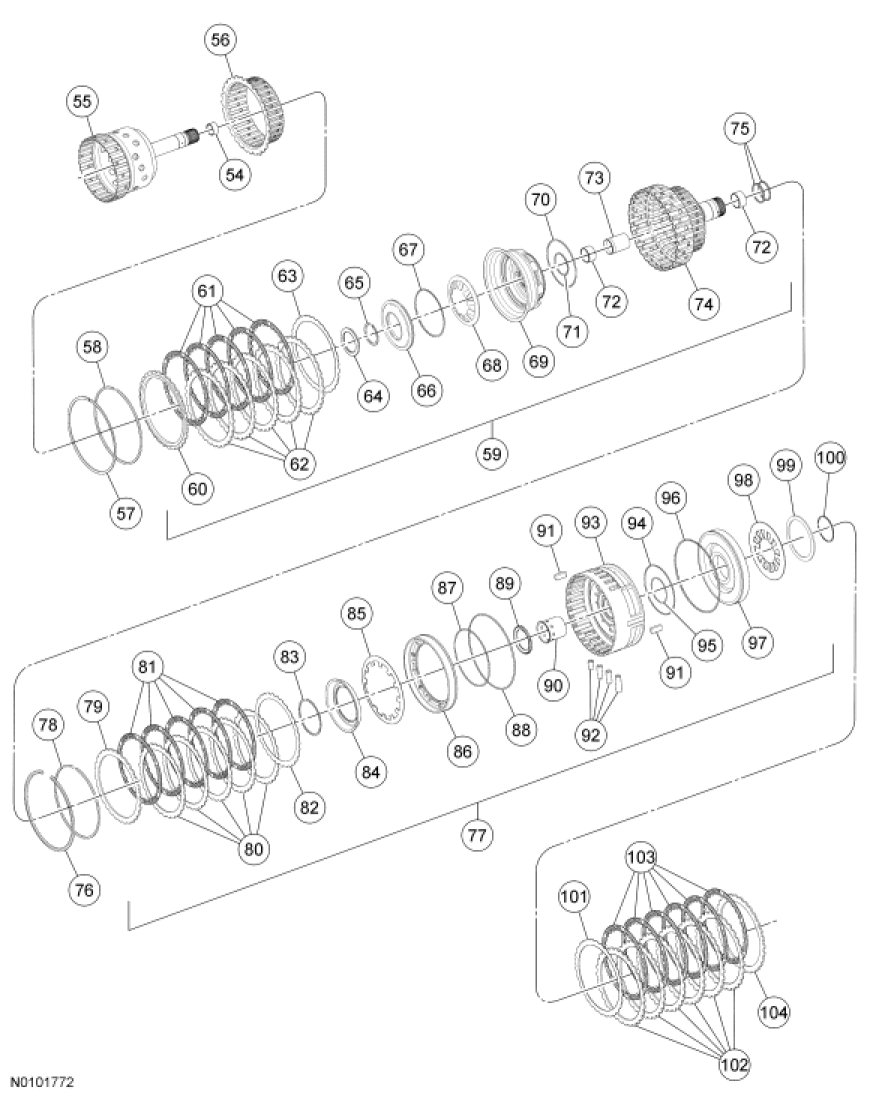

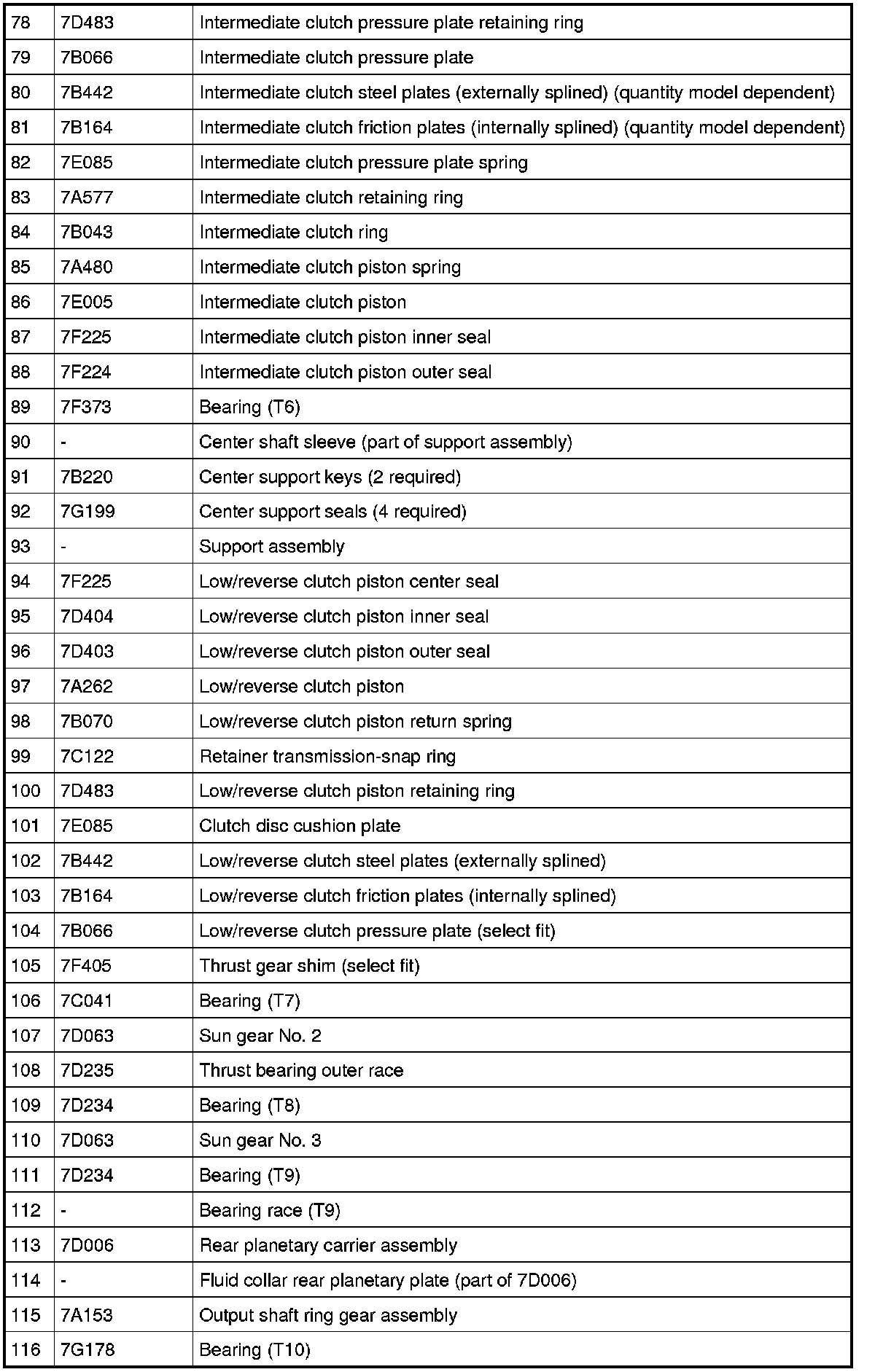

Transmission Disassembled View (Part 2):

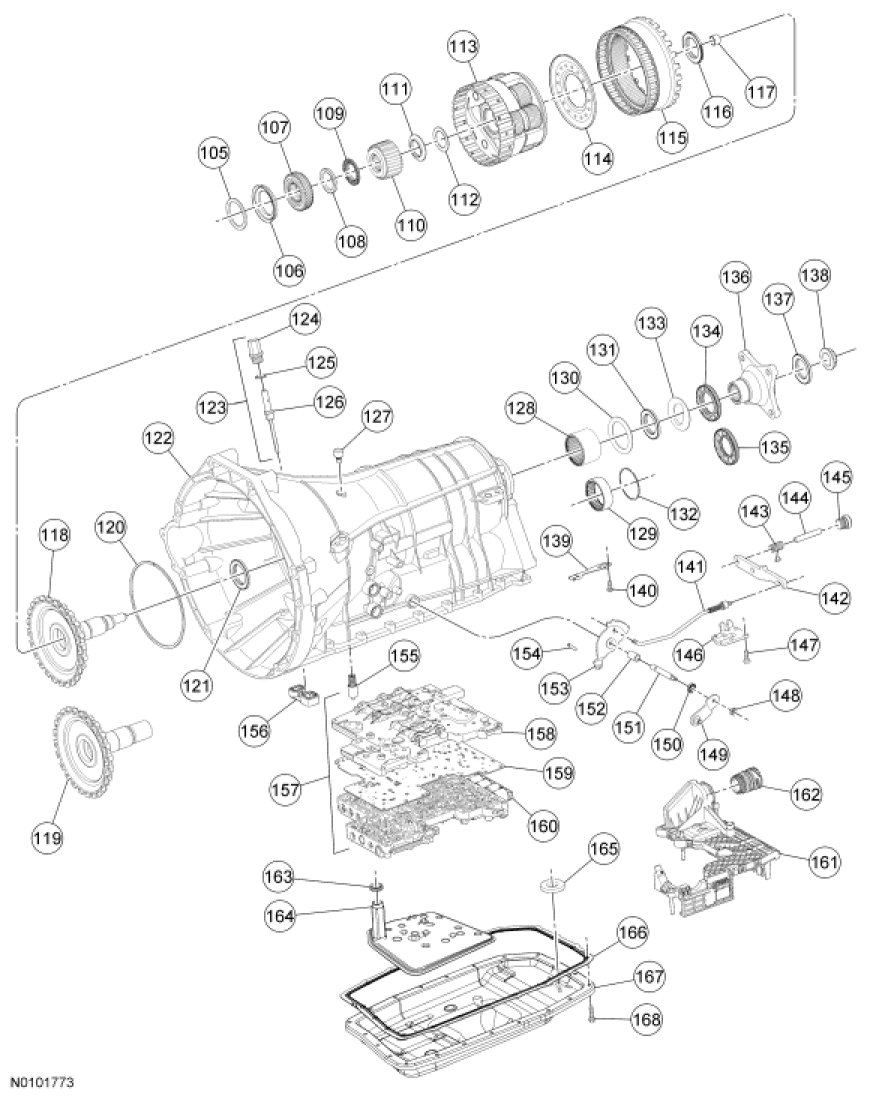

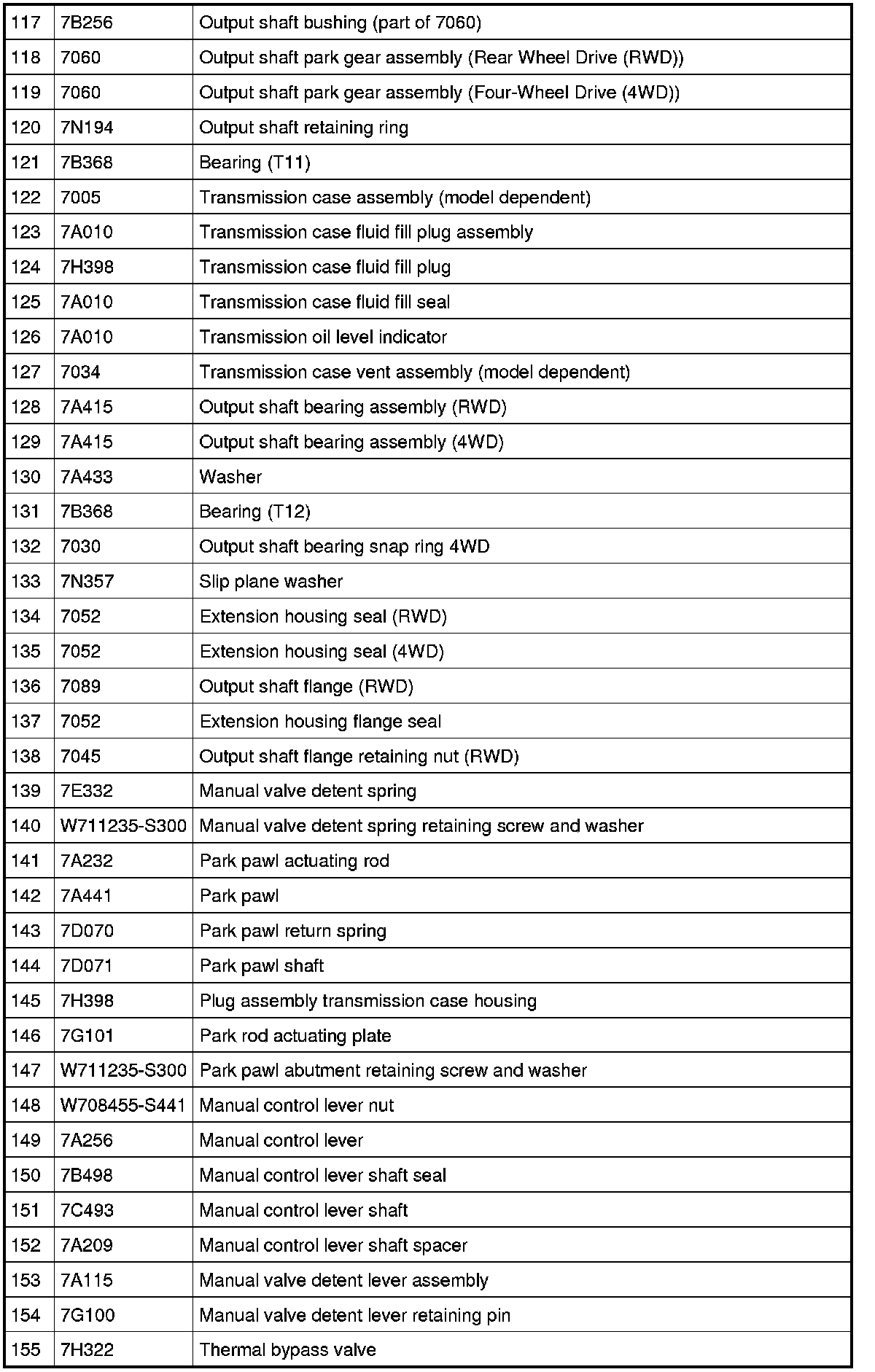

Transmission Disassembled View (Part 3):
