Home >> Ford >> 2010 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection

Lighting and Horns: Testing and Inspection




Diagnostic Trouble Code (DTC) Chart

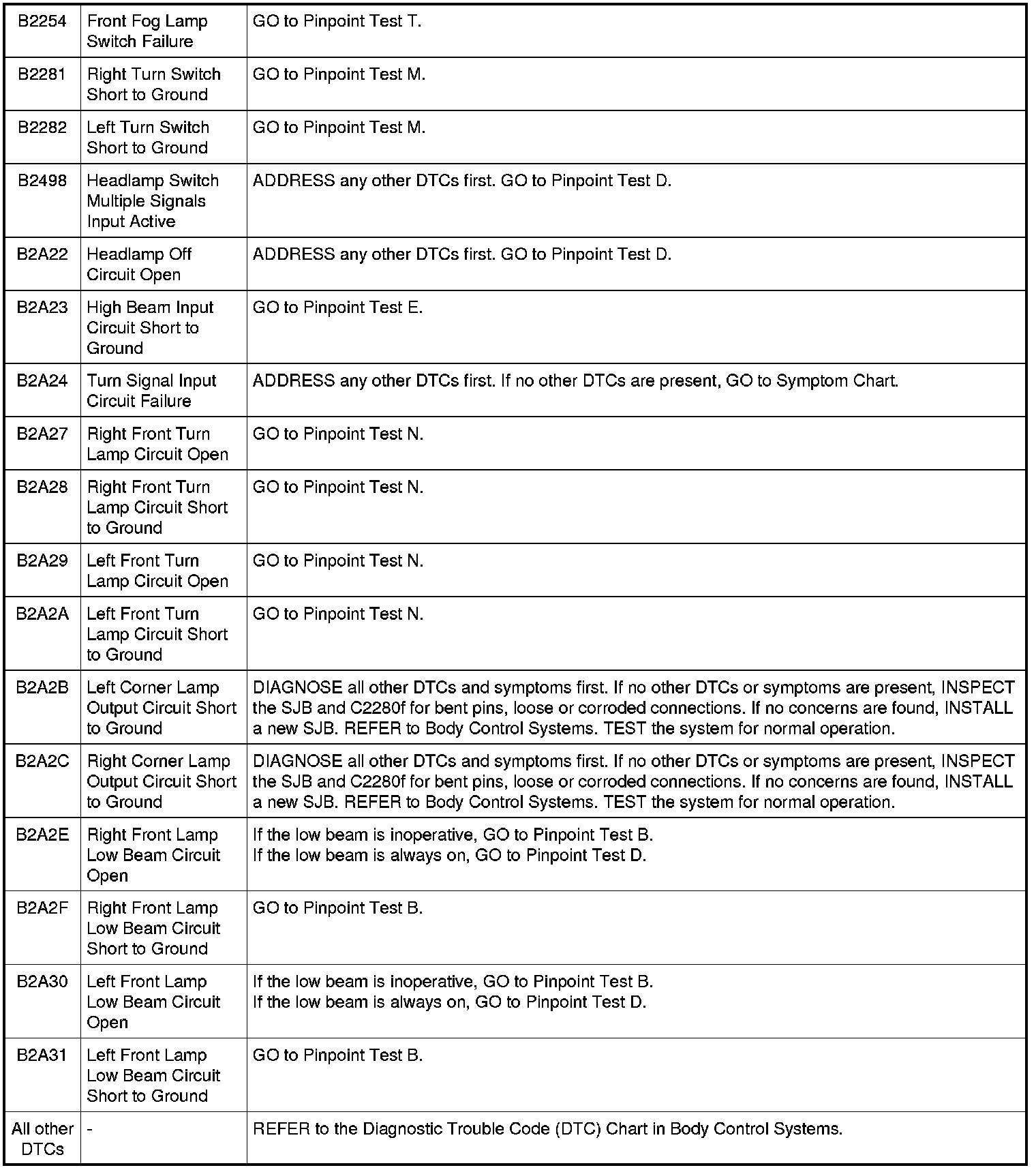

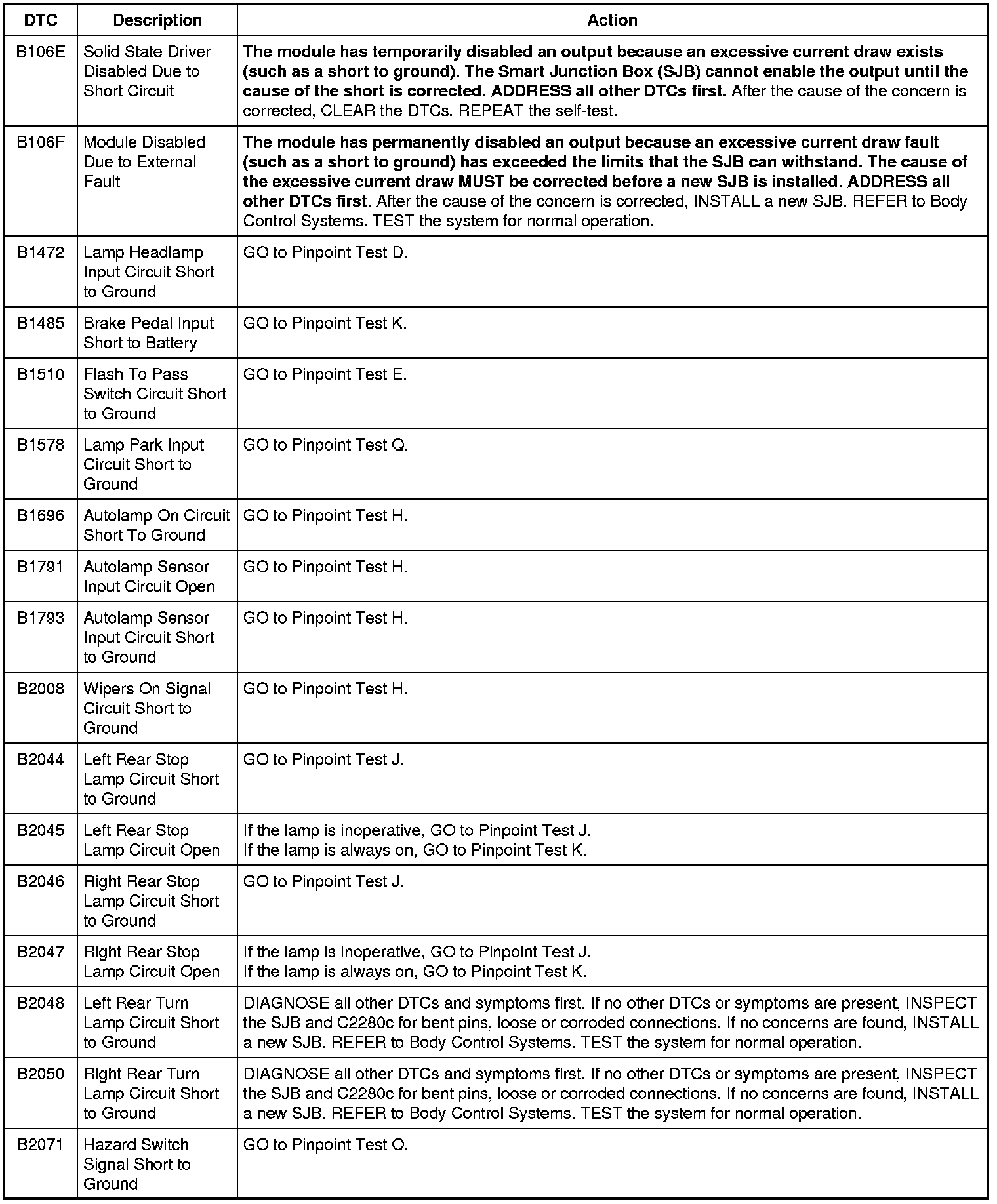

Smart Junction Box (SJB) DTC Chart

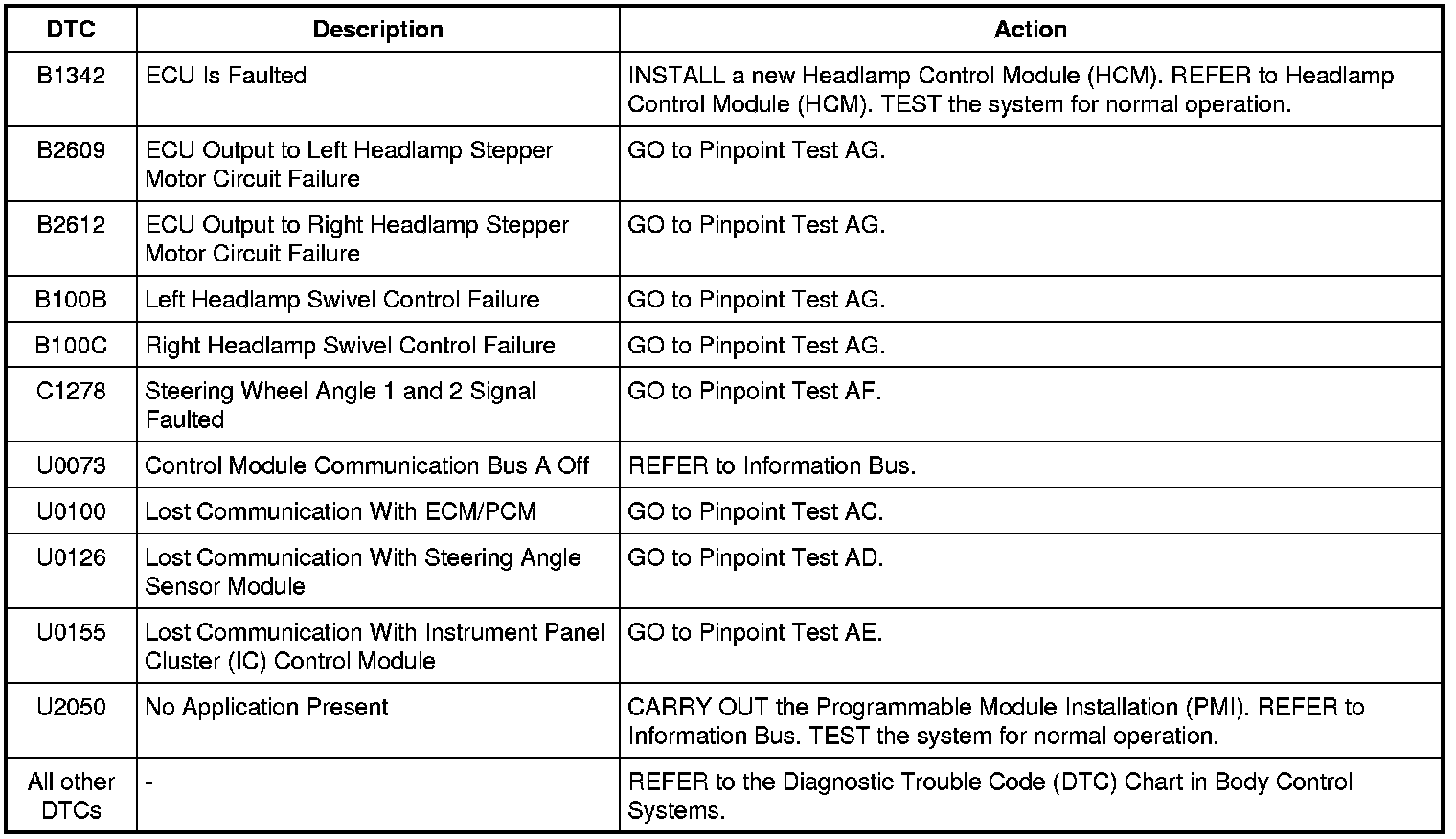

Headlamp Control Module (HCM) DTC Chart

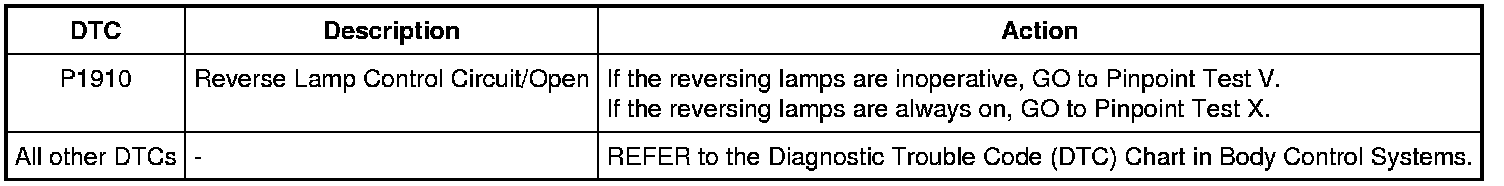

PCM DTC Chart
