Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test A: Powertrain Control Module (PCM) Power Relay
Test A: Powertrain Control Module (PCM) Power Relay

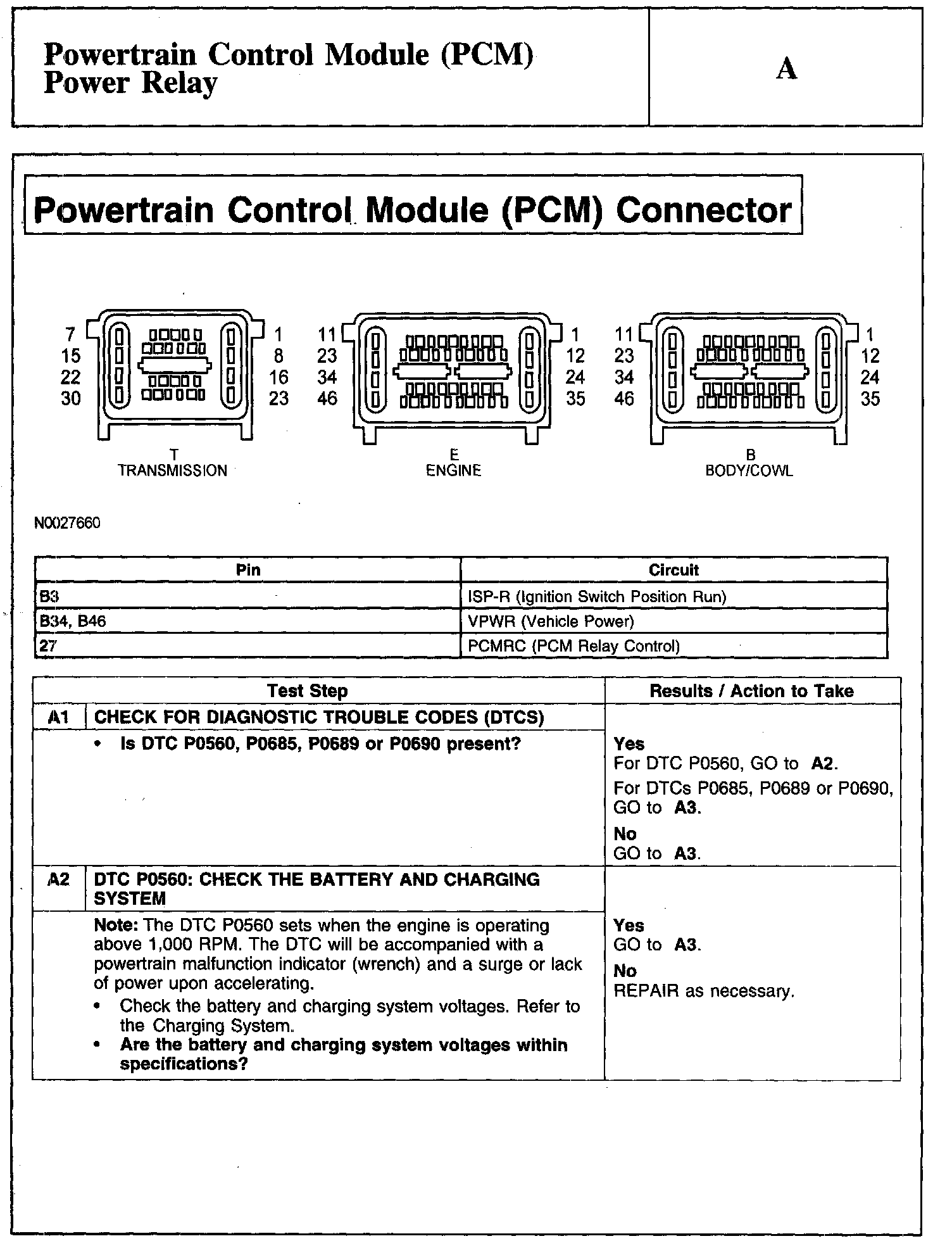

PINPOINT TEST A: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

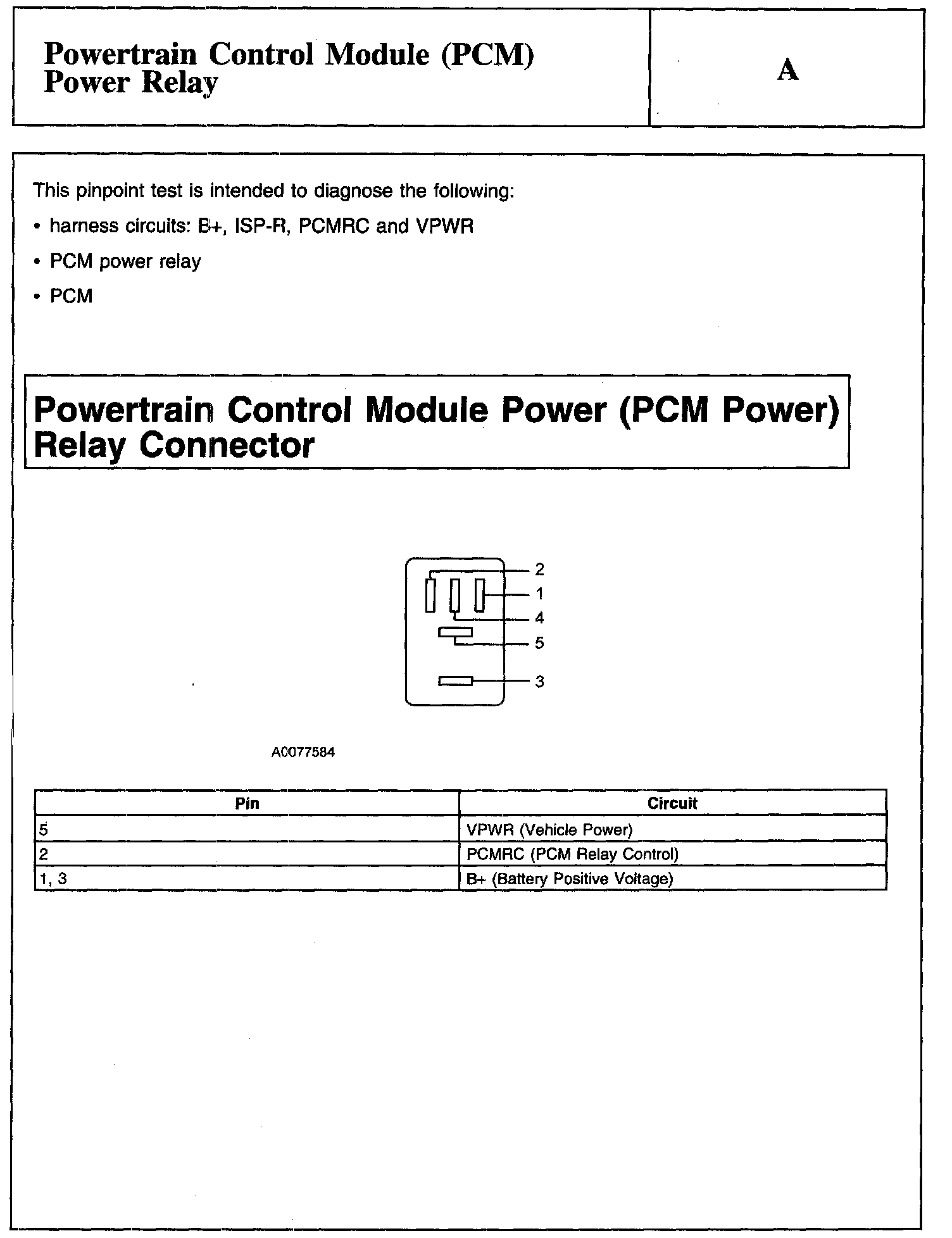

Powertrain Control Module Power (PCM Power) Relay Connector:
A1-A2:

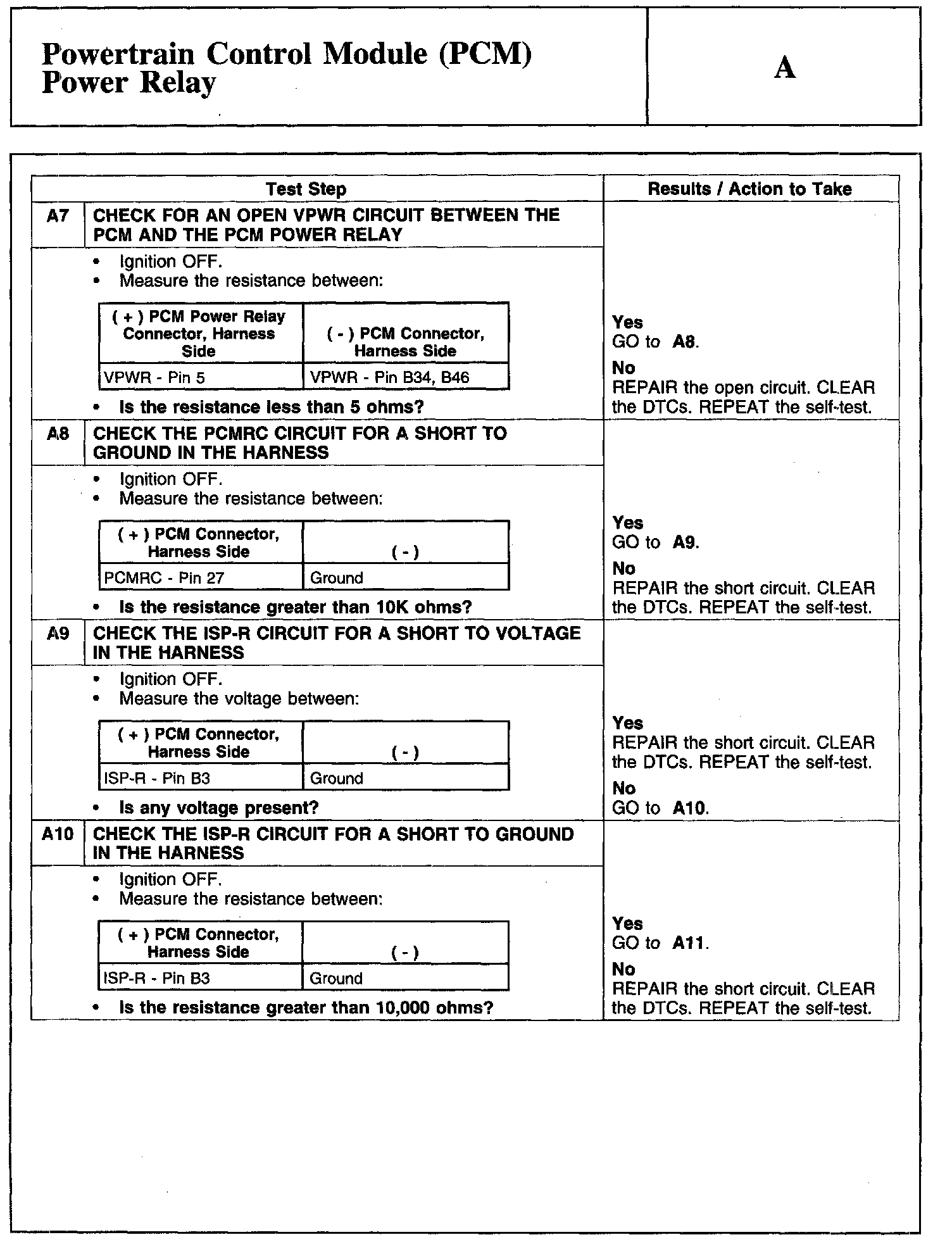

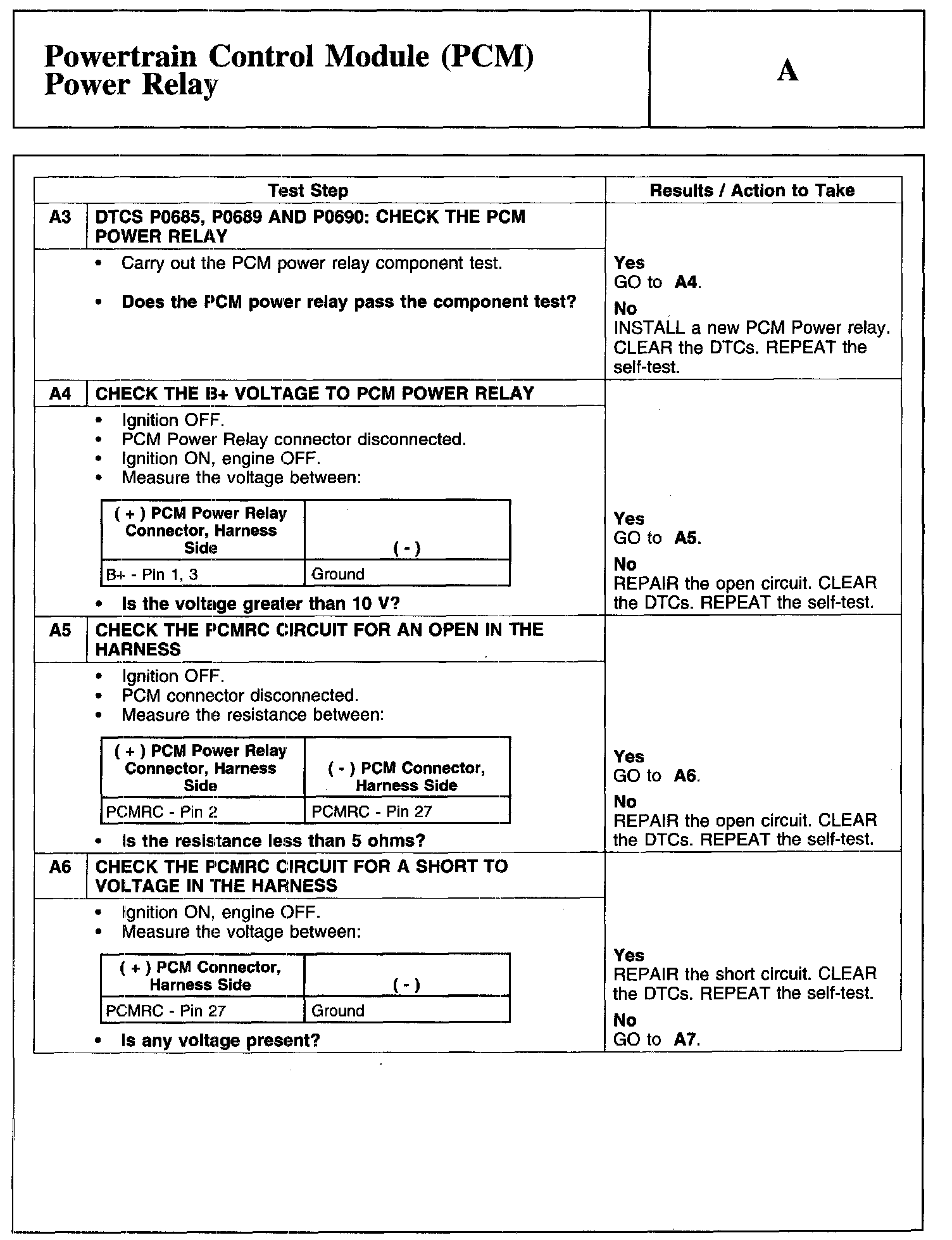

A3-A6:

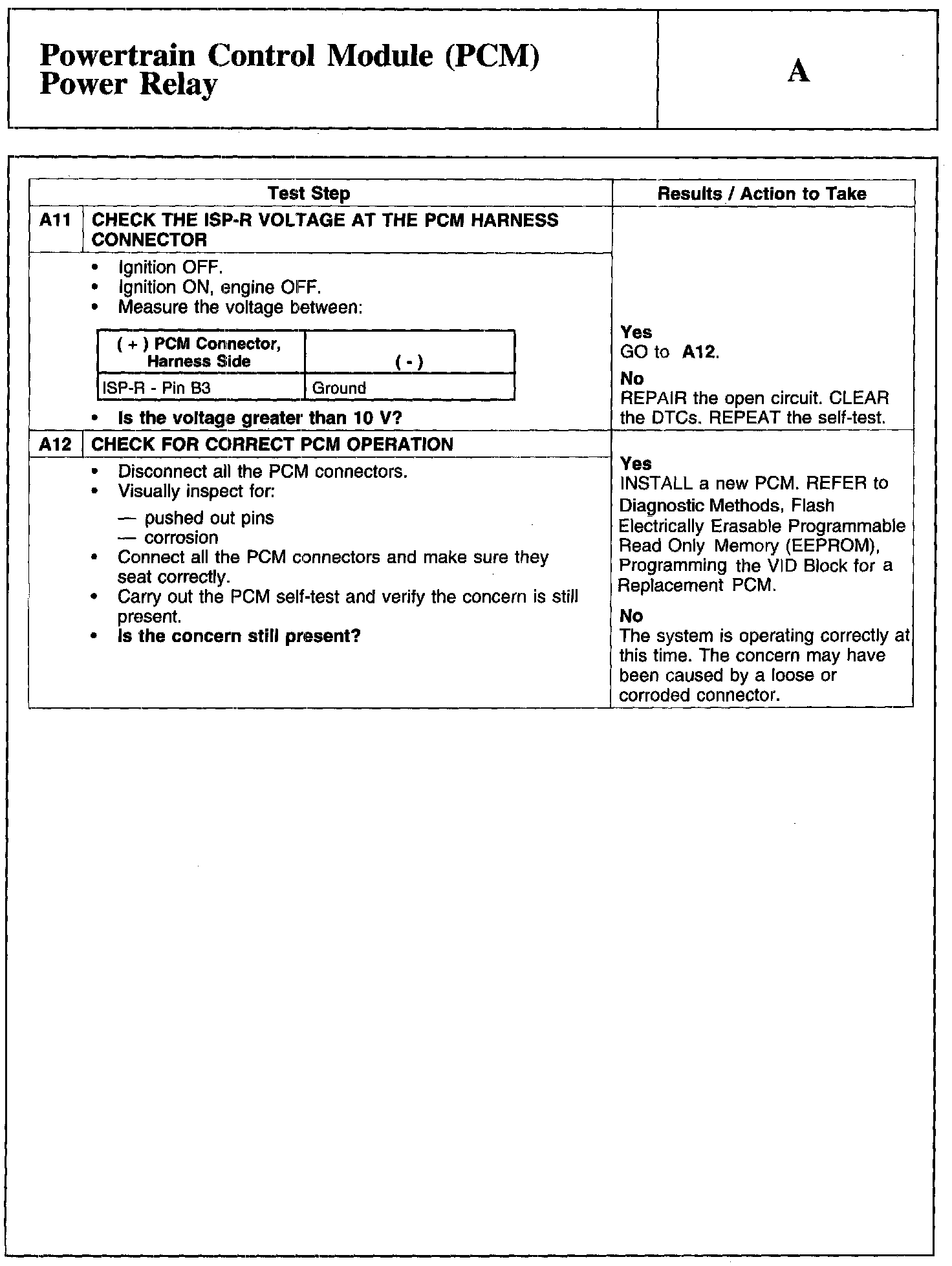

A7-A10:
A11-A12:
