Home >> Ford >> 2010 >> E 450 V8-6.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

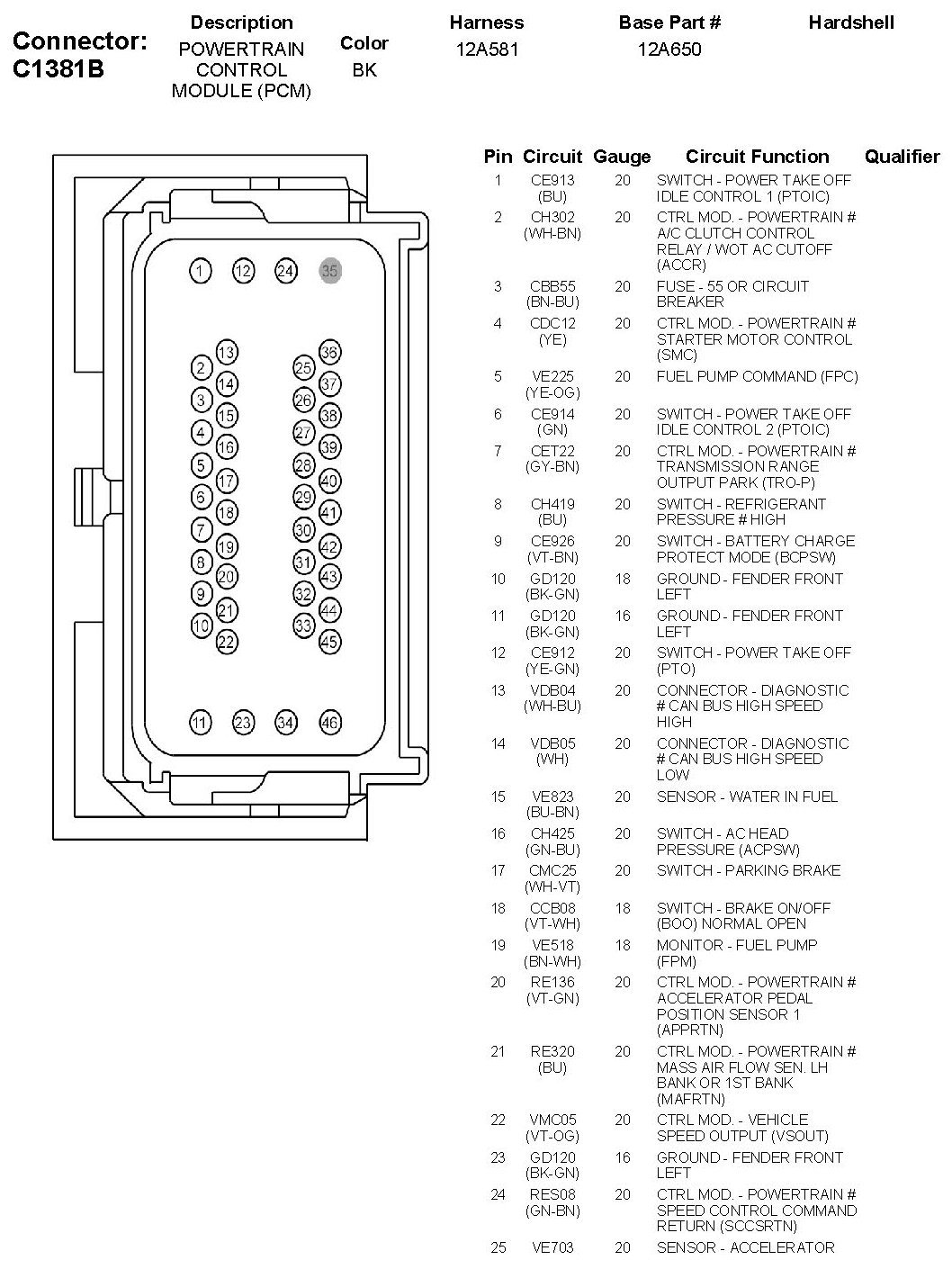

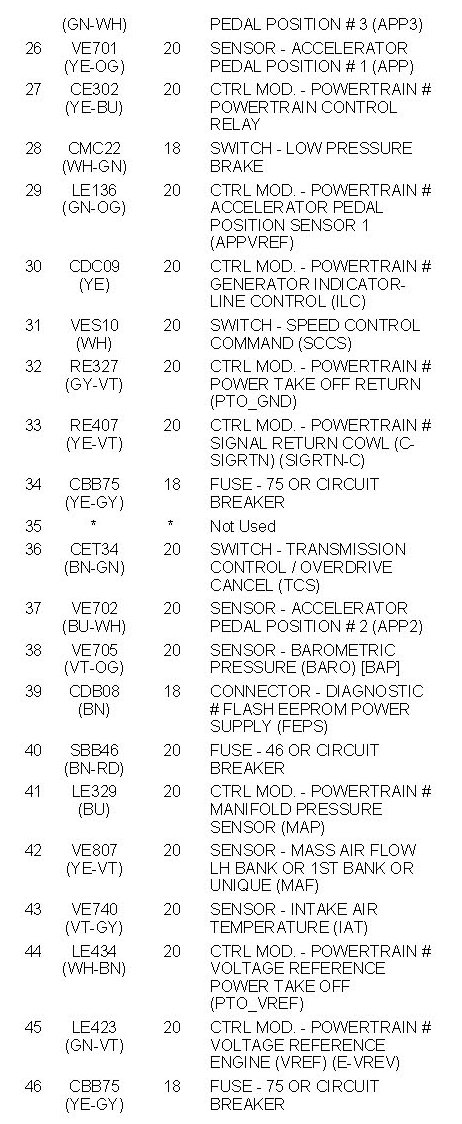

C1381B

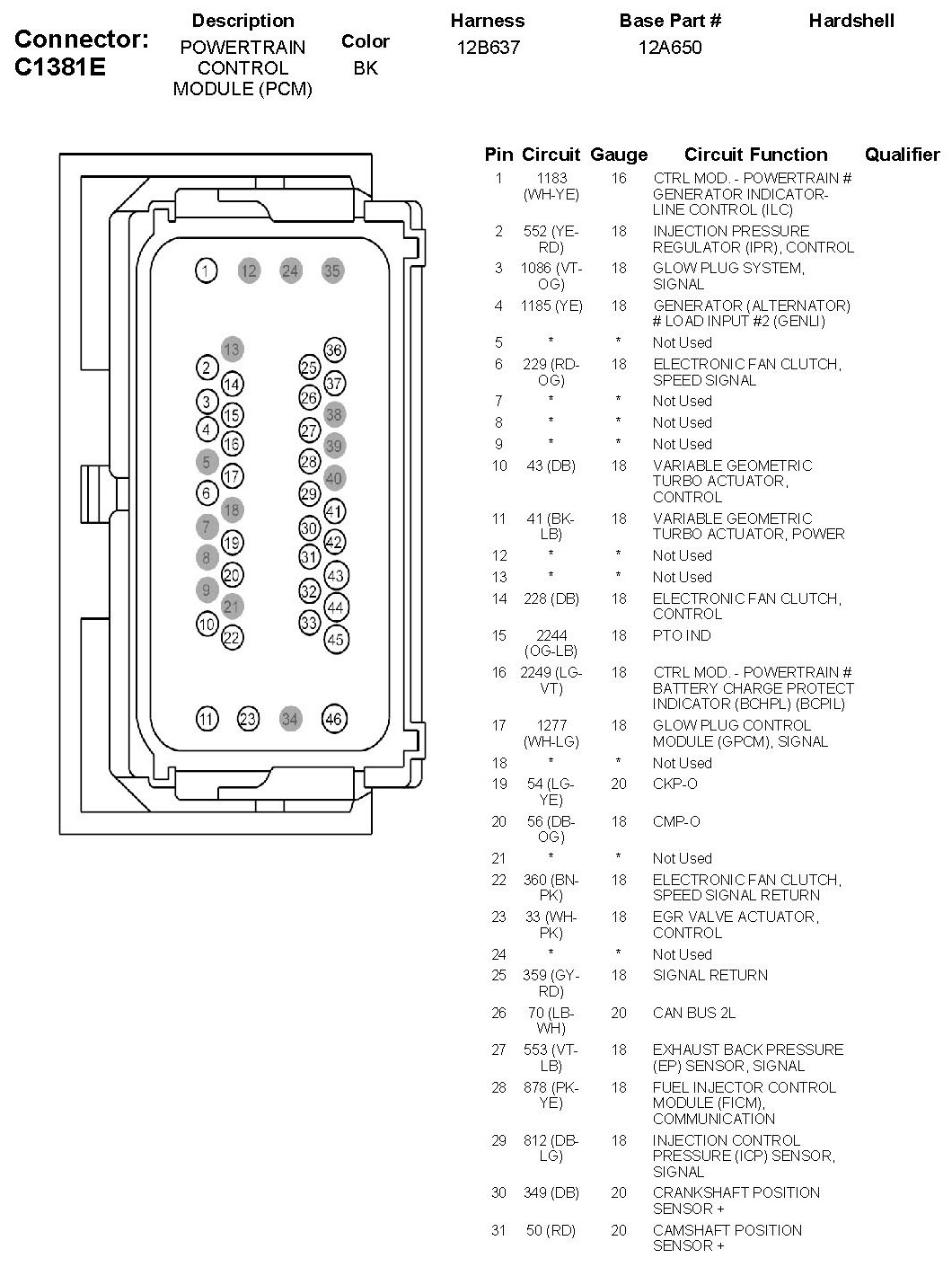

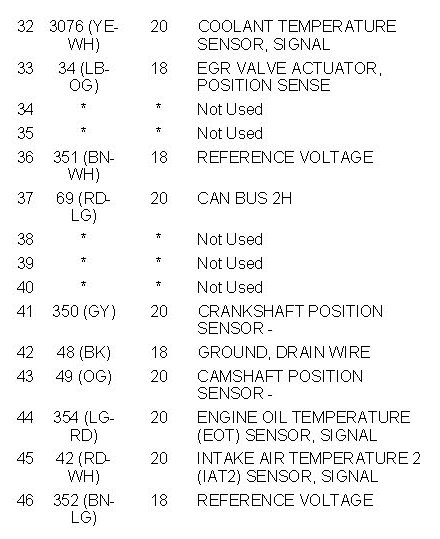

C1381E

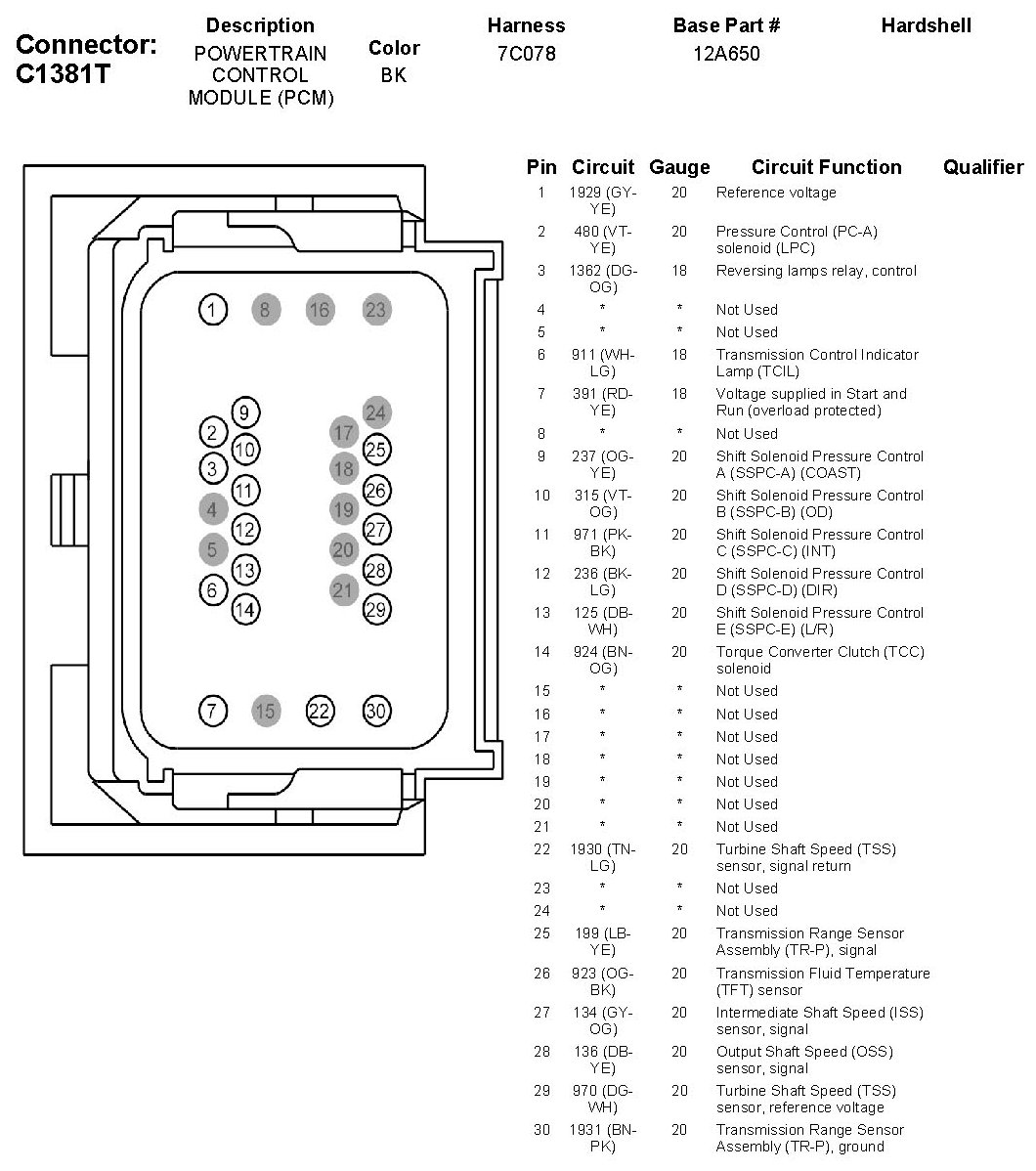

C1381T
