Home >> Ford >> 2010 >> E 350 V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Communications Control Module >> Accessory Protocol Interface Module (APIM)

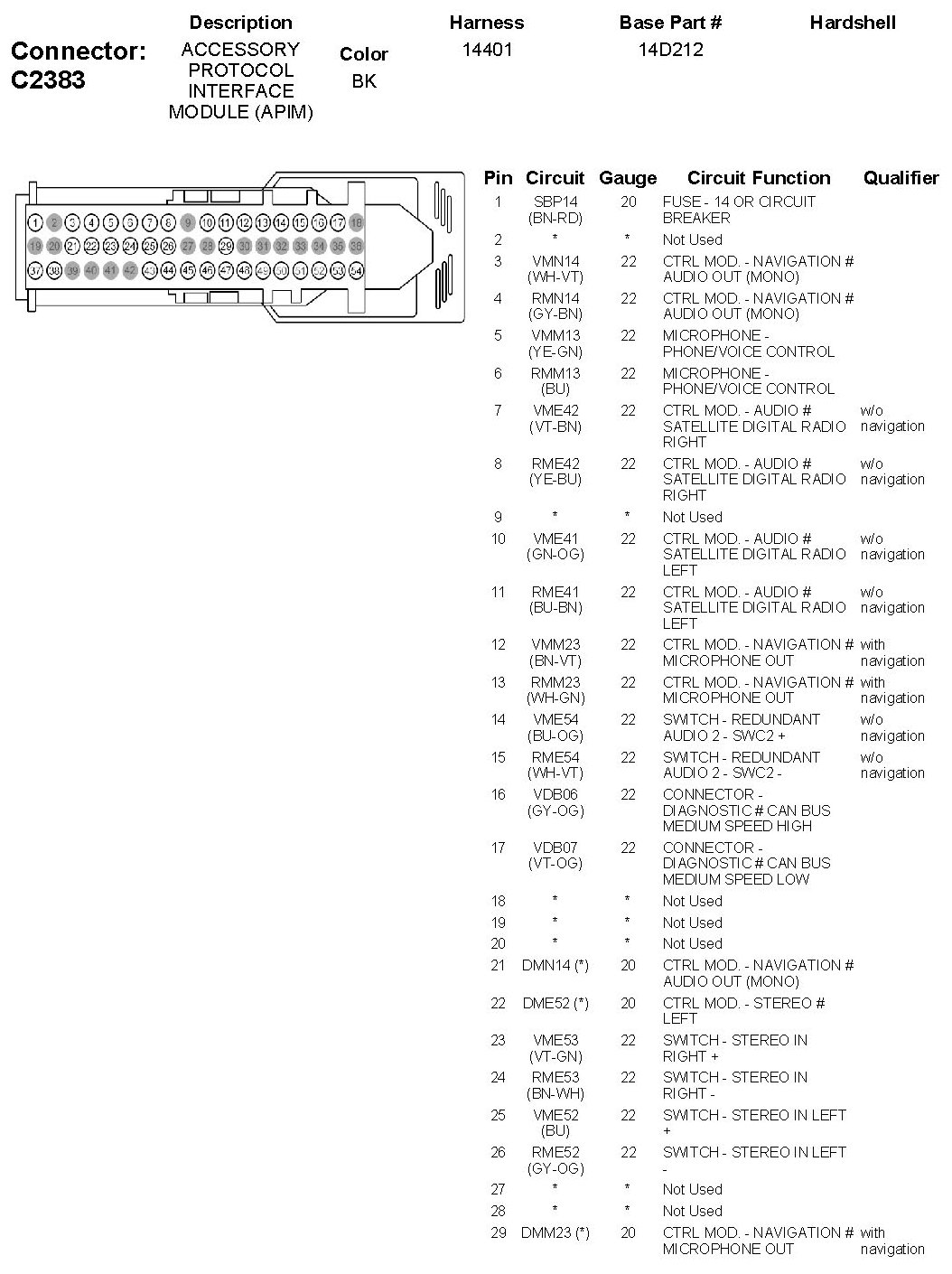

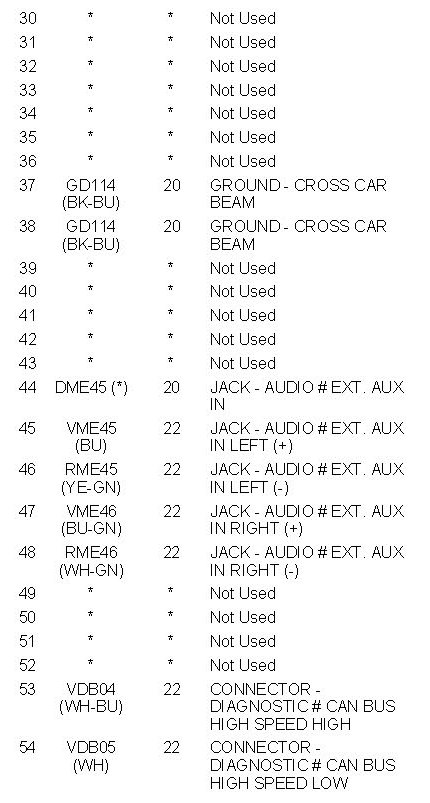

Accessory Protocol Interface Module (APIM)
