Smart Junction Box (SJB)

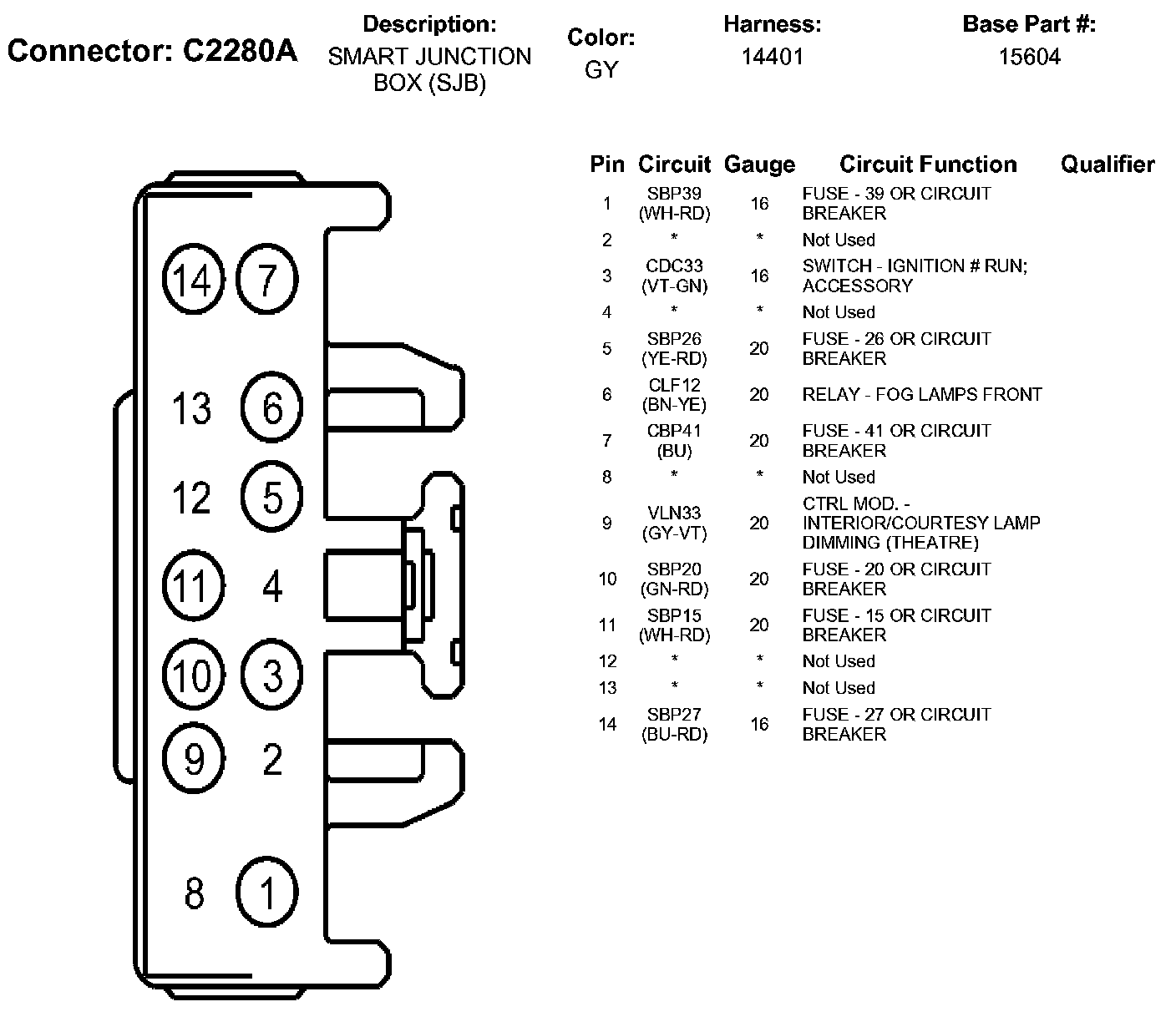

C2280A:



C2280B Part 1:



C2280B Part 2:



C2280C:



C2280D Part 1:



C2280D Part 2:

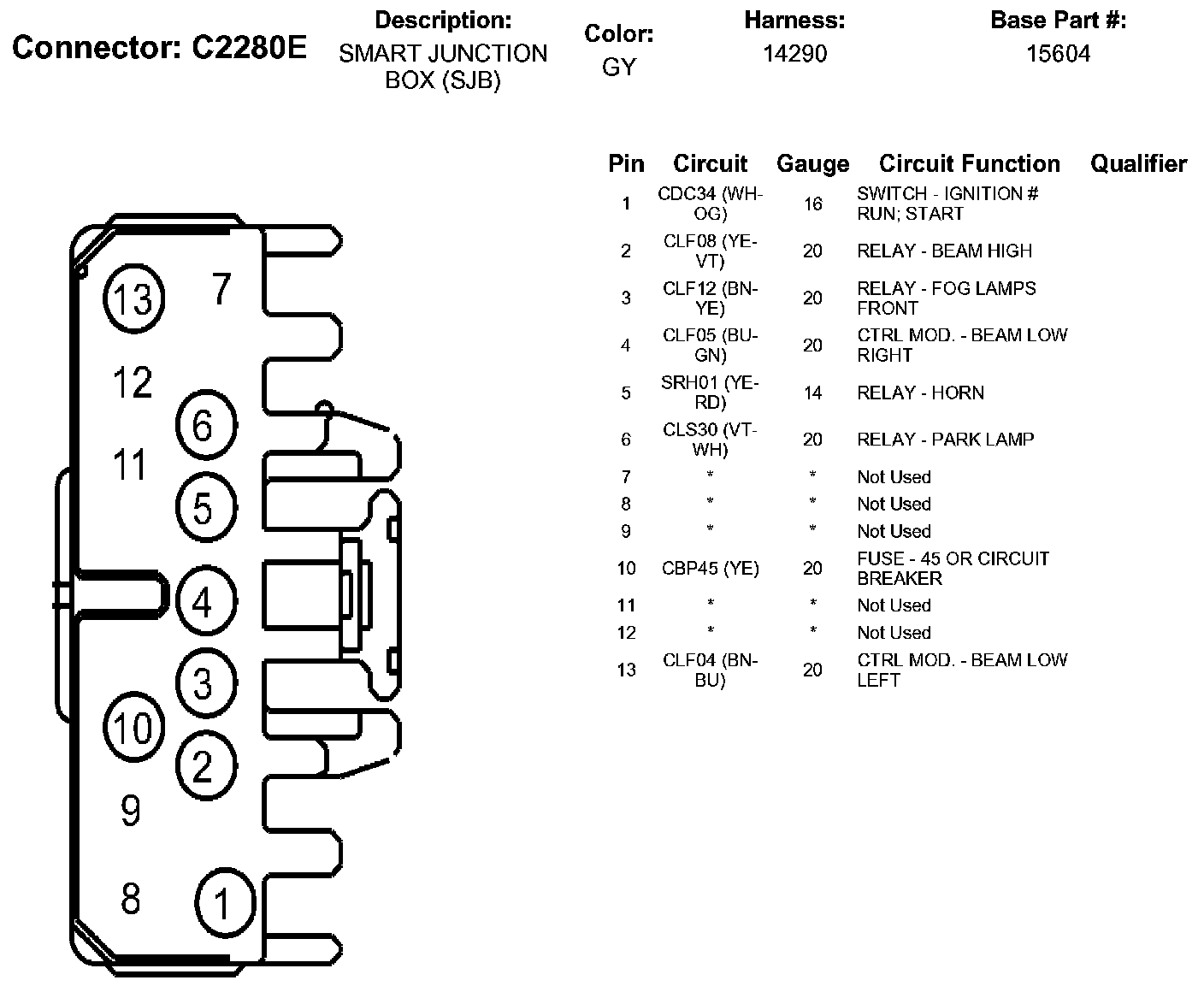

C2280E:

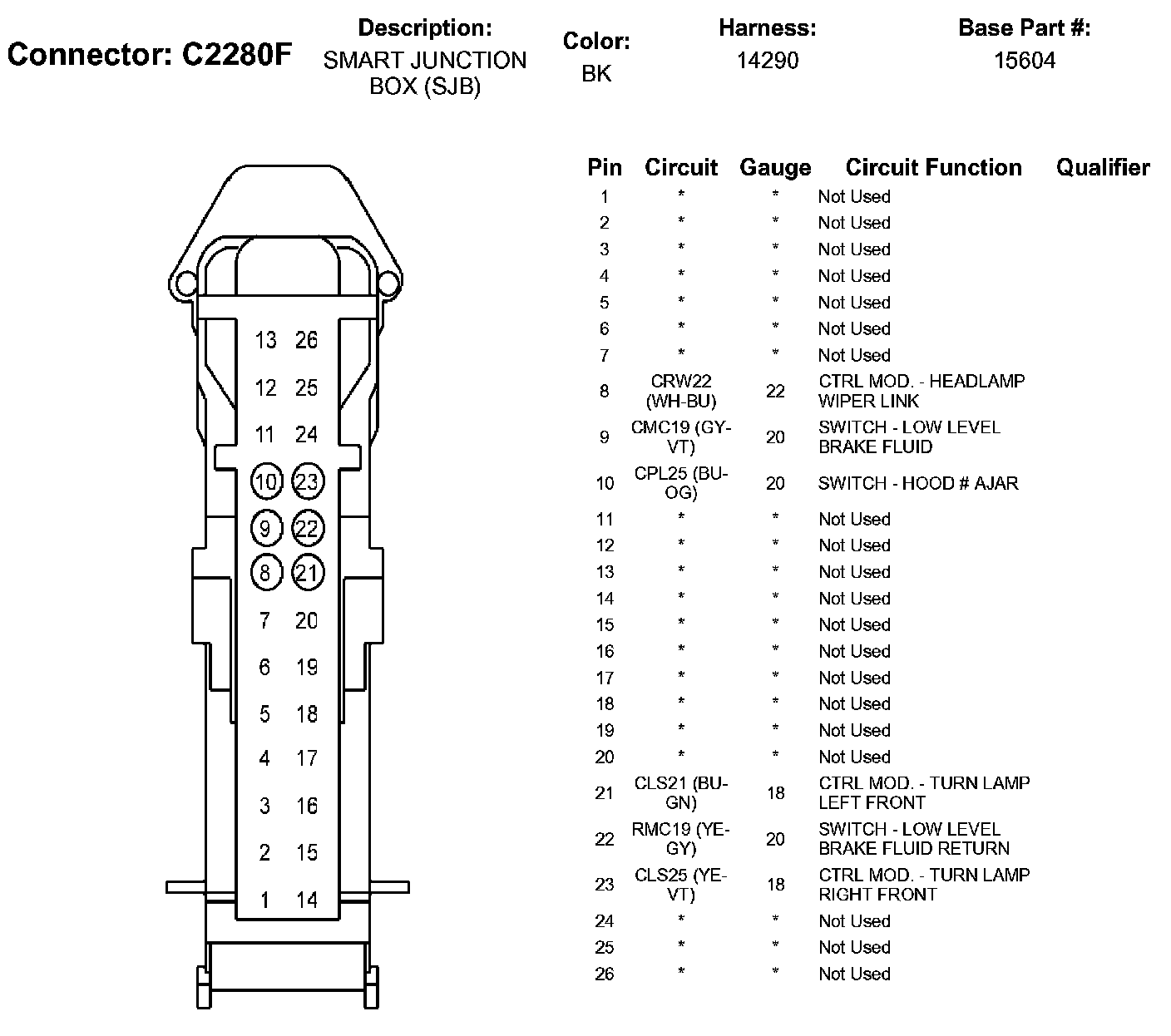

C2280F:



C2280G:
