Locations
>>
Connector Locations
Connector Locations

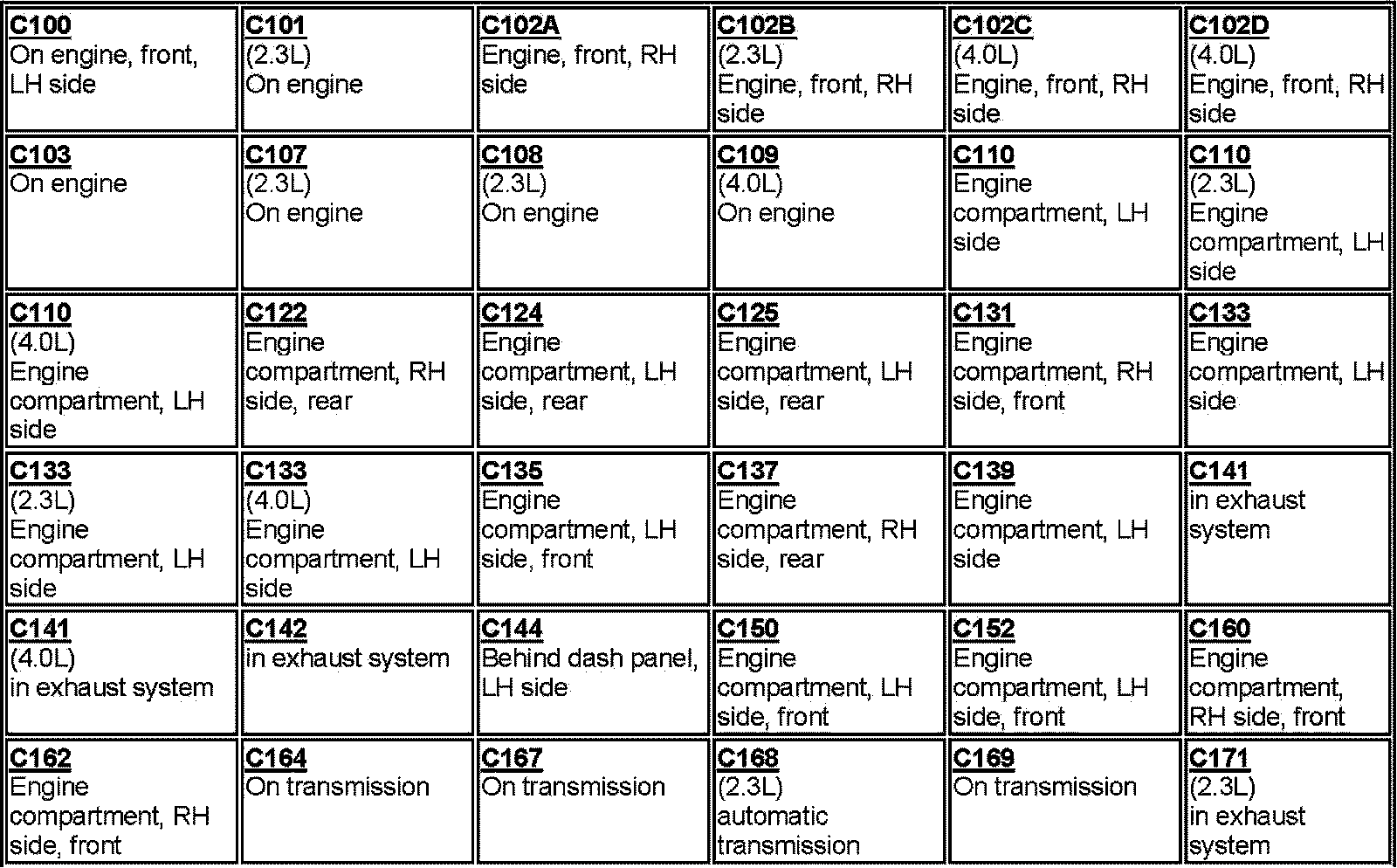

C100-C171:

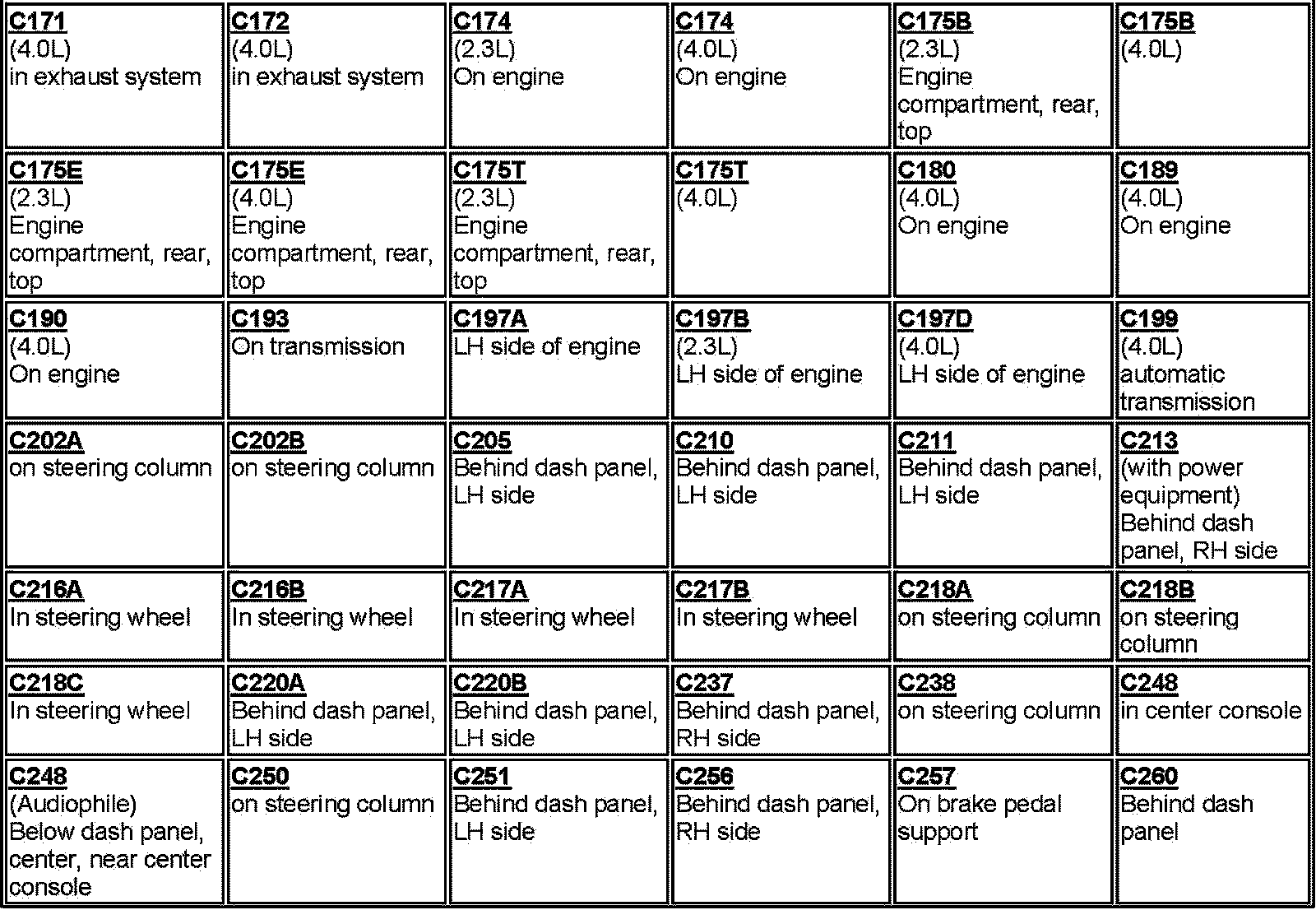

C171-C260:

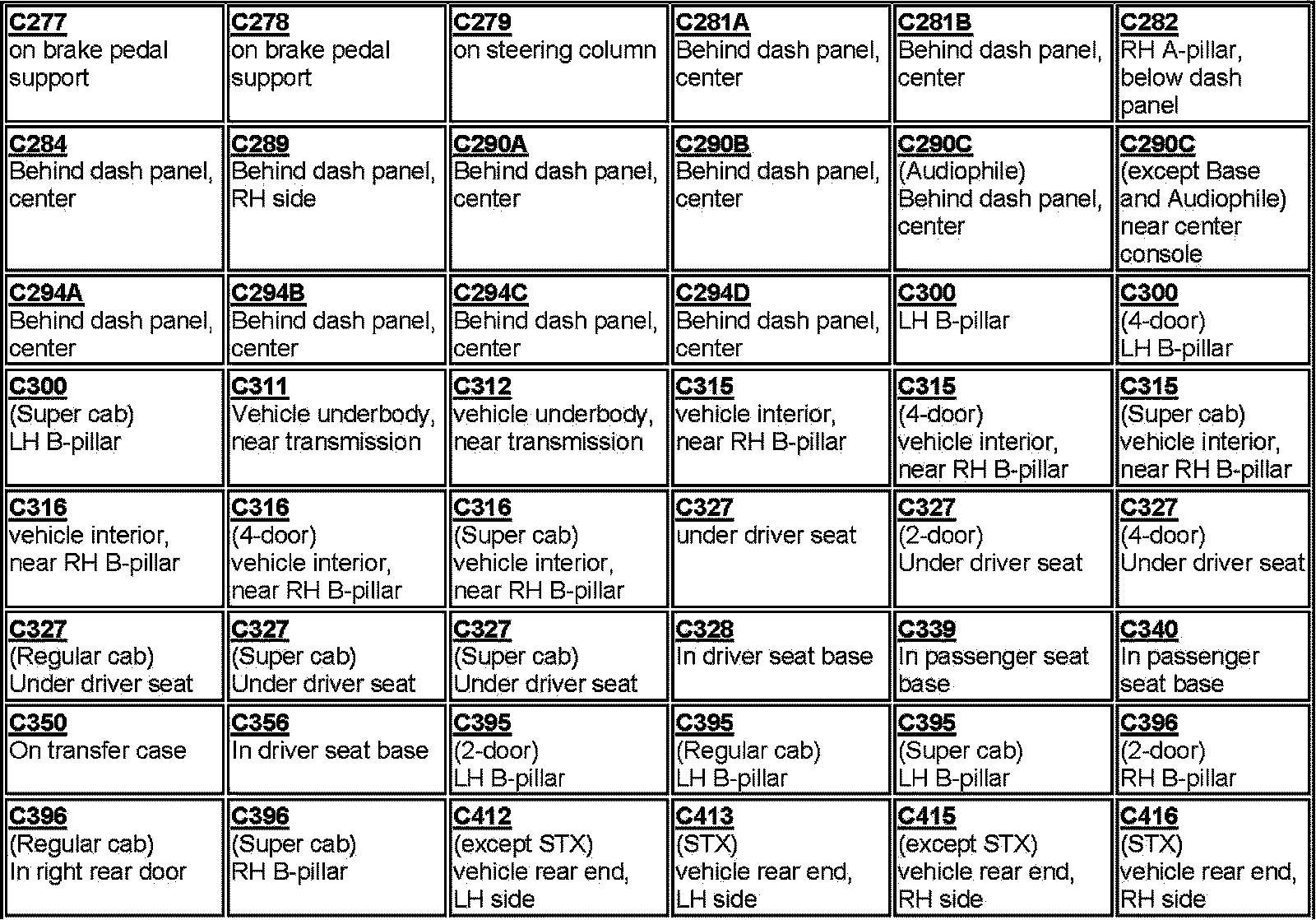

C277-C416:

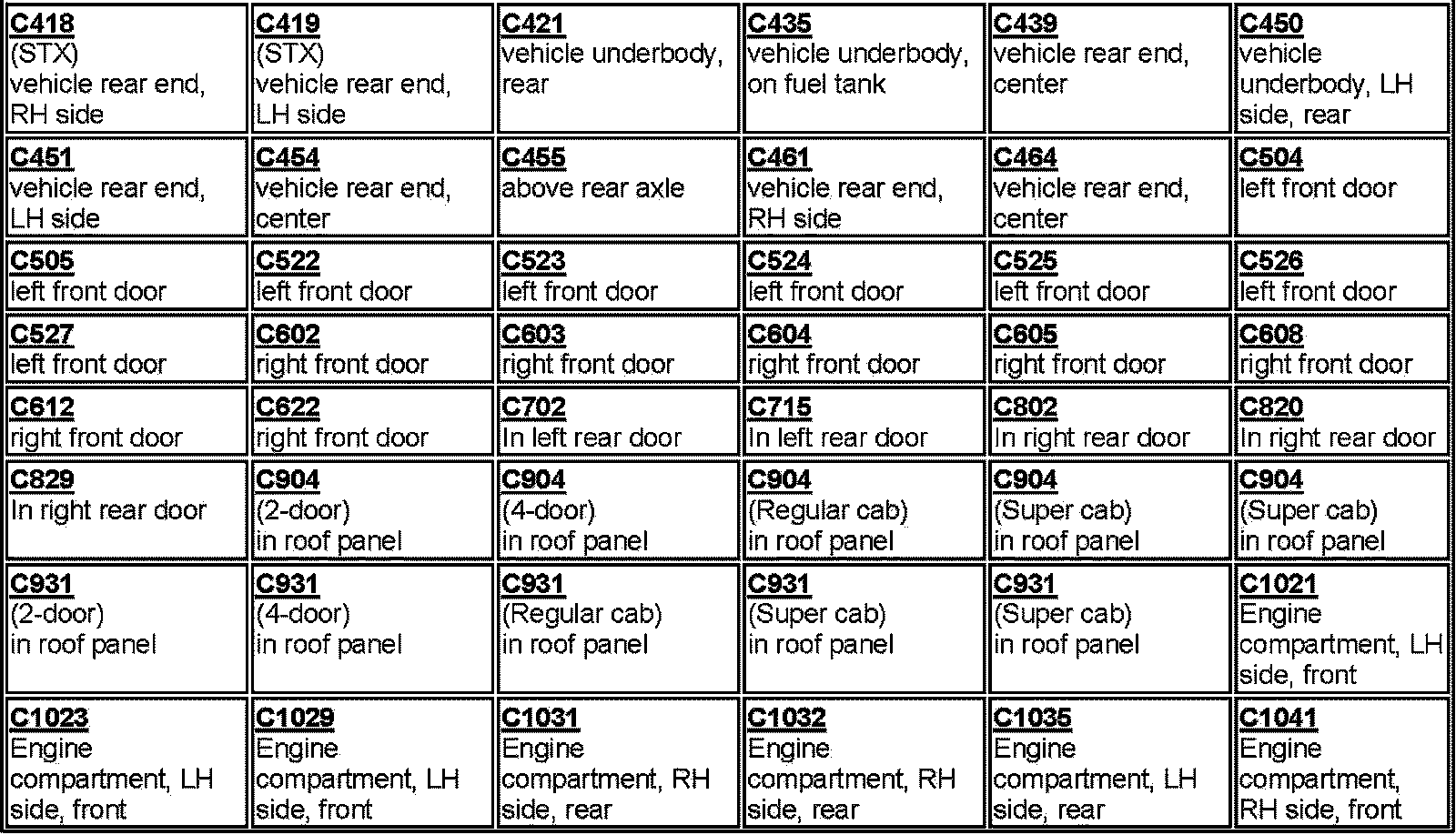

C418-C1041:

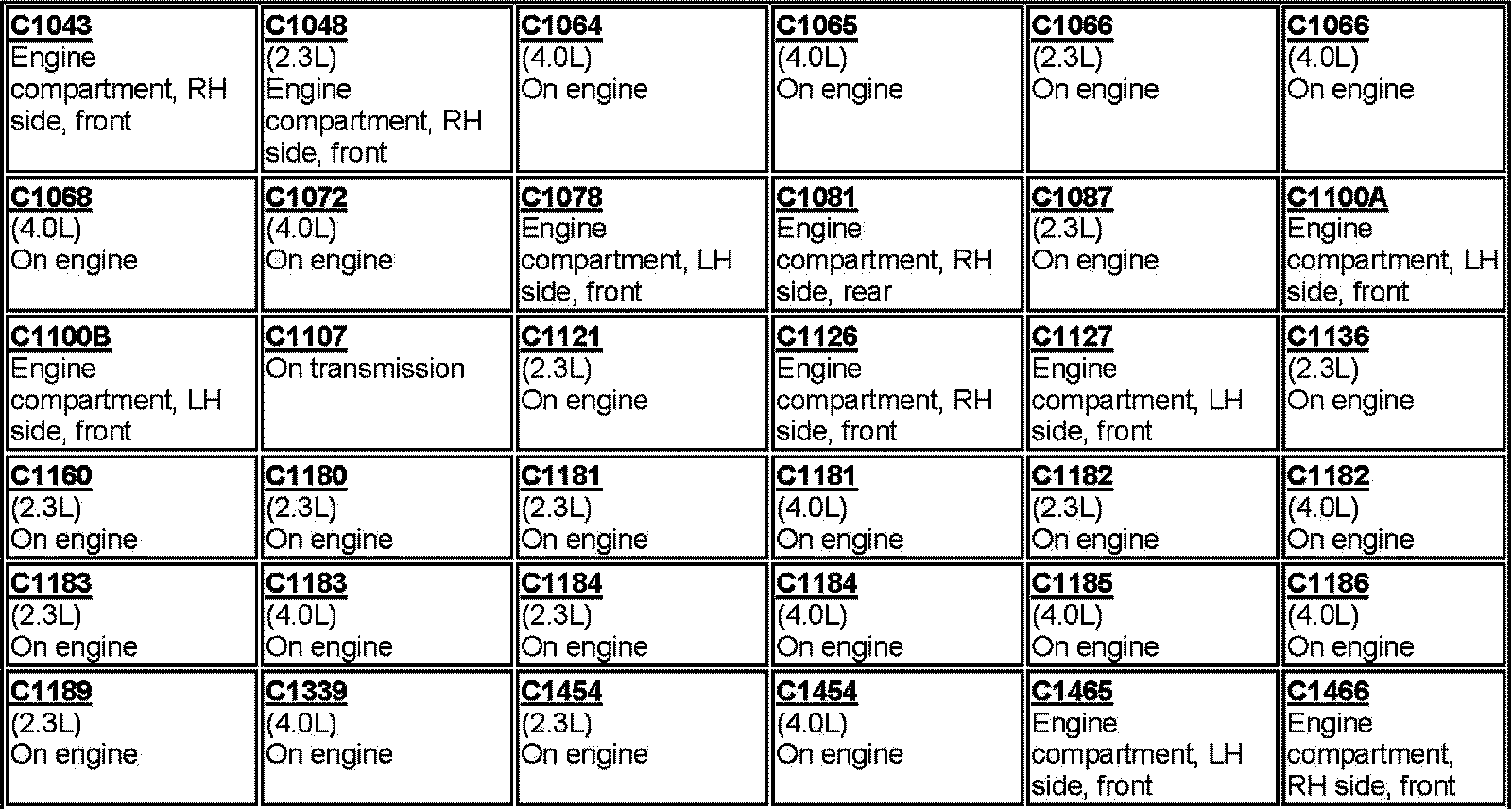

C1043-C1466:

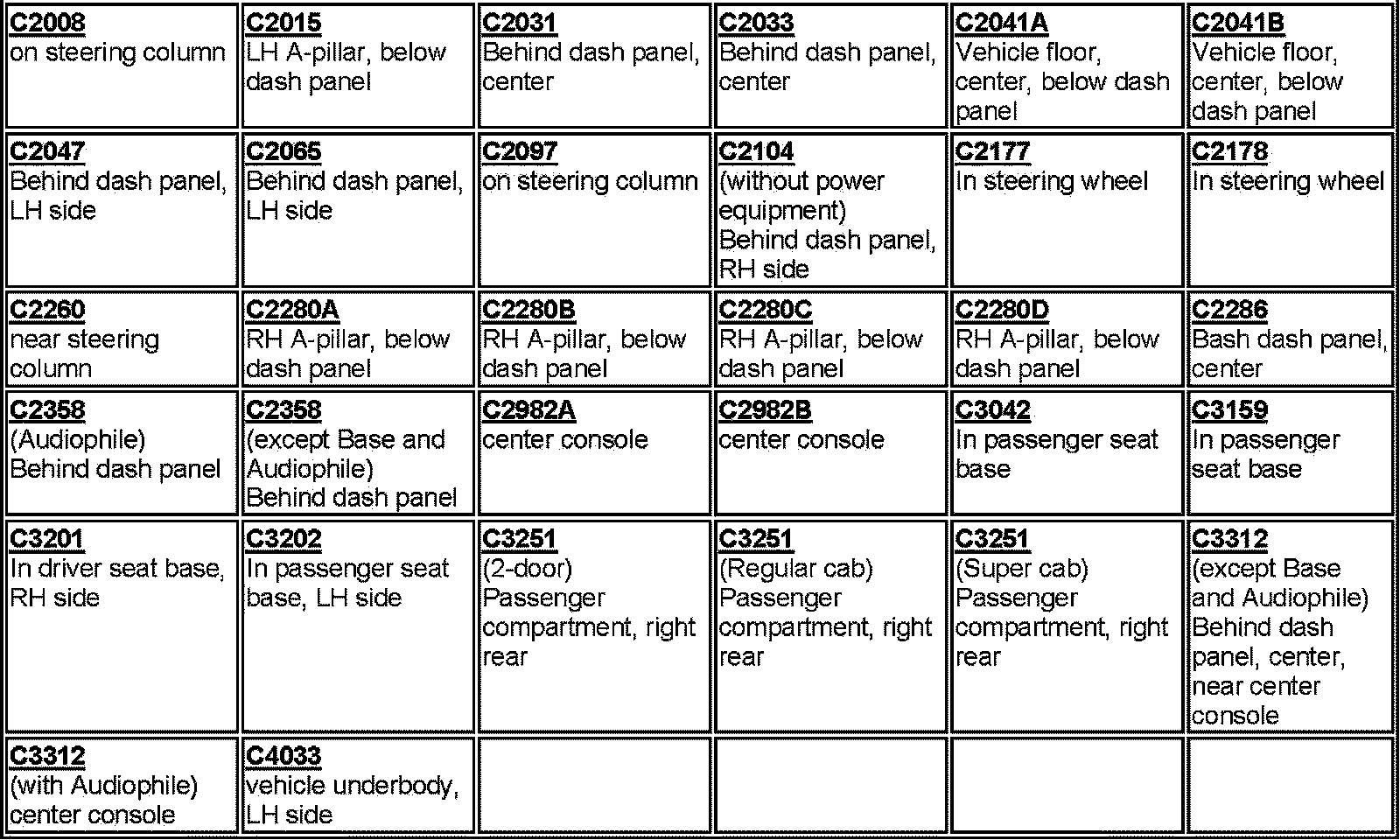

C2008-C4033:
