Home
>>
Ford
>>
2009
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

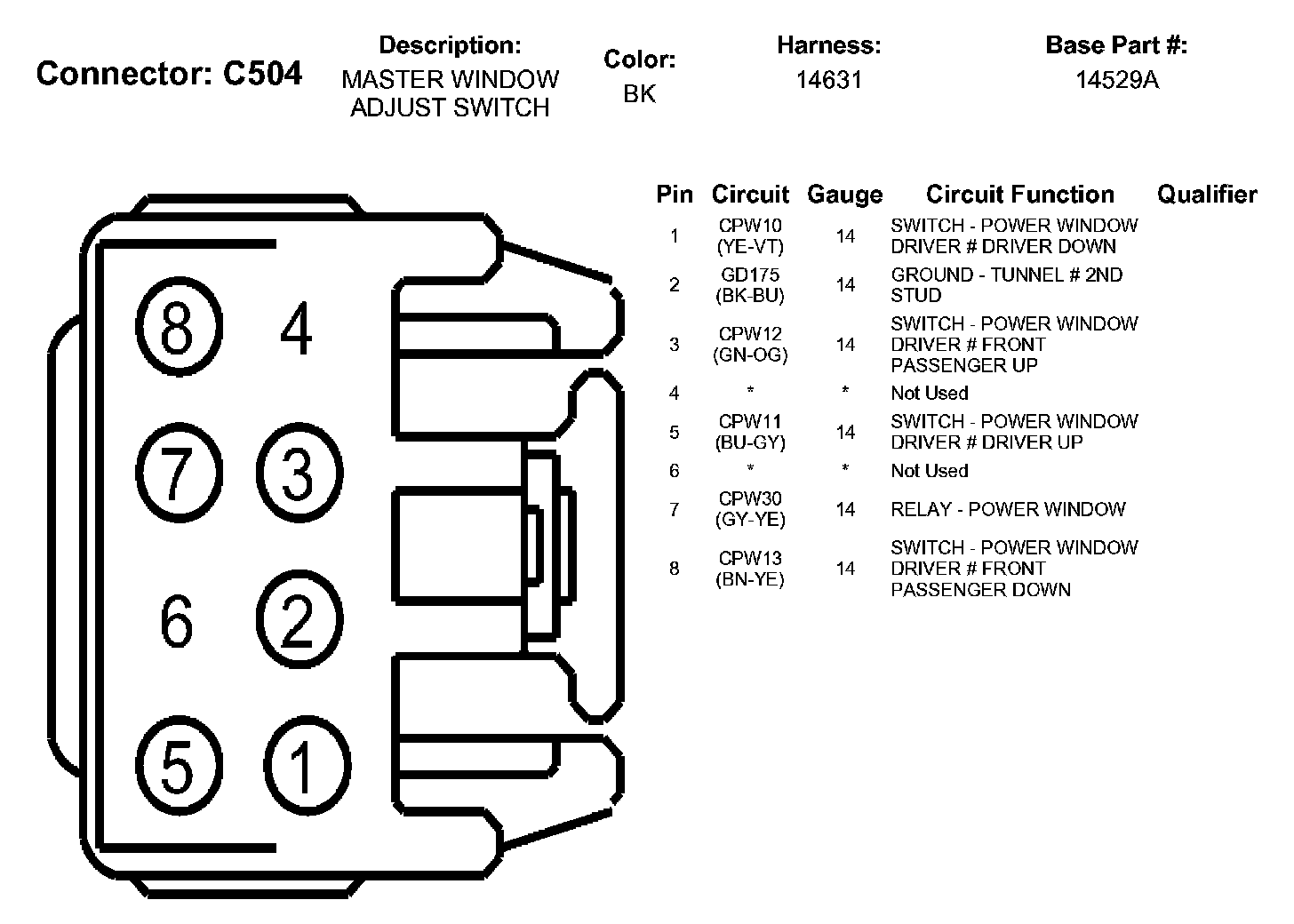

Master Window Adjust Switch
Master Window Adjust Switch
