LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2009
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Smart Junction Box (SJB)
Smart Junction Box (SJB)
Smart Junction Box (SJB)

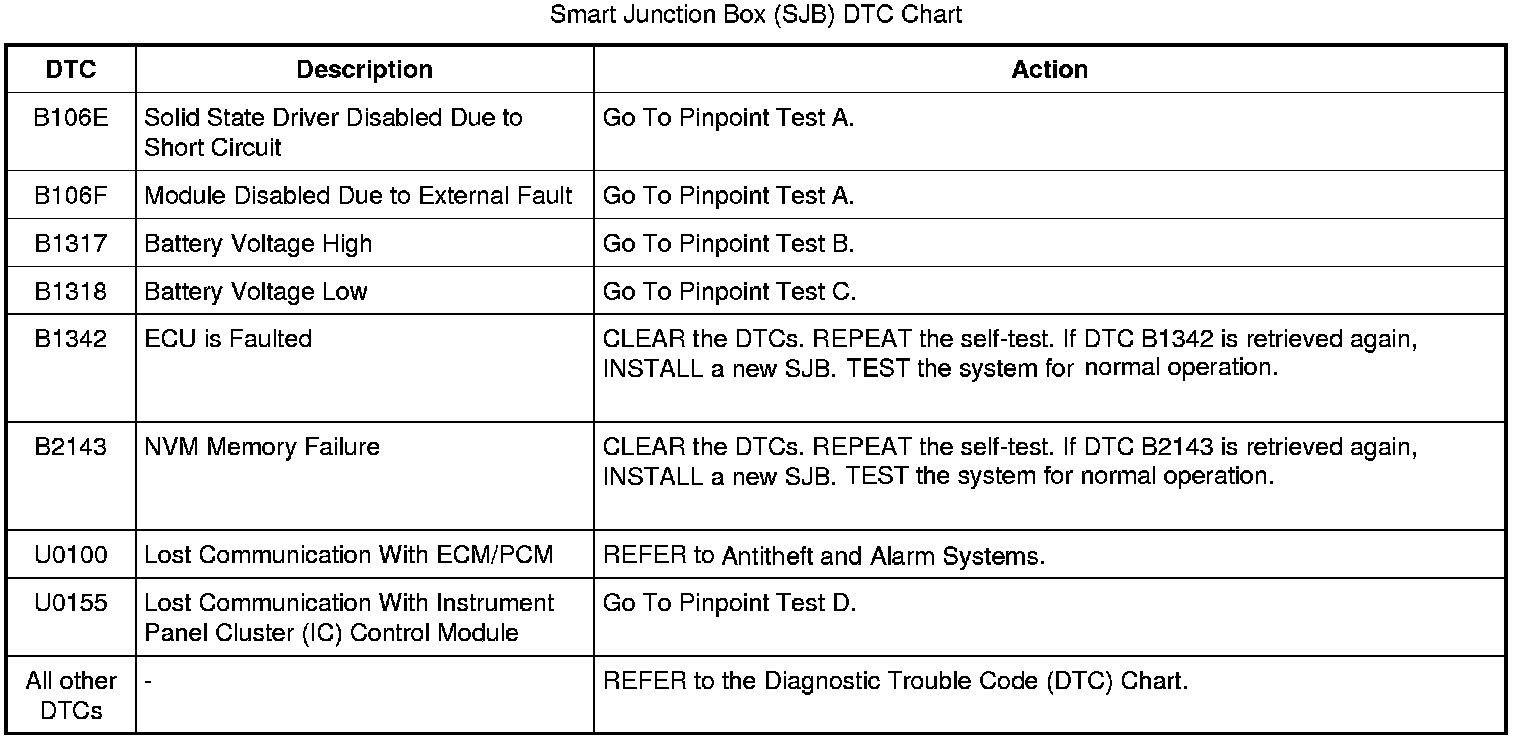

DTC Charts
B106E-B2143 / U0100-U0155:
