Wiper and Washer Systems: Service and Repair
Wiper and Washer System - Exploded View

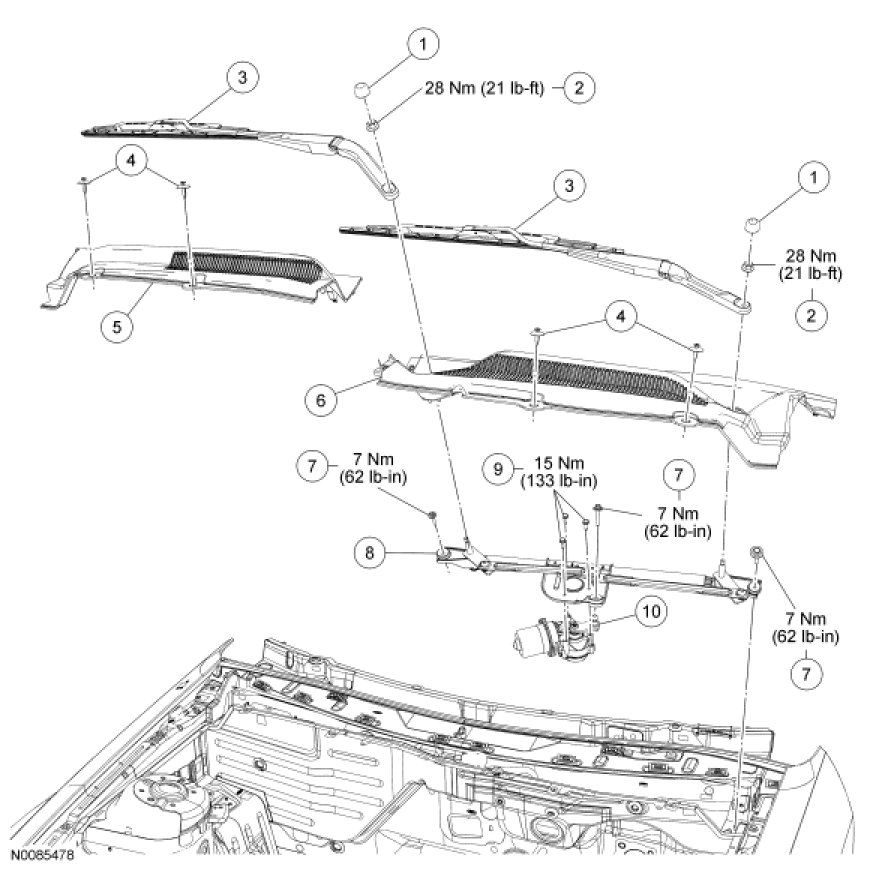

Windshield Wiper System

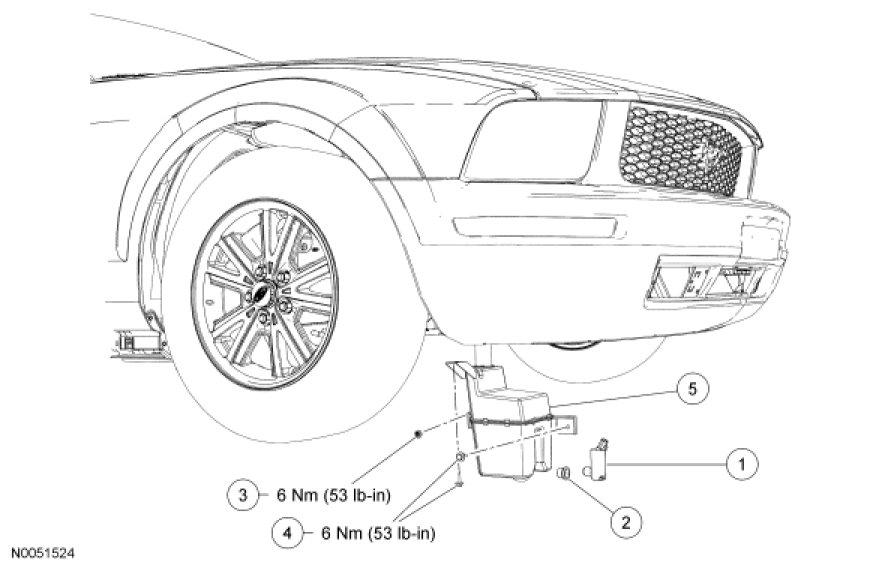

Windshield Washer Pump and Fluid Reservoir
1. For additional information, refer to the procedures.
Wiper and Washer System - Exploded View
Windshield Wiper System
Windshield Washer Pump and Fluid Reservoir
1. For additional information, refer to the procedures.
