Intake Manifold

Using new intake manifold gaskets, install the intake manifold and the 14 bolts.

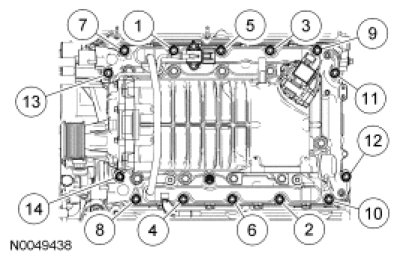

Tighten in the sequence shown to 10 Nm (89 lb-in).
