Transmission Pan

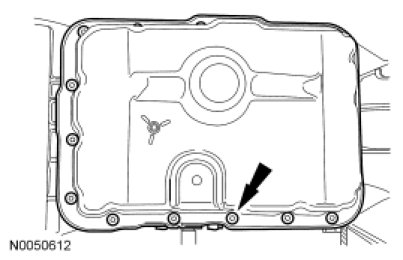

Install the transmission fluid pan and tighten the screws in a crisscross sequence.
Tighten to 11 Nm (97 lb-in).
