Flywheel Runout Check




Flywheel Runout Check

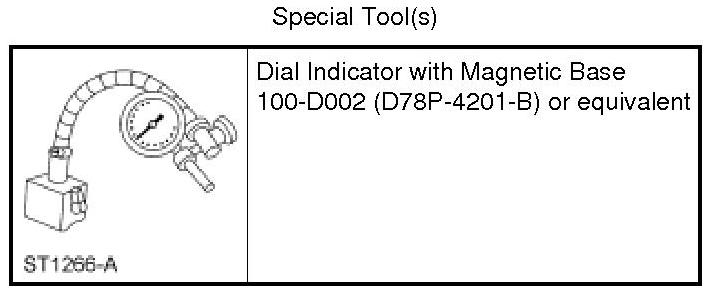

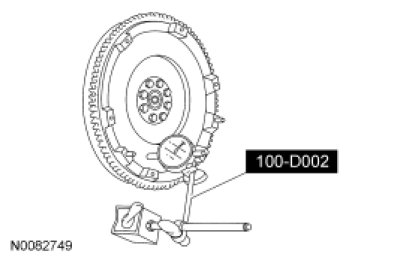

1. Mount the Dial Indicator with Magnetic Base so that the indicator contact point rides on the clutch disc contact surface.

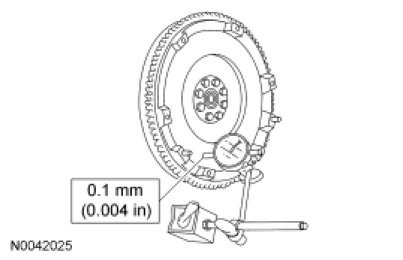

2. Rotate the flywheel and check the runout.
- If the runout exceeds the maximum allowance, install a new flywheel.
