Home >> Ford >> 2009 >> Fusion AWD L4-2.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Transmission Pan Torque and Sequence

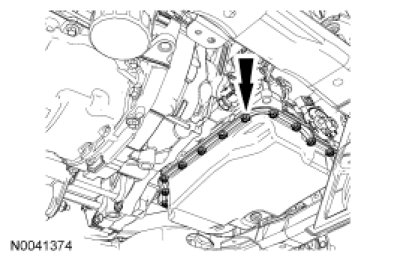

Transmission Pan Torque and Sequence

Install the transmission fluid pan.
Tighten to 7 Nm (62 lb-in).
