DF - Vehicle Speed Circuit (VSC) Check

PINPOINT TEST DF: VEHICLE SPEED CIRCUIT (VSC) CHECK

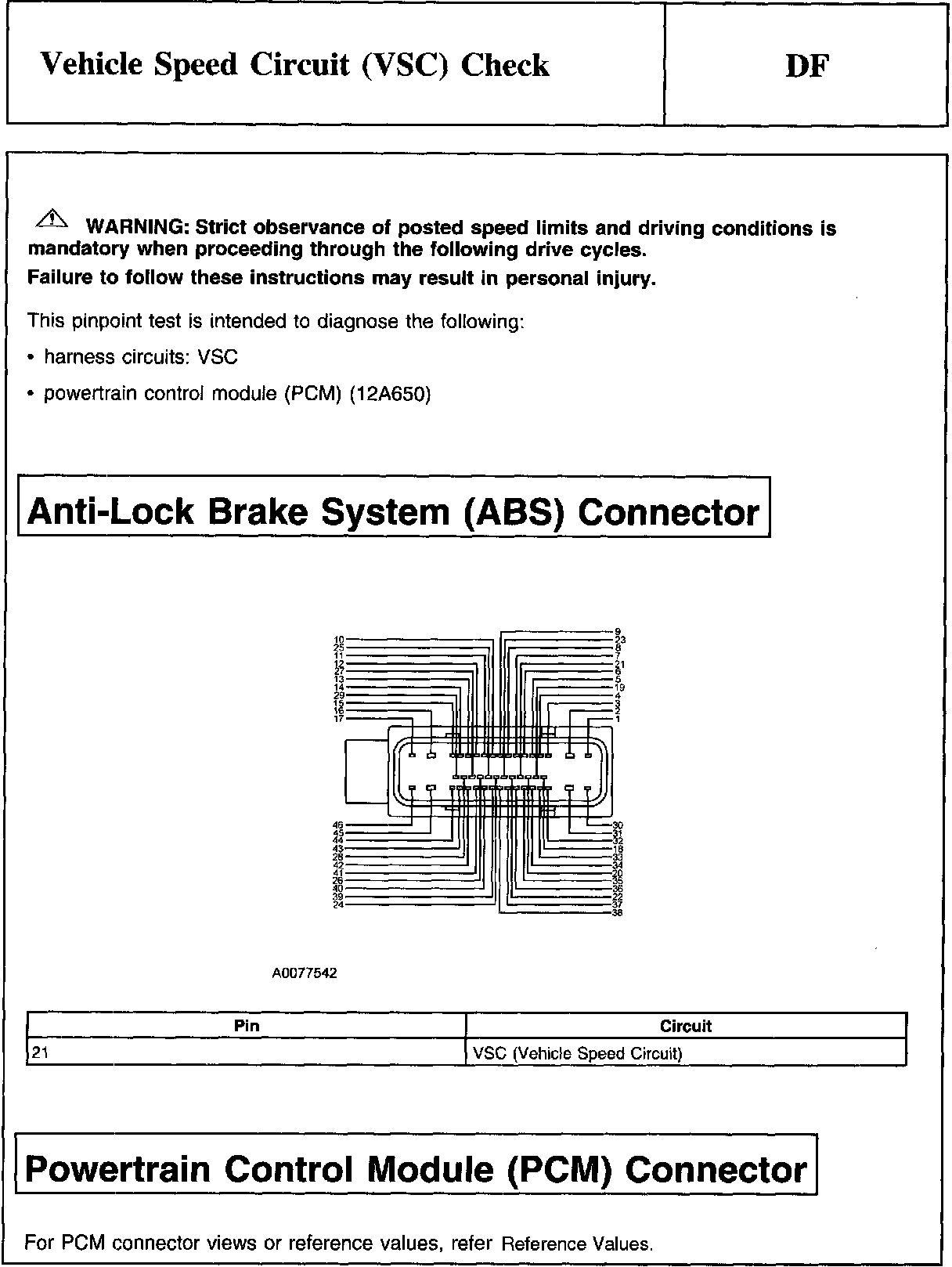

WARNING And Anti-Lock Brake System And Powertrain Control Module Connectors:

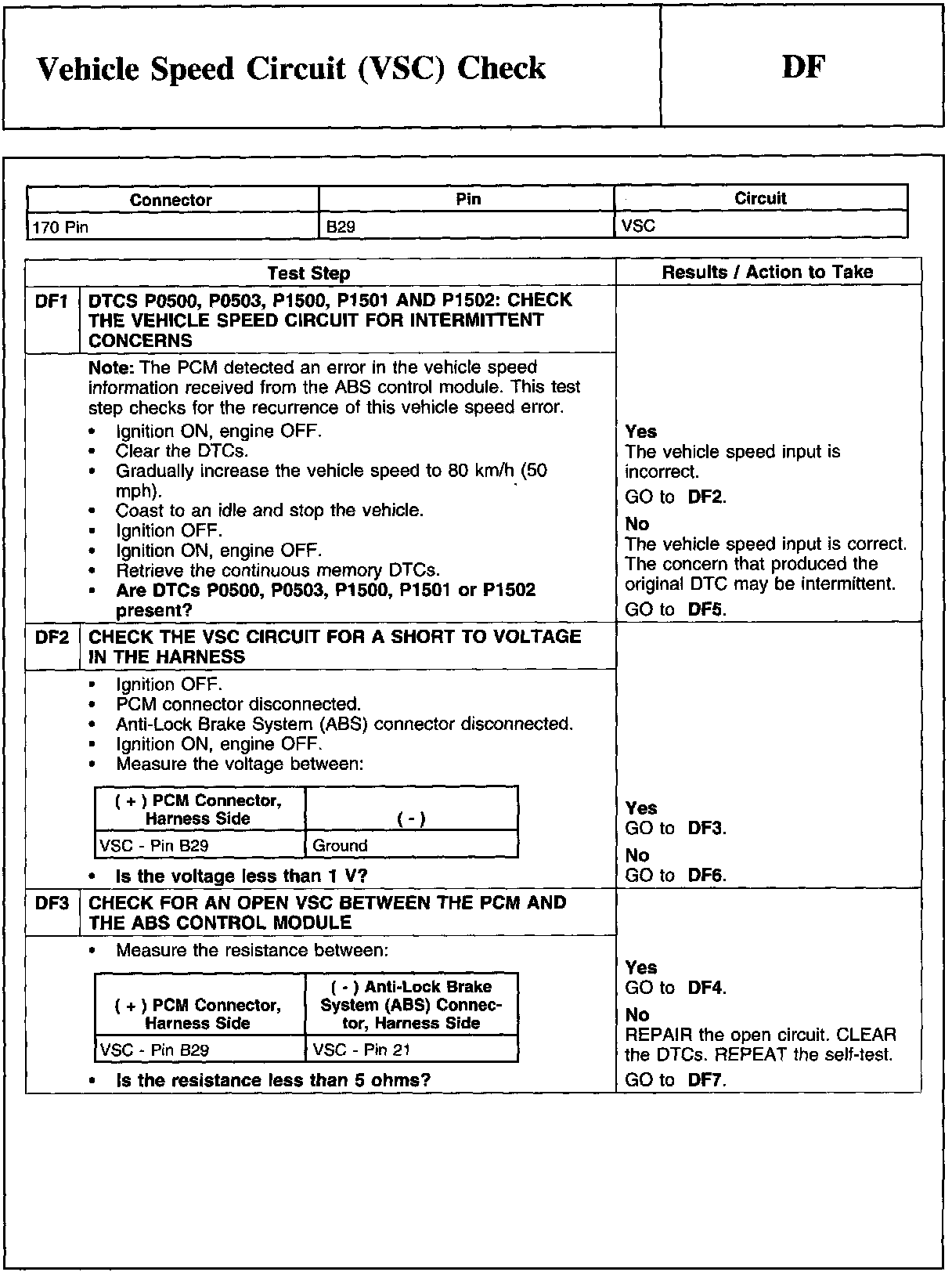

DF1-DF3:

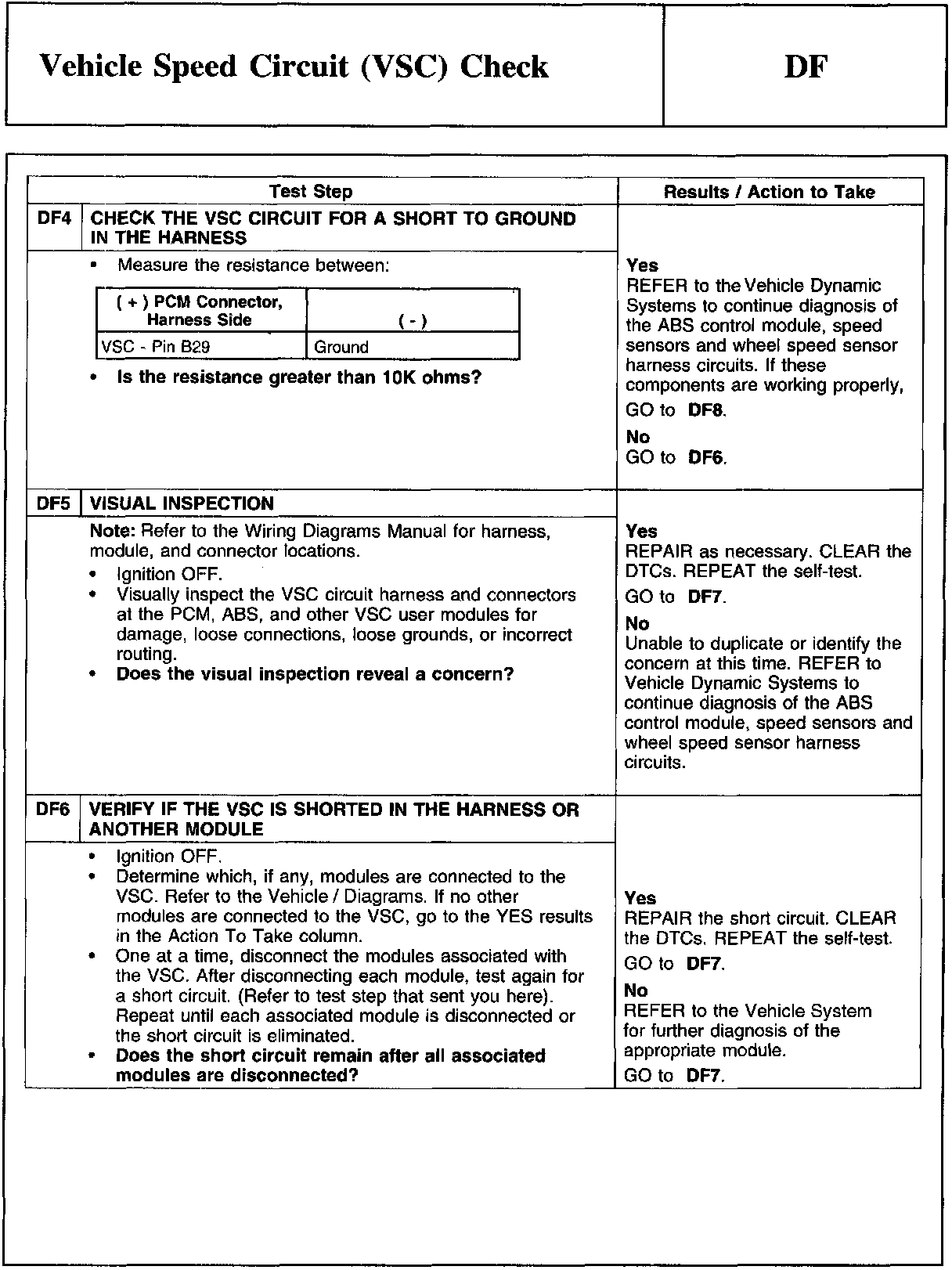

DF4-DF6:

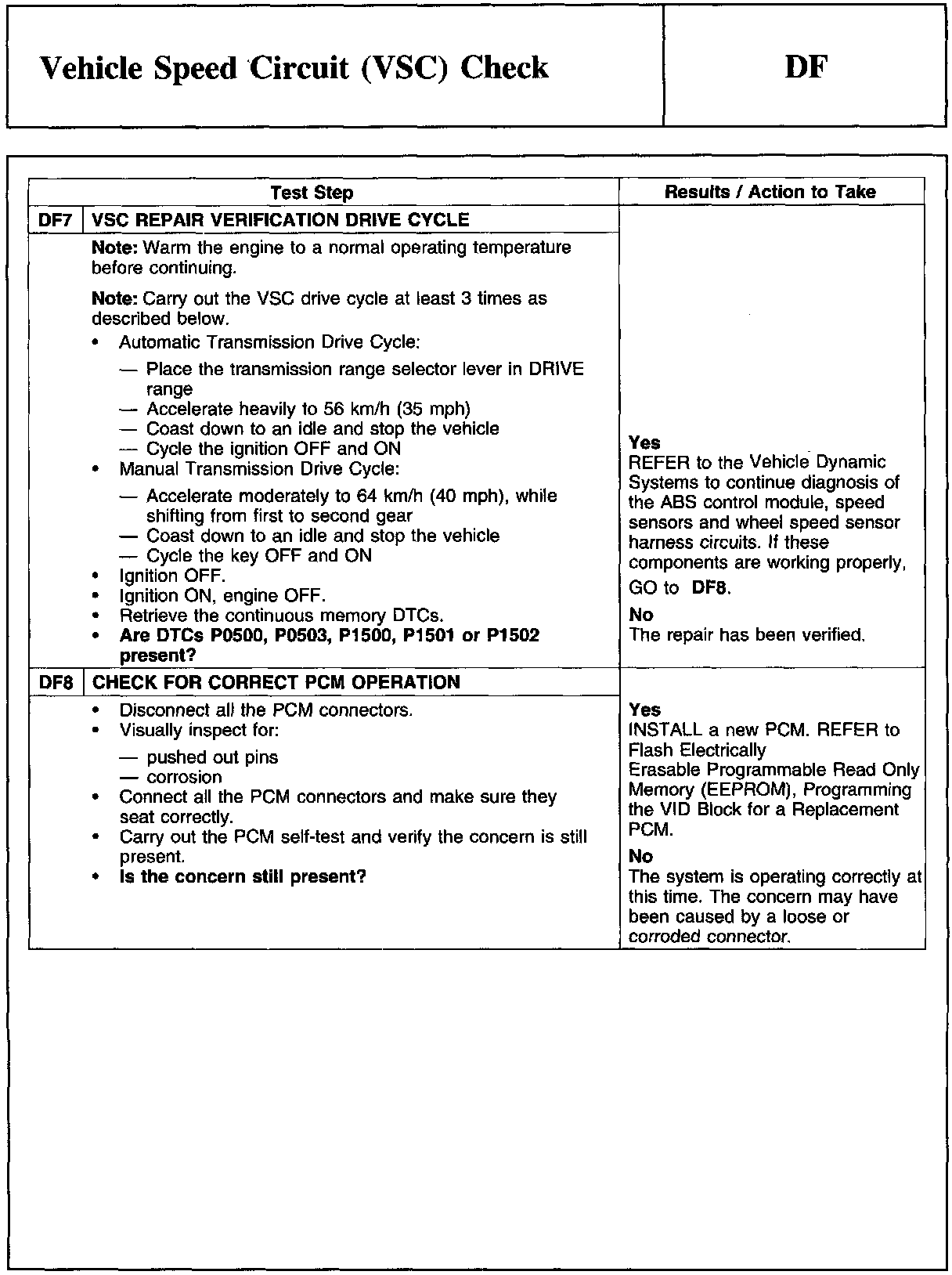

DF7-DF8:
