Harness Overview
Harness Overview

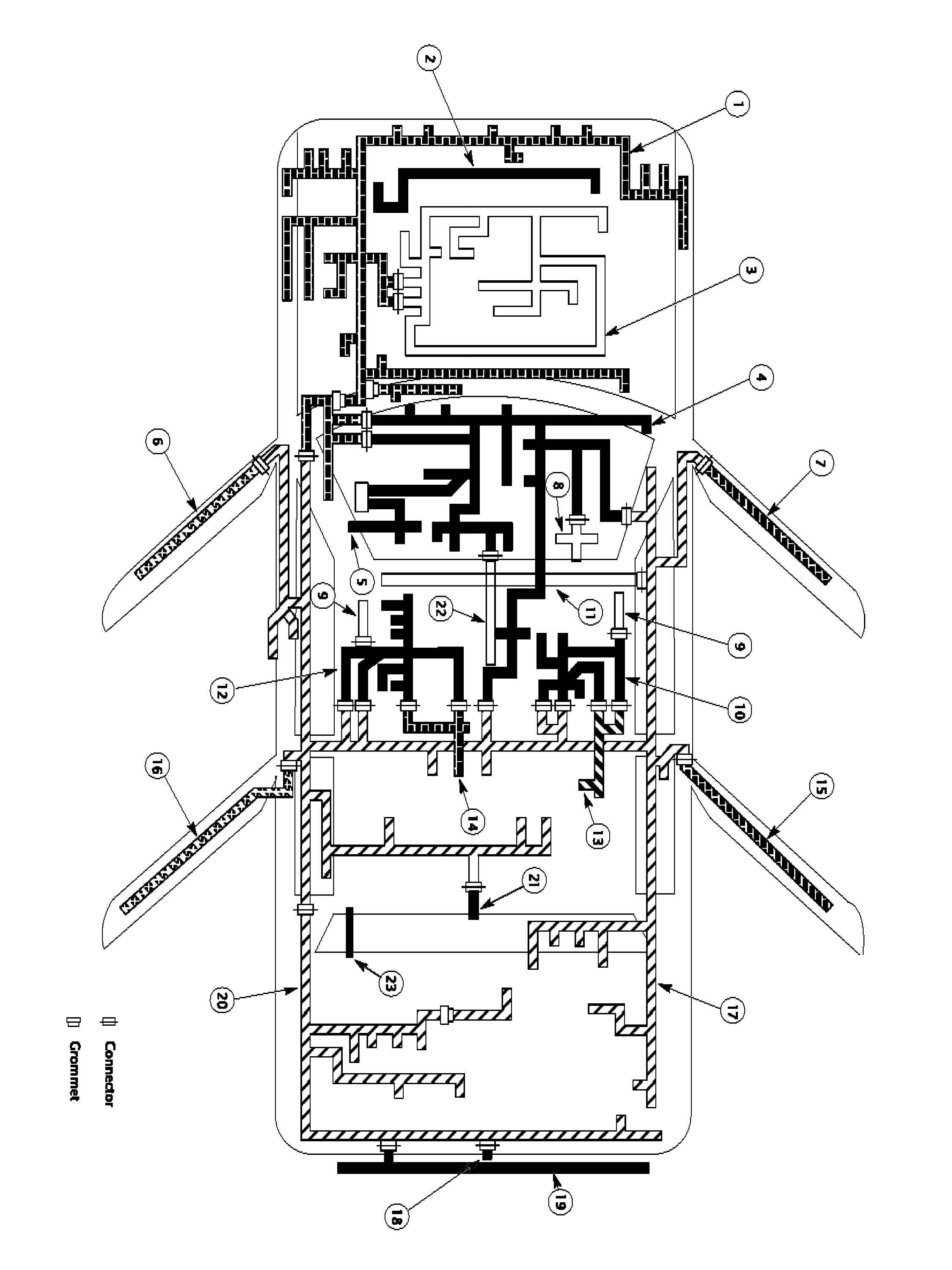

Wiring Harness Overview (Part 1):
Wiring Harness Overview (Part 2):
