Backup Lamp: Service and Repair

Reversing Lamp

Milan










MKZ

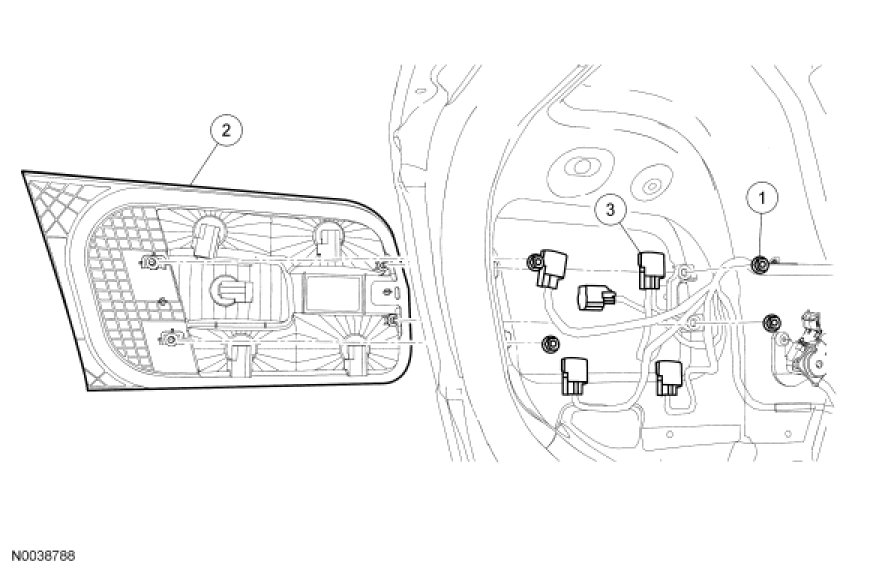

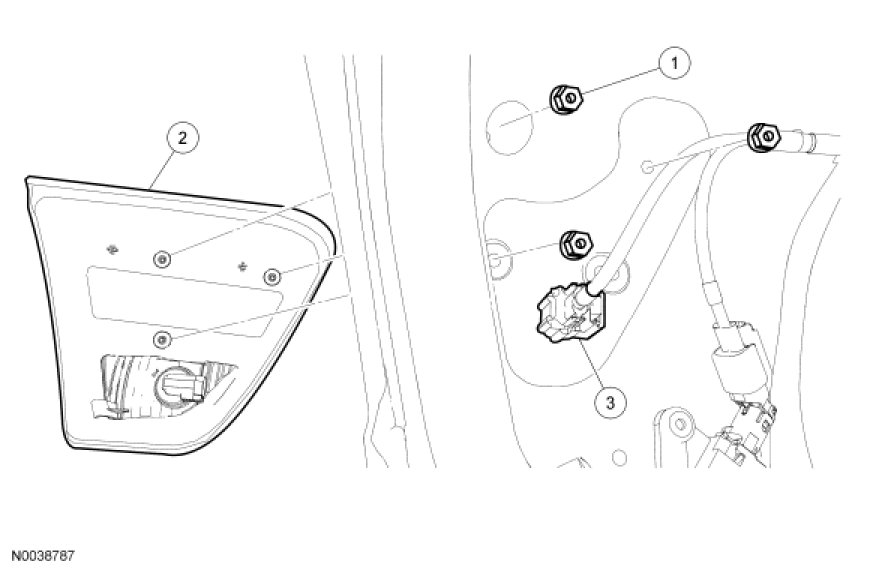

Removal and Installation

1. Remove the pin-type retainers and the luggage compartment decklid trim panel.

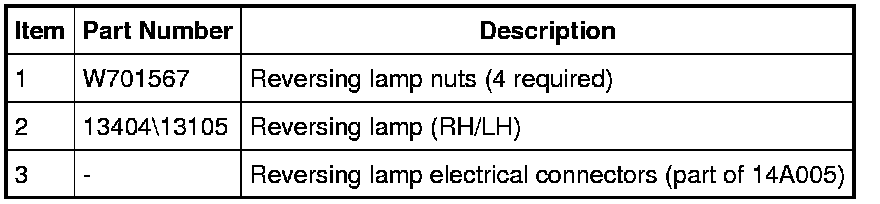

2. Remove the 3 nuts (Milan) or 4 nuts (MKZ) and the reversing lamp.
- Disconnect the electrical connector(s).

3. To install, reverse the removal procedure.
