Home >> Ford >> 2009 >> Fusion AWD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Seat Control Switch, Passenger Side Front

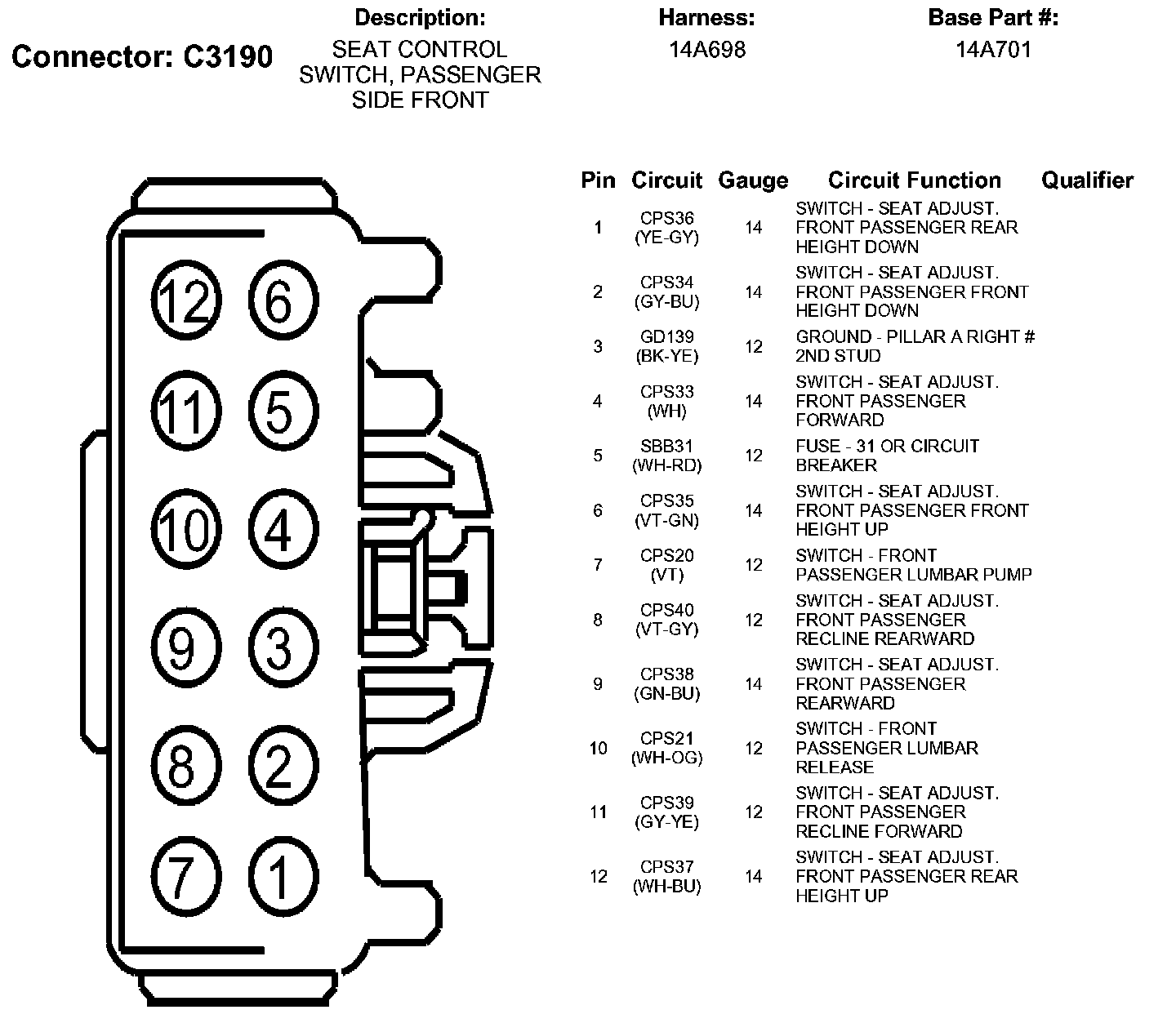

Seat Control Switch, Passenger Side Front
