LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2009
>>
Fusion AWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Smart Junction Box (SJB)

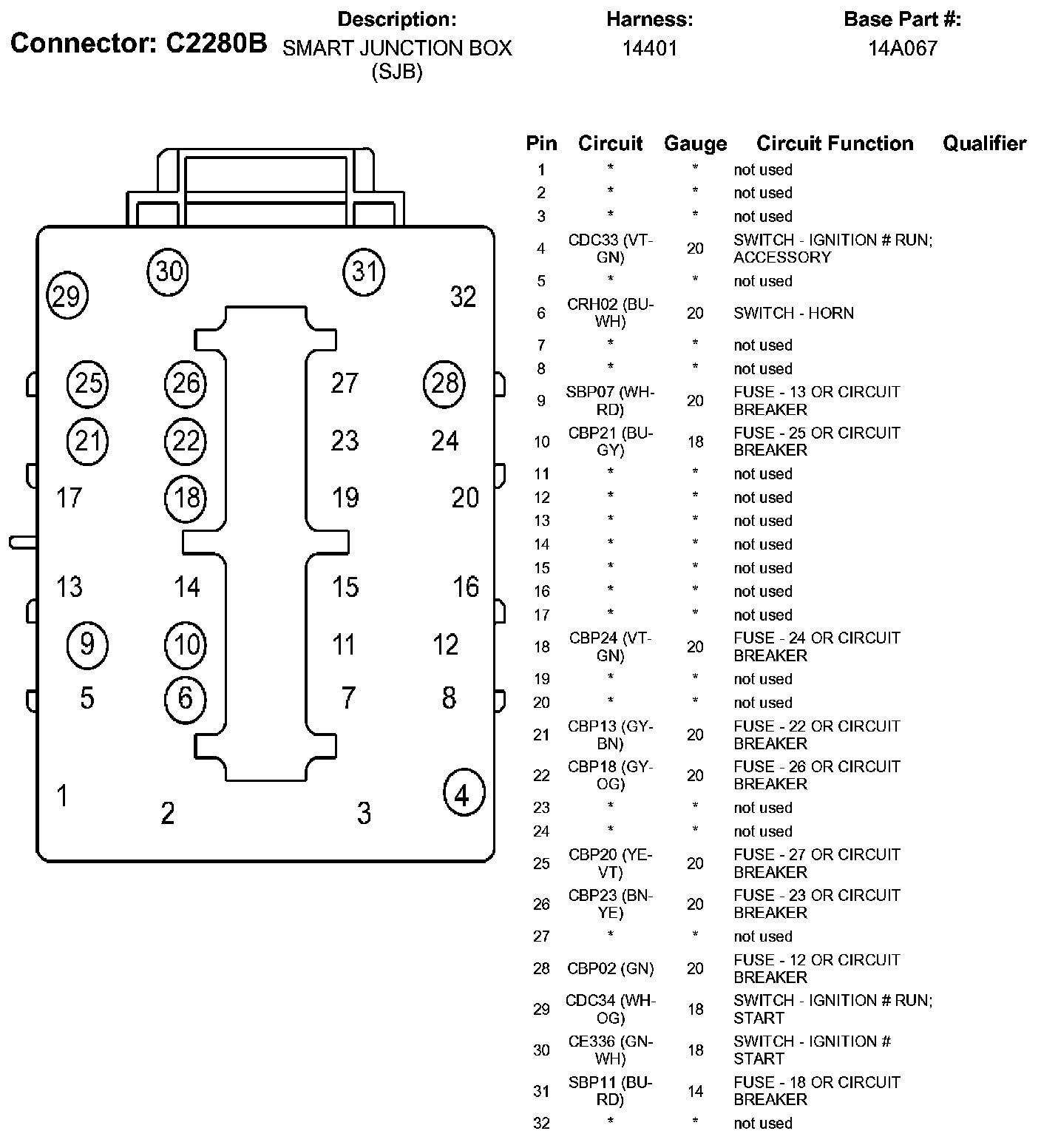

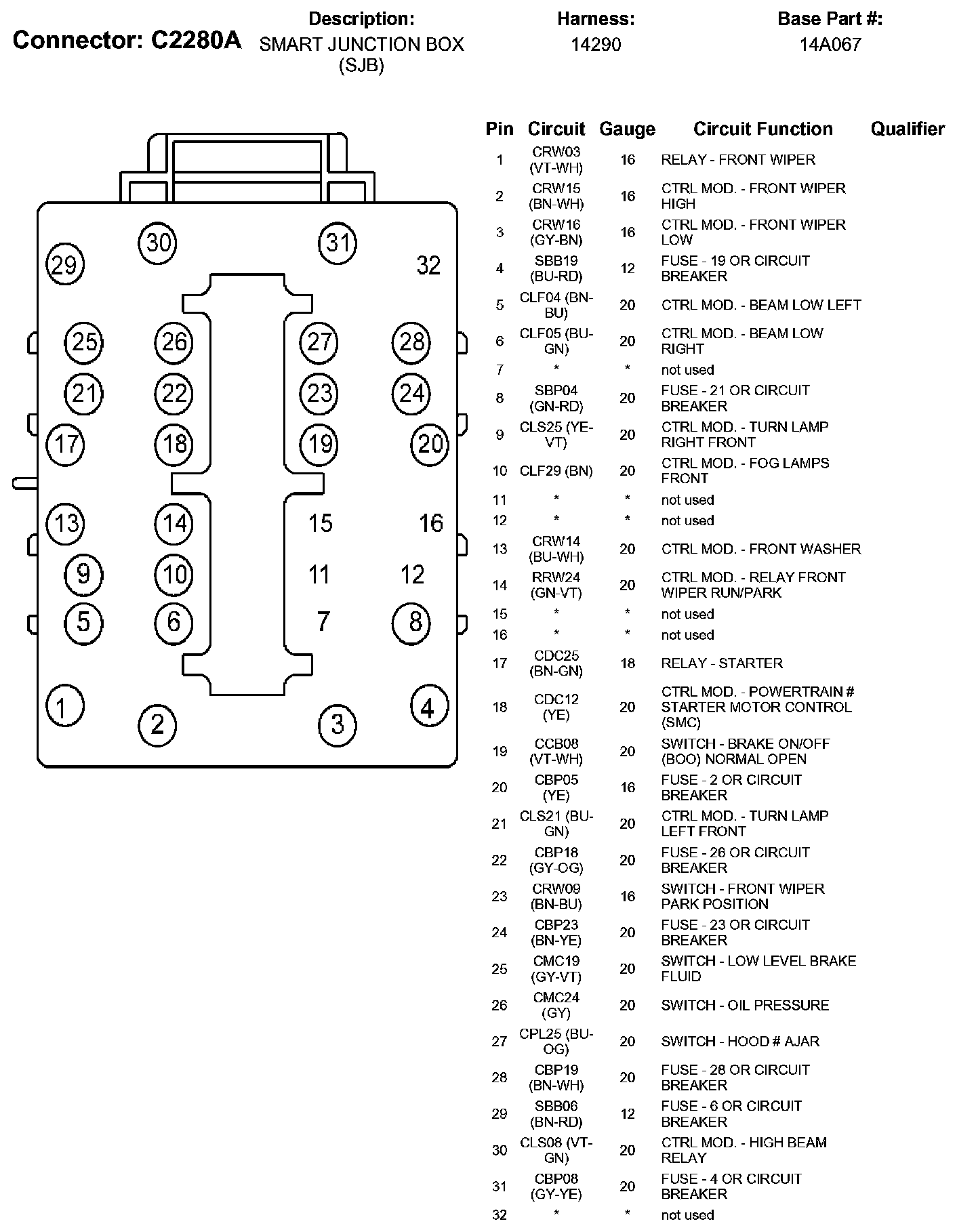

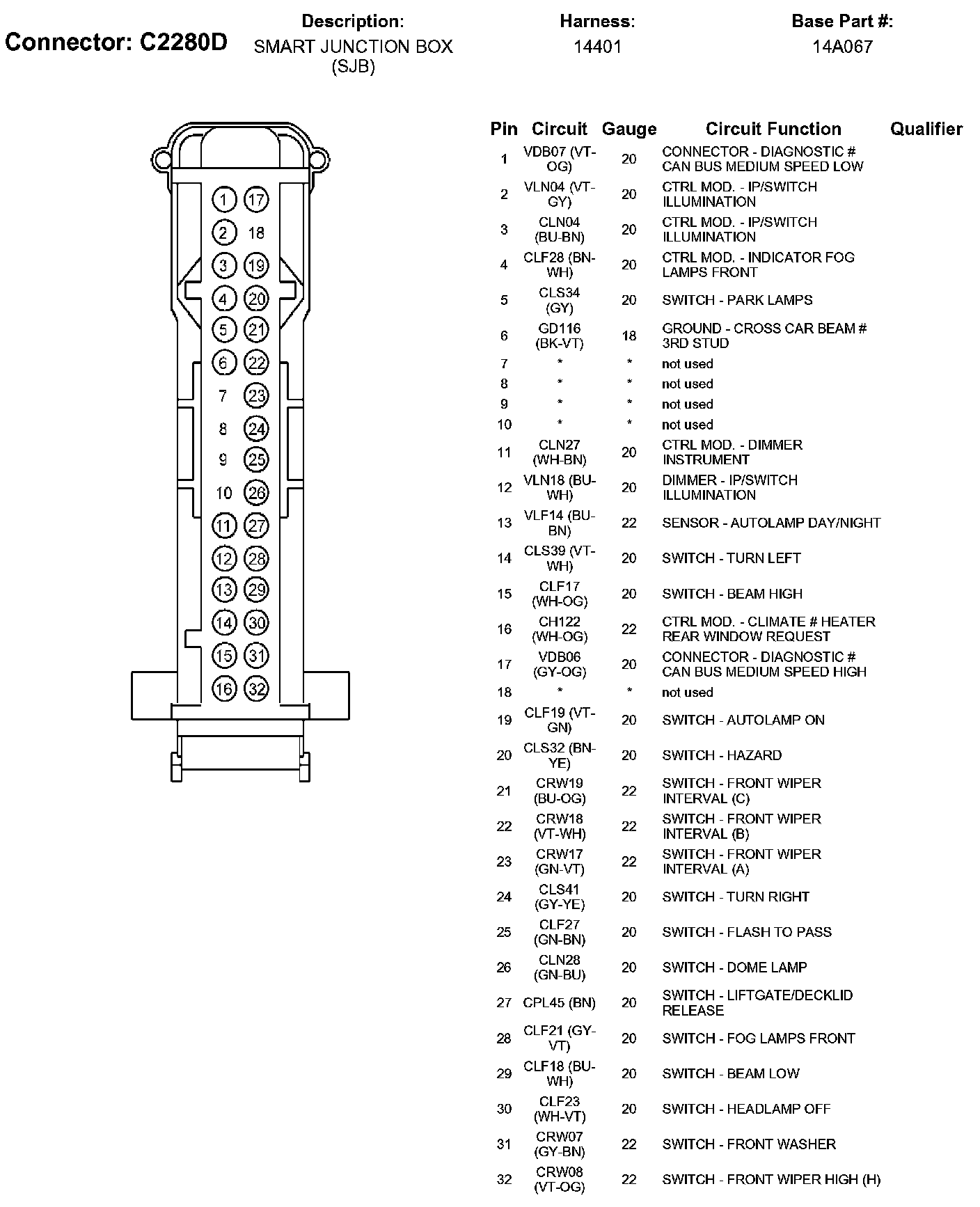

Smart Junction Box (SJB)
