Home >> Ford >> 2009 >> Fusion AWD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> Fog Lamp, Right Front

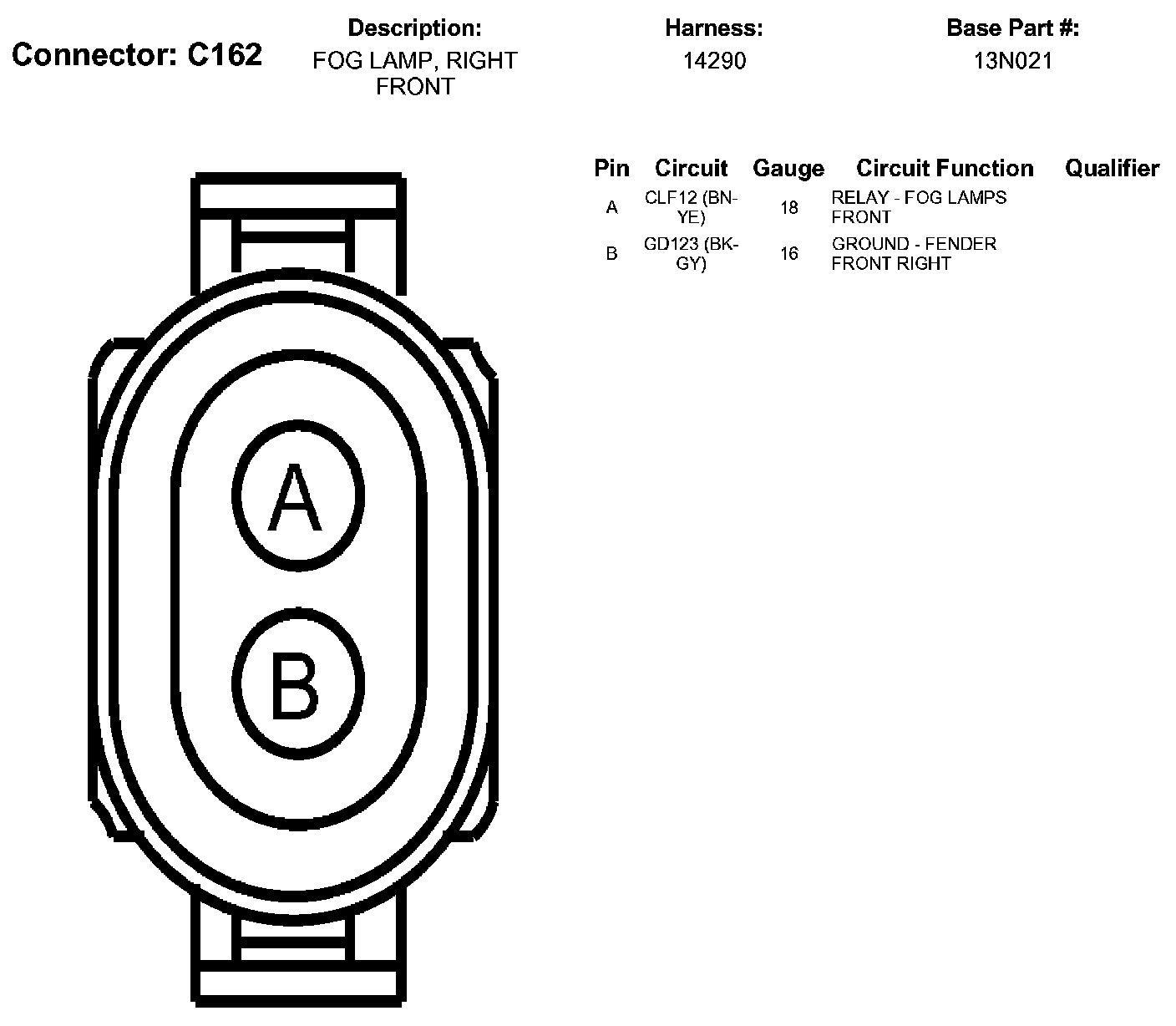

Fog Lamp, Right Front
