Home >> Ford >> 2009 >> Fusion AWD L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shifter A/T

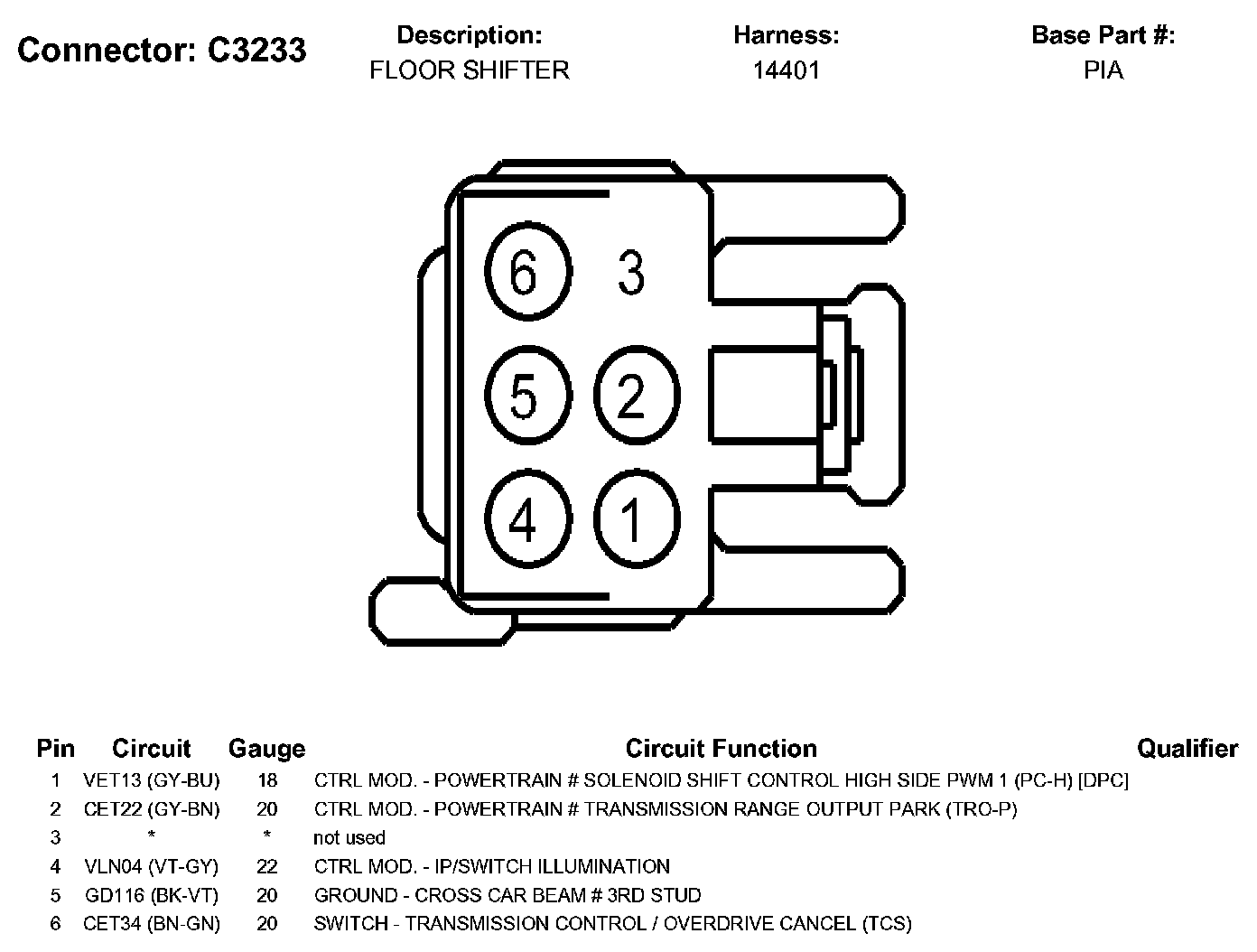

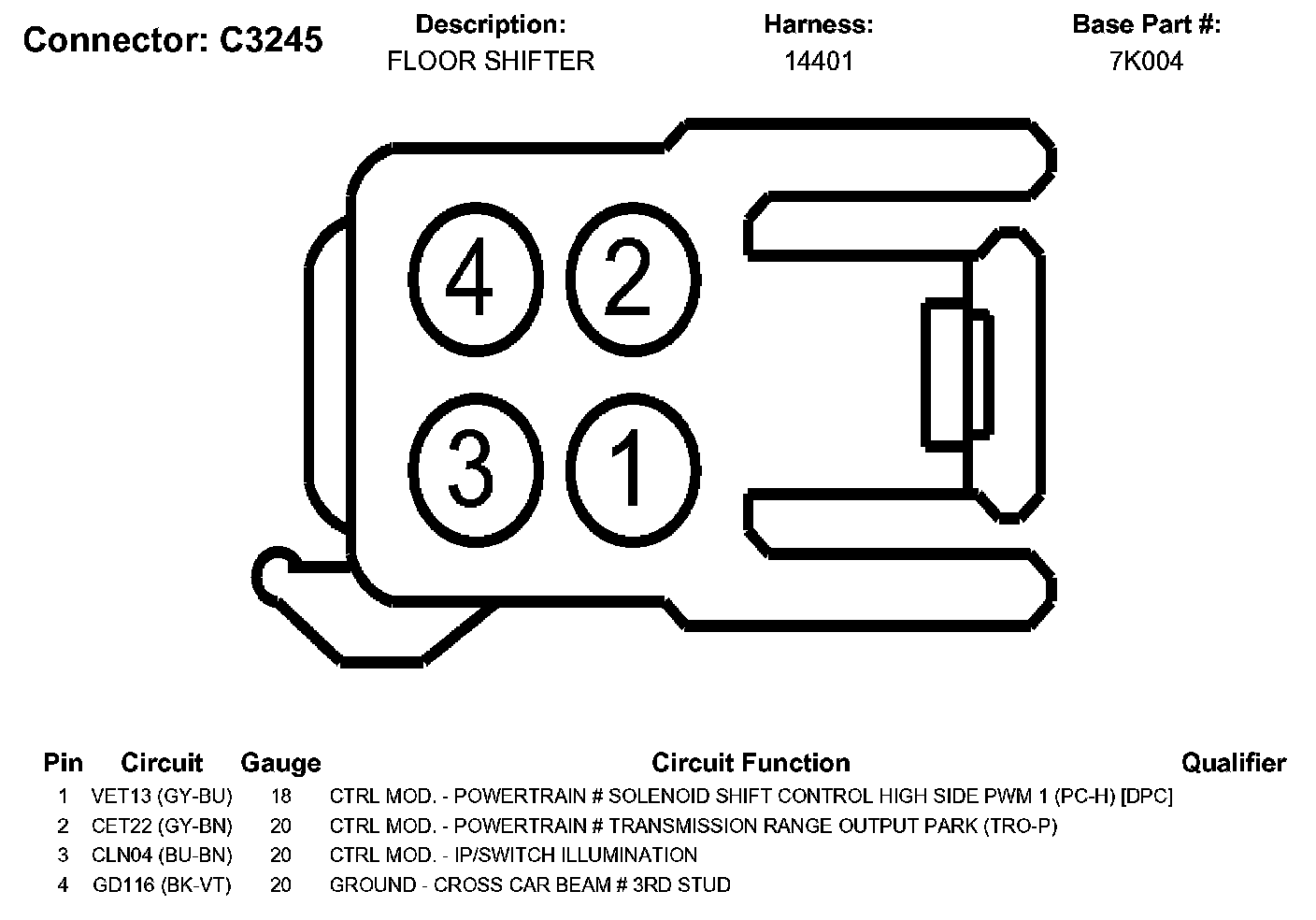

Shifter A/T
