Symptom Related Diagnostic Procedures
Body System

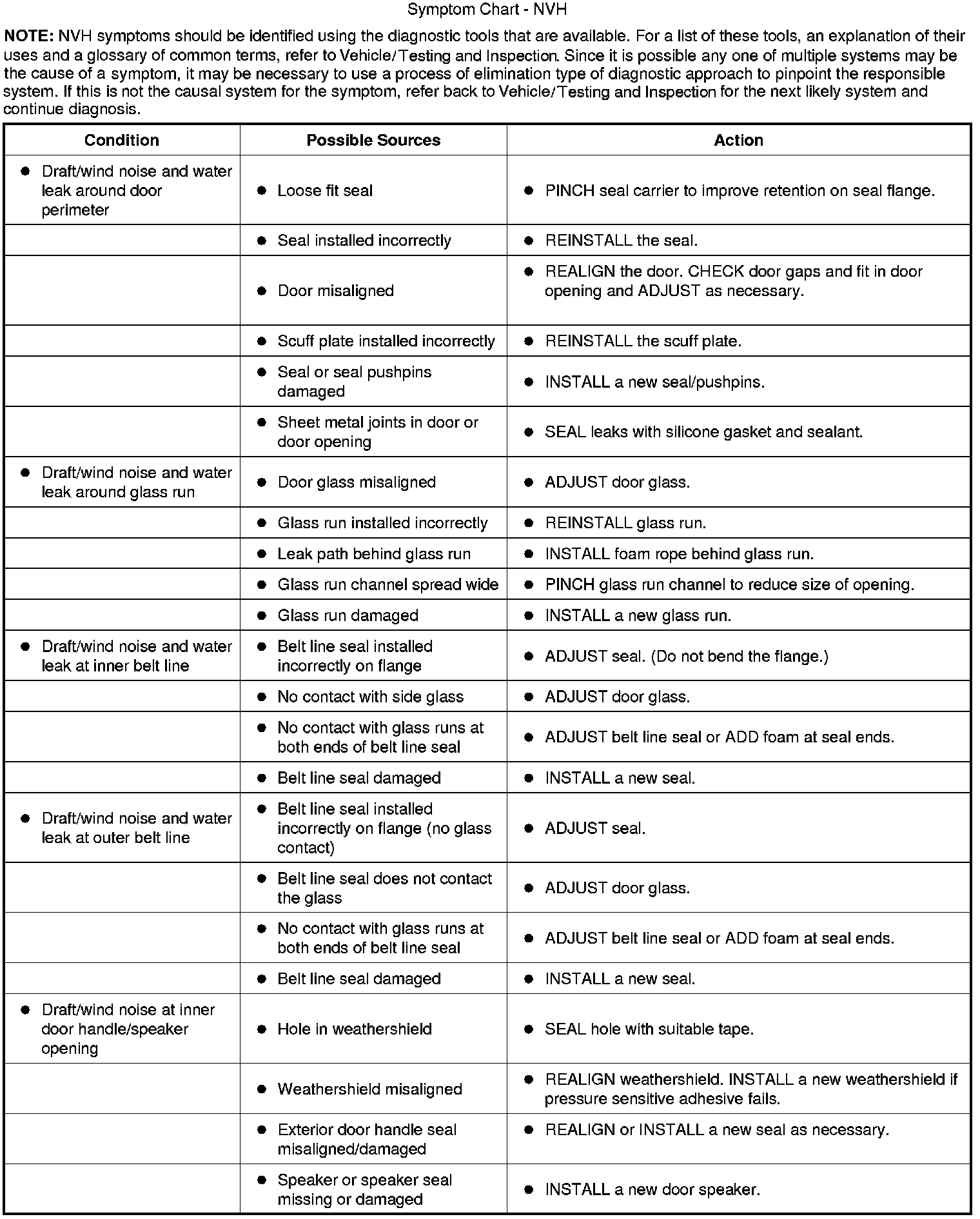

Symptom Chart - NVH

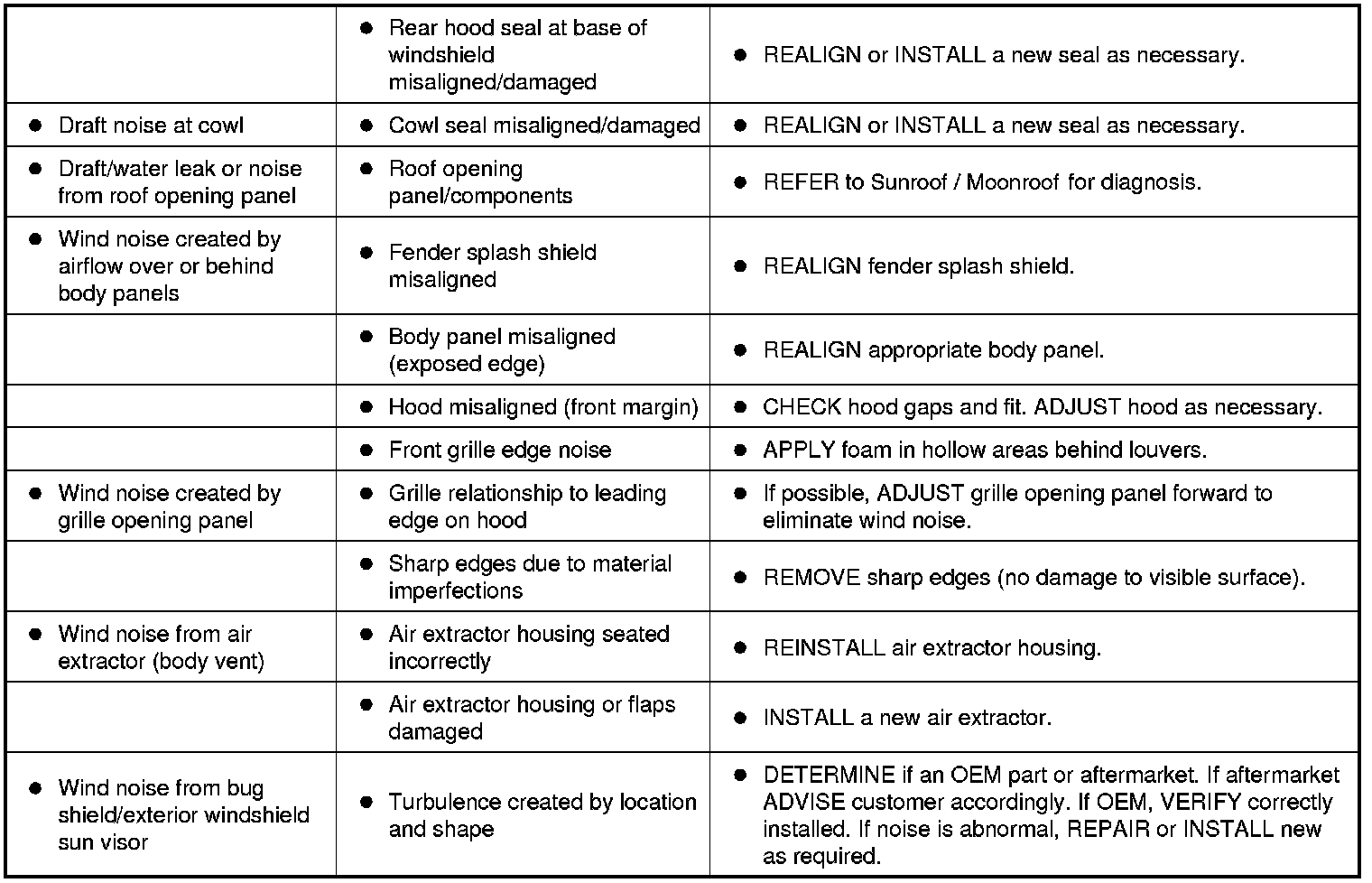

Symptom Chart - NVH (Part 1):

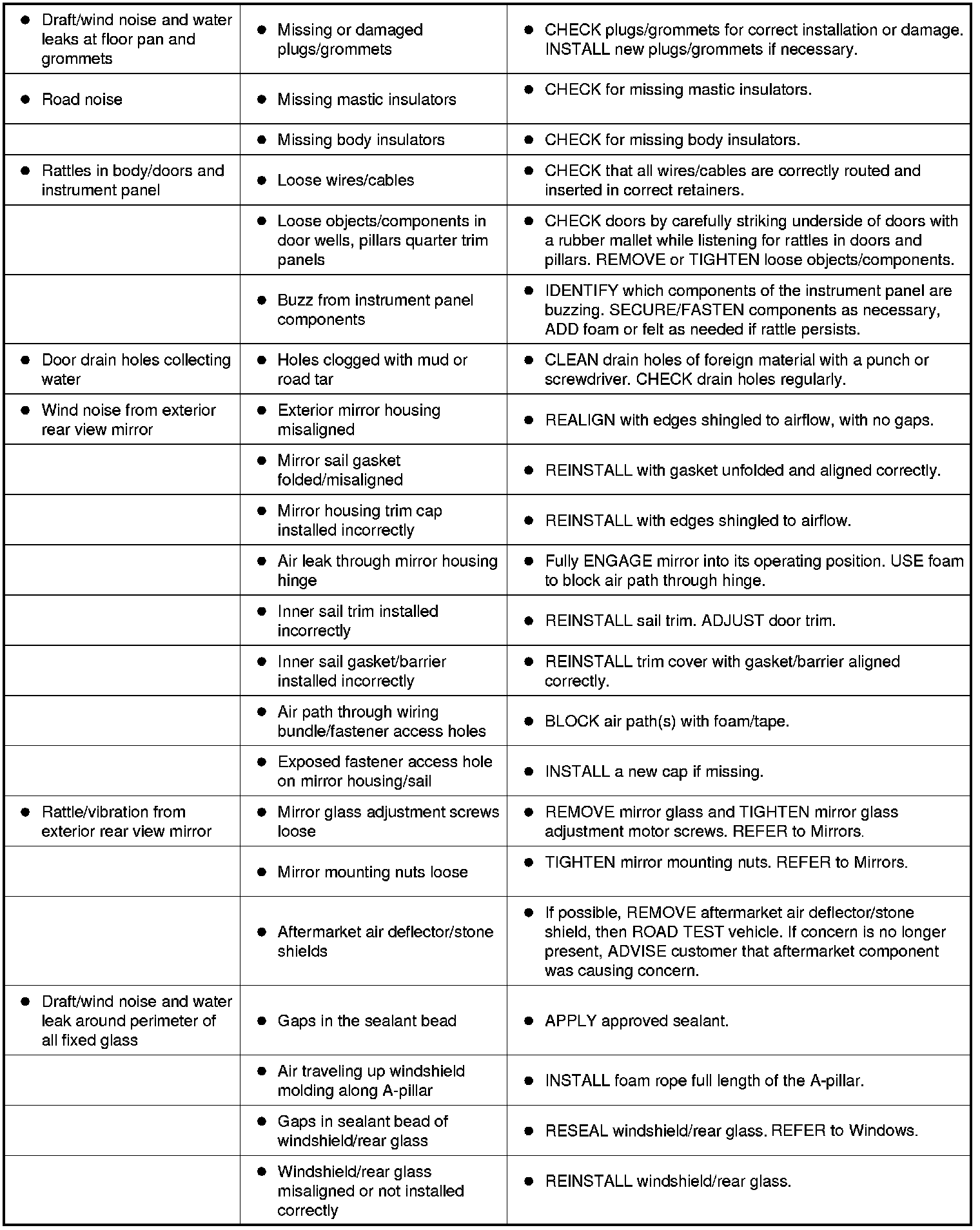

Symptom Chart - NVH (Part 2):
Symptom Chart - NVH (Part 3):
