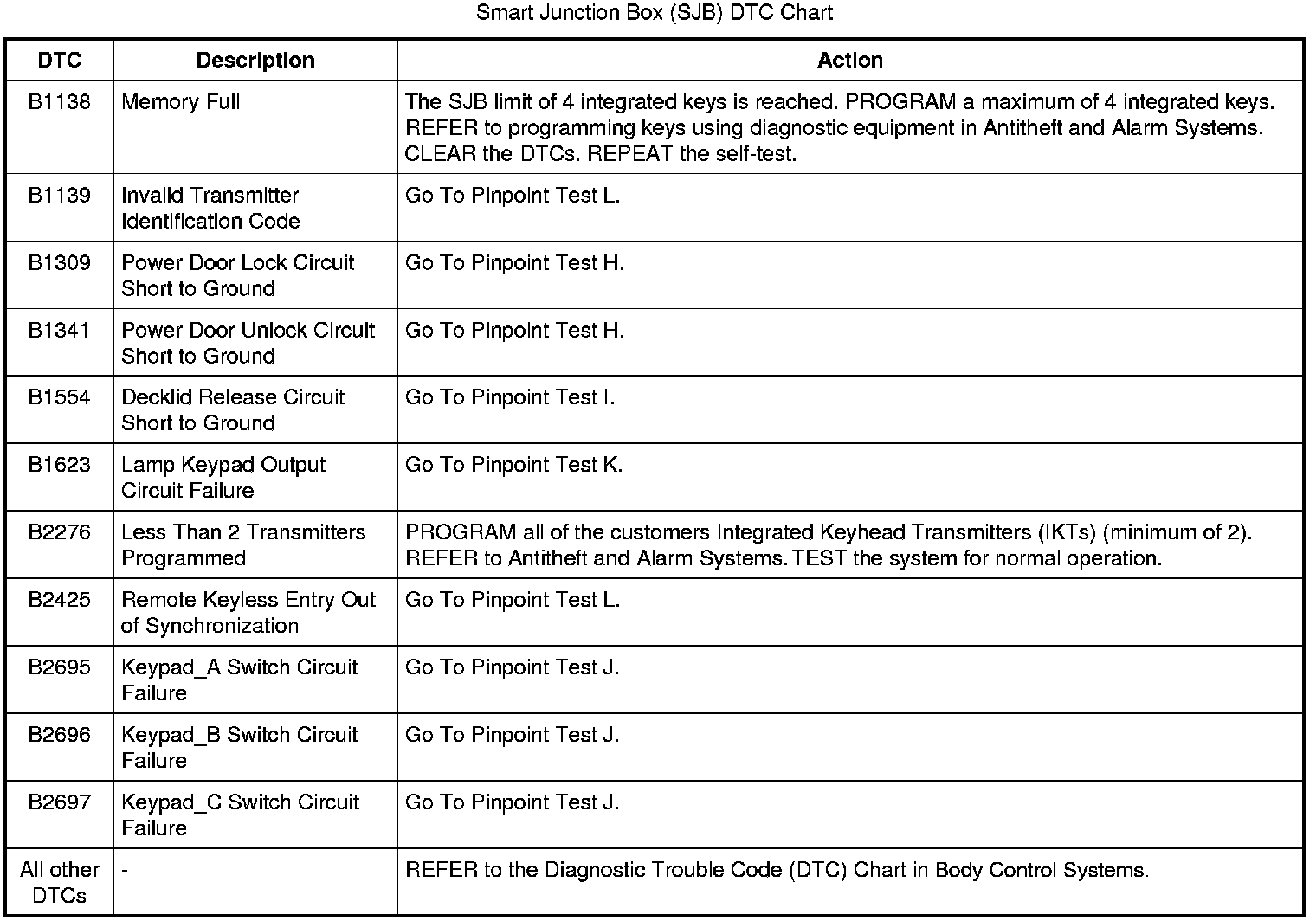

Smart Junction Box (SJB) DTC Chart
Smart Junction Box (SJB) DTC Chart
Locks, Latches and Entry Systems
DTC Charts
B1138-B2697:
