Receiver Dryer: Service and Repair

Receiver Drier













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Recover the refrigerant.

3. Remove the lower radiator splash shield.

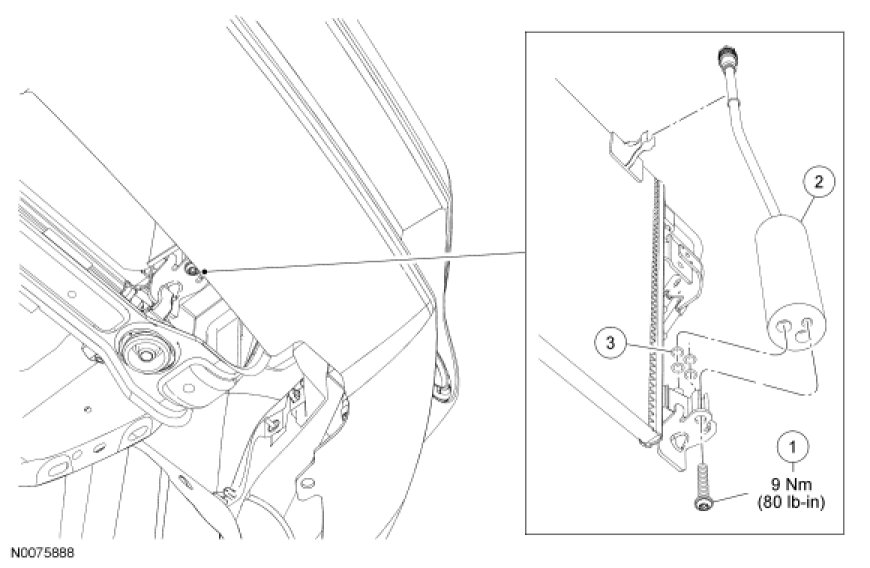

4. Remove the receiver/drier fitting bolt.
- To install, tighten to 9 Nm (80 lb-in).

5. Detach and remove the receiver/drier.
- Discard the O-ring seals.

6. To install, reverse the removal procedure.
- Install new O-ring seals.

- Lubricate the refrigerant system with the correct amount of clean PAG oil.

7. Evacuate, leak test and charge the refrigerant system.
