Fuel Tank And Filler Pipe - Exploded View

Fuel Tank and Filler Pipe - Exploded View

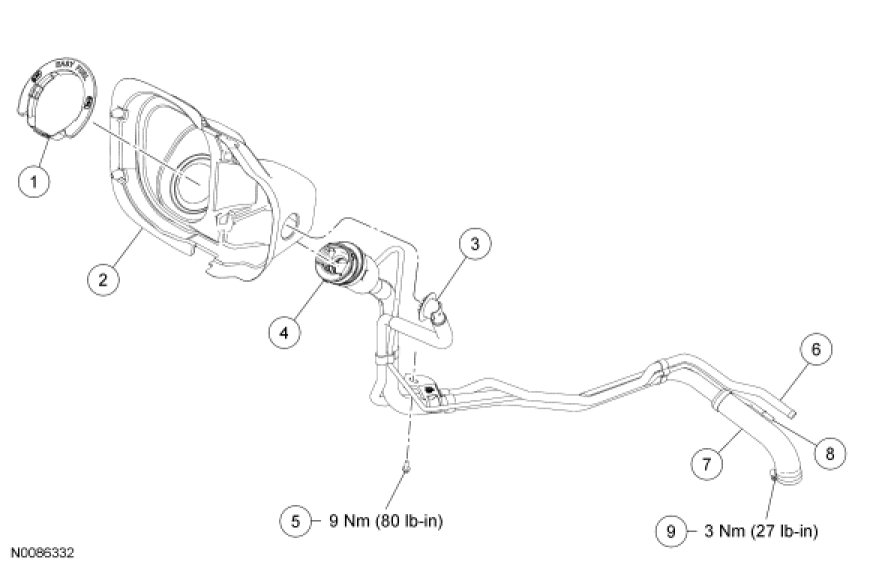

Fuel Tank Filler Pipe Assembly

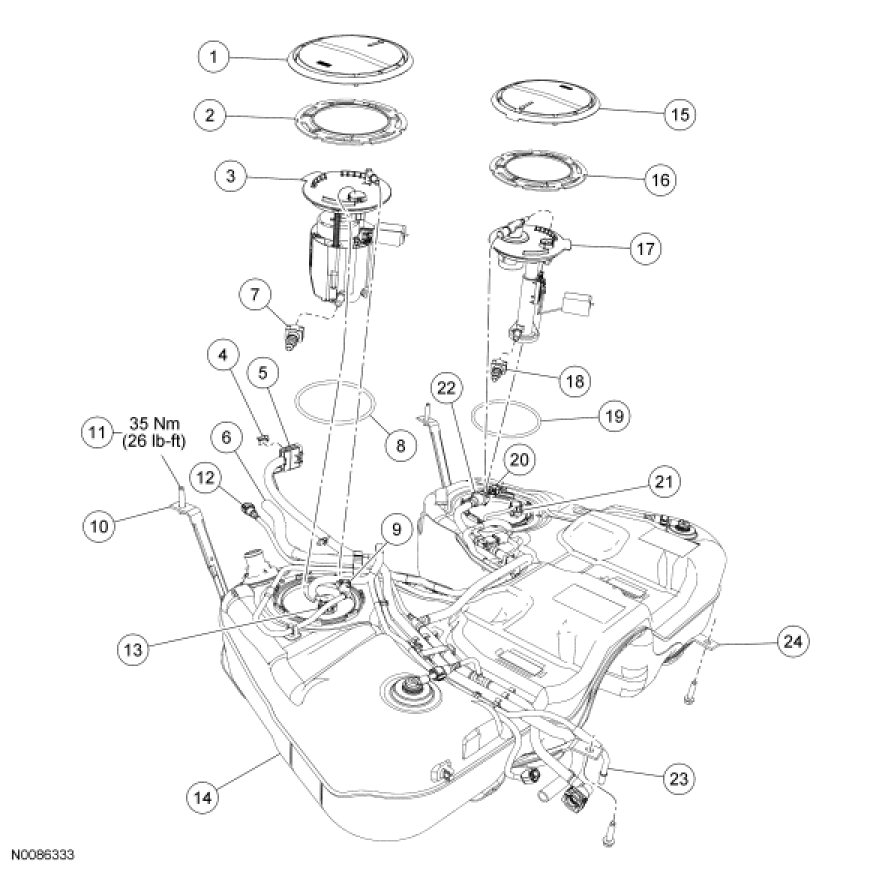

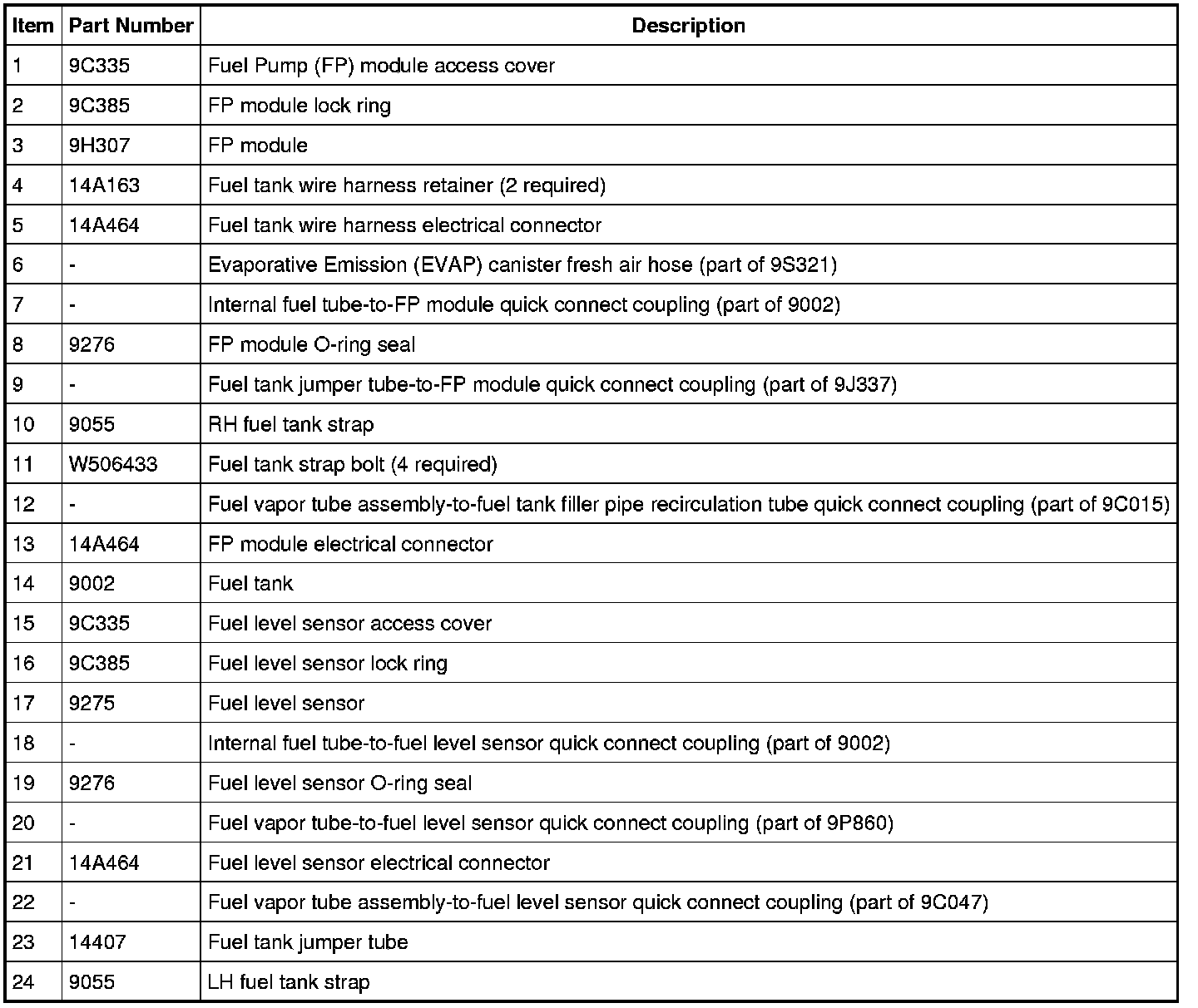

Fuel Tank Assembly

1. For additional information, refer to the procedures.
