Home >> Ford >> 2009 >> Flex AWD V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Third Row Seating >> Seat - Exploded View, Third Row

Seat - Exploded View, Third Row




Seat - Exploded View, Third Row

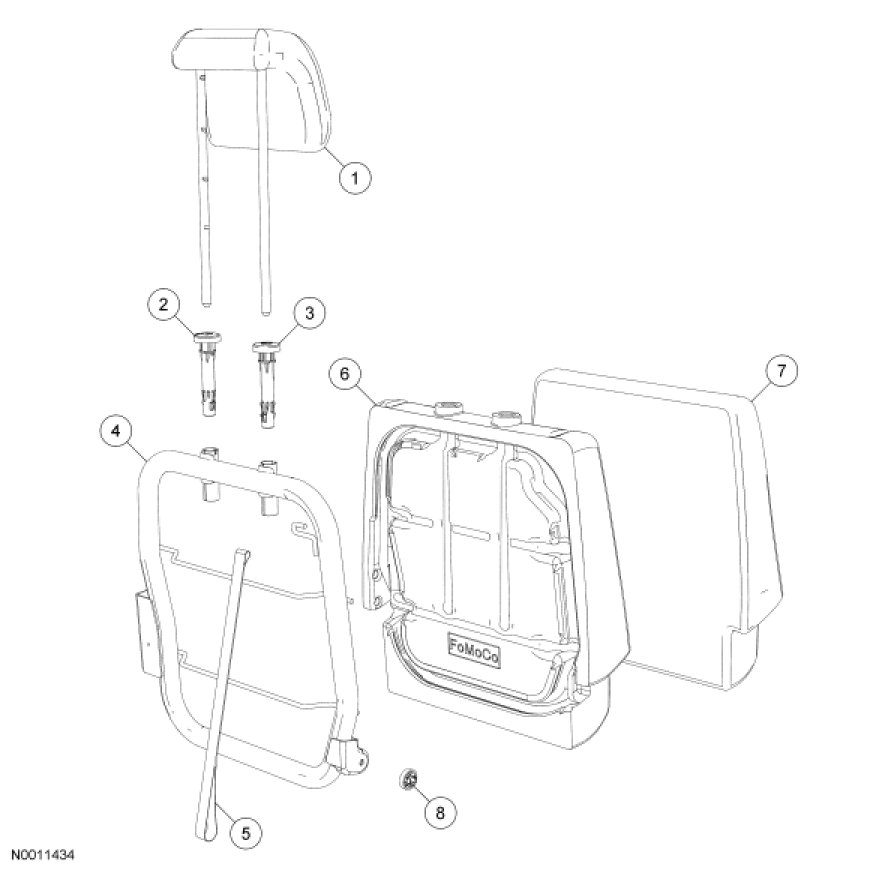

Backrest

NOTE: LH shown, RH similar.

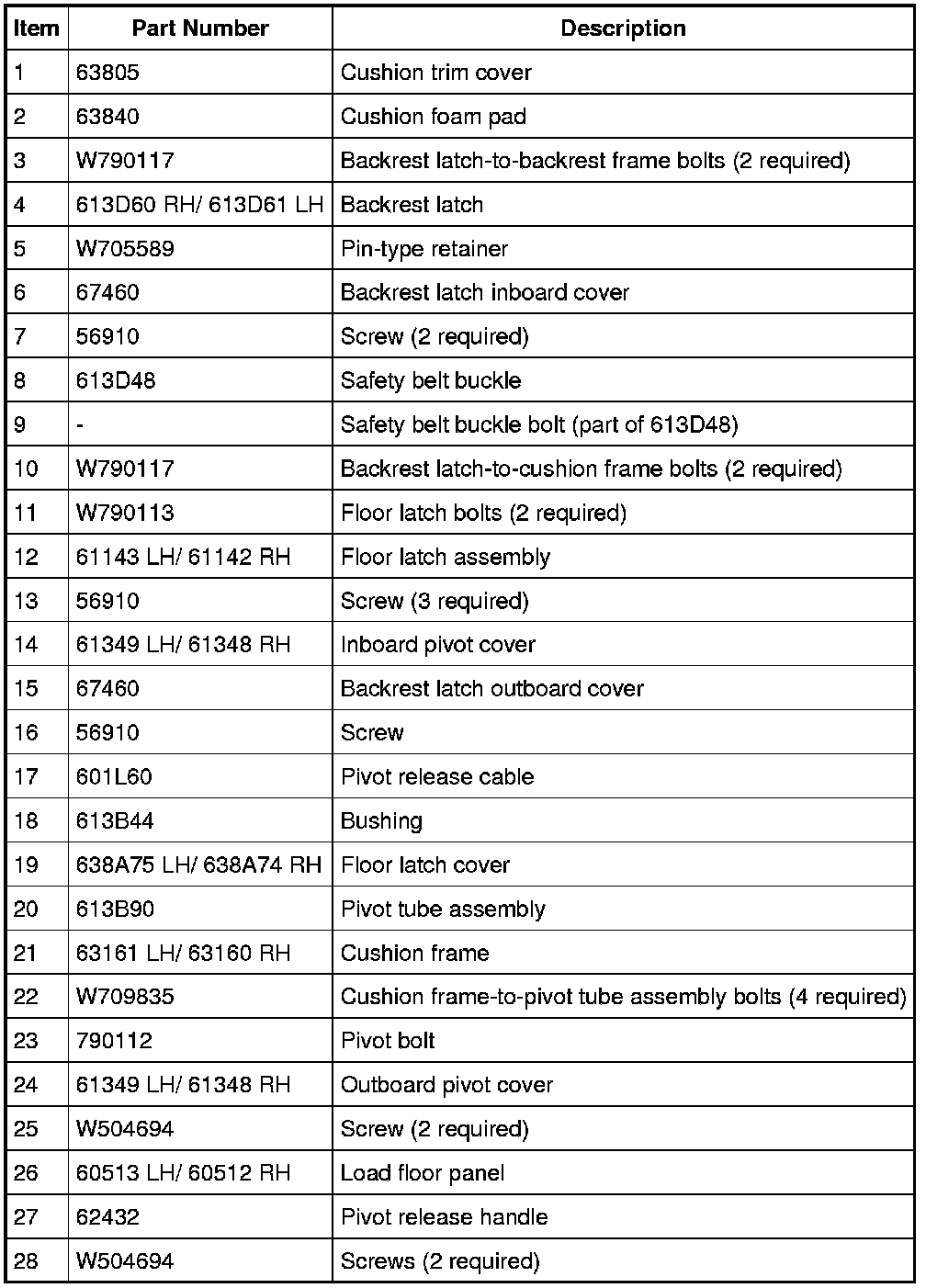

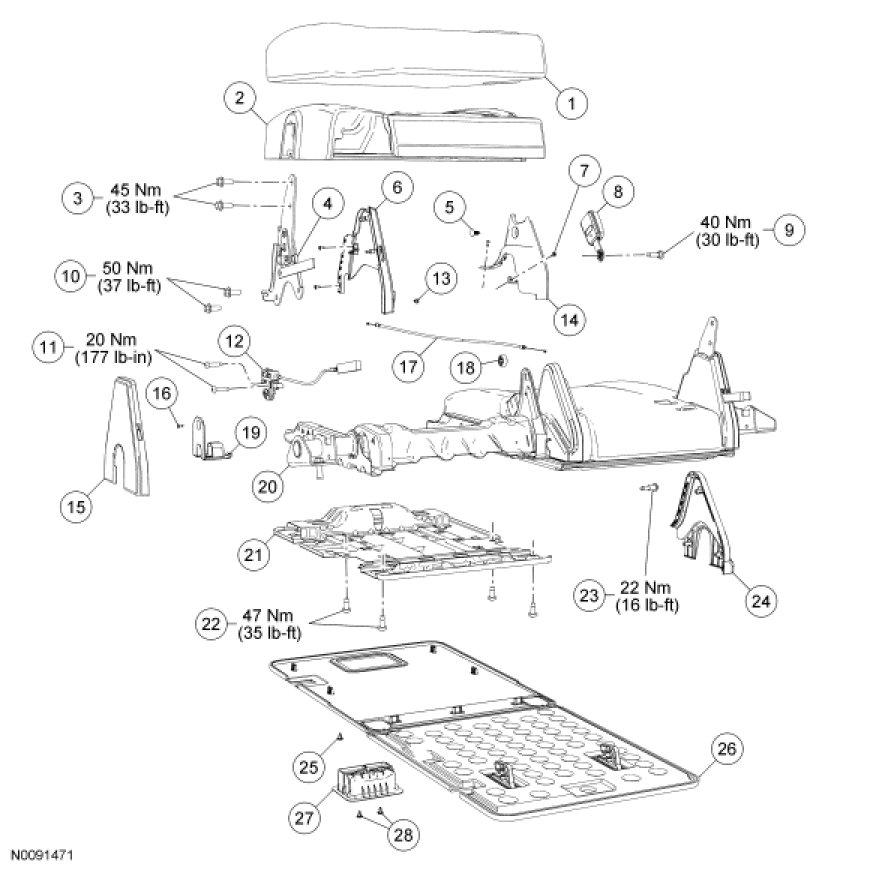

Cushion









1. For additional information, refer to the procedures.
