Ford
>>
2009
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>

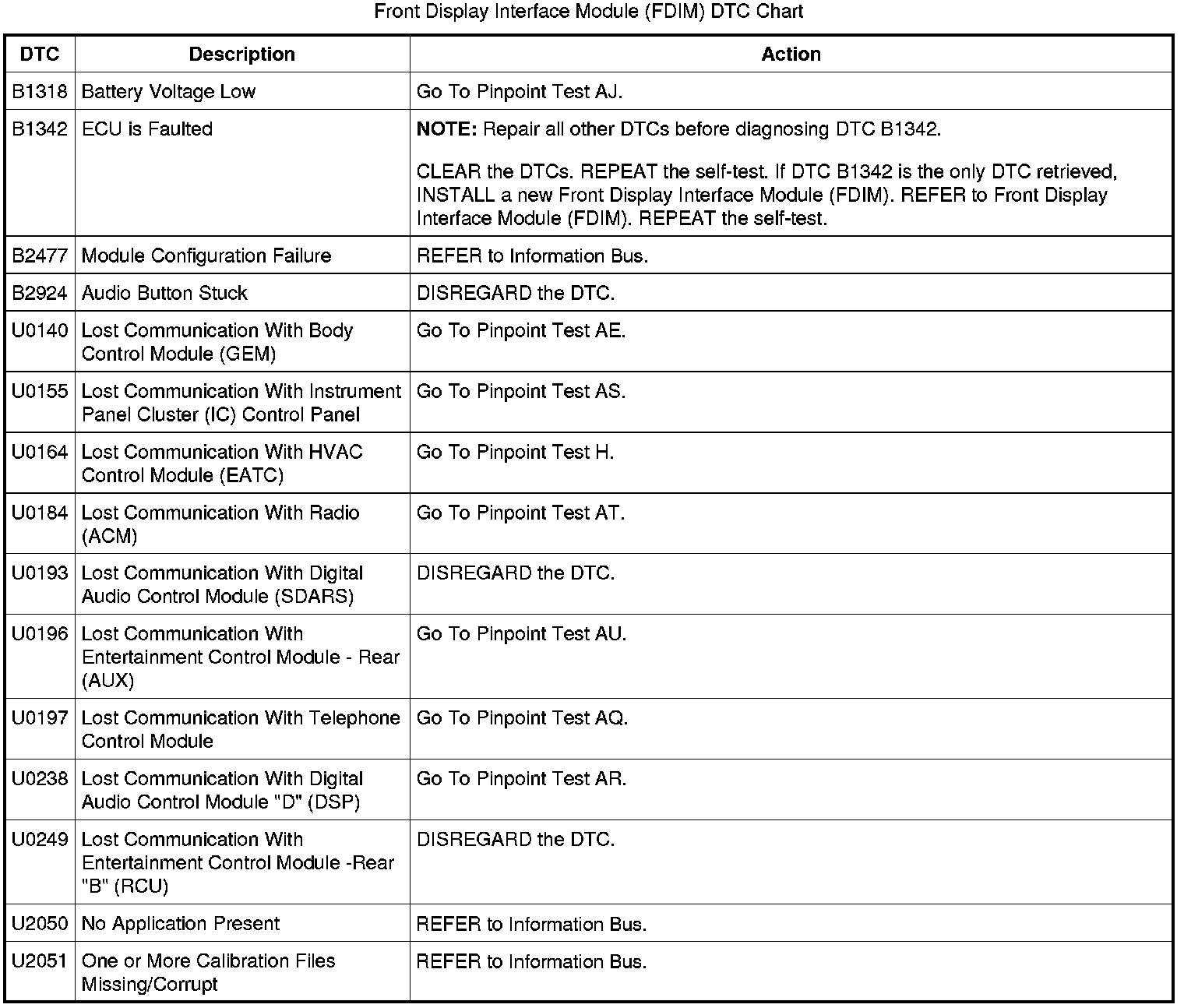

Front Display Interface Module (FDIM) DTC Chart
Front Display Interface Module (FDIM) DTC Chart
Information and Entertainment System
DTC Charts
B1318-B2924 / U0140:U2051:
