Compression Check: Specifications

Engine

Compression Test - Test Results

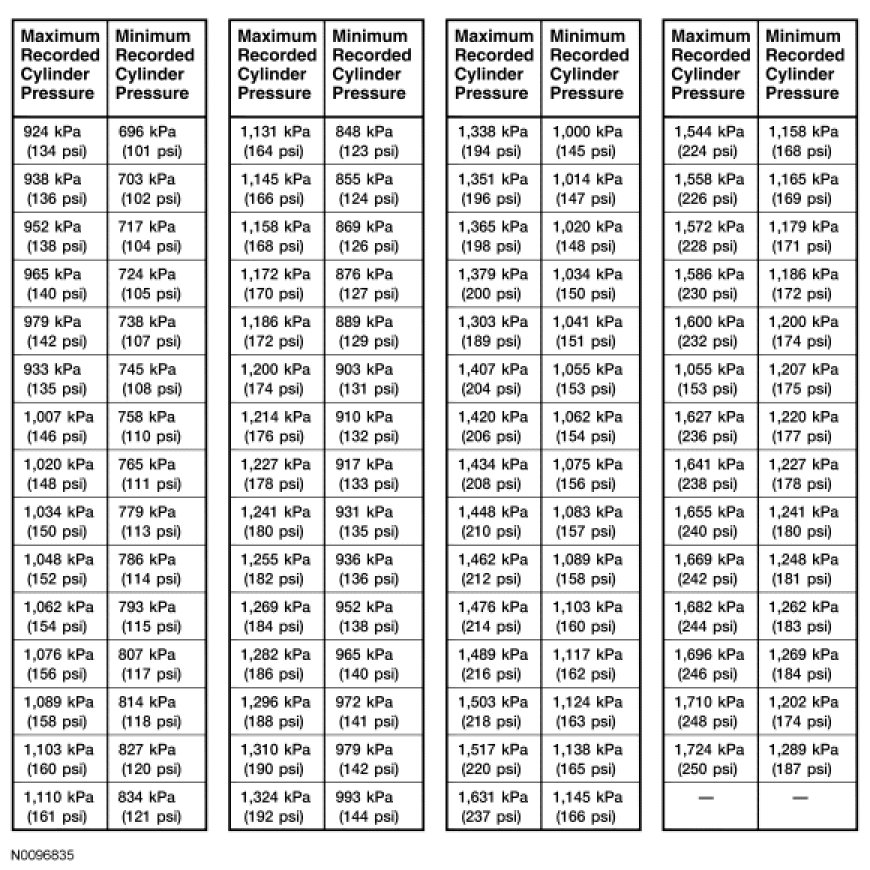

The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75% of the highest reading. Refer to the Compression Pressure Limit Chart.
