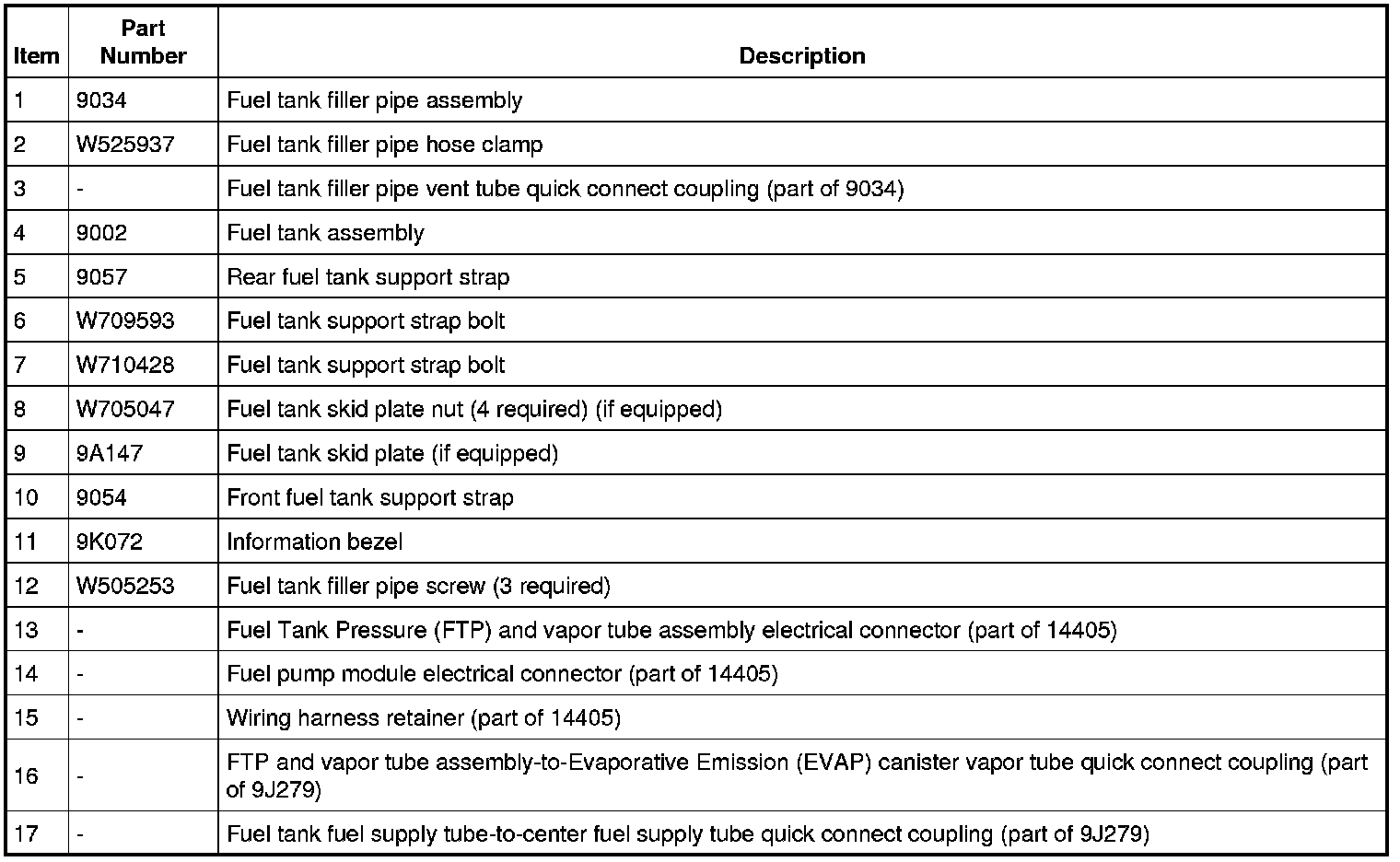

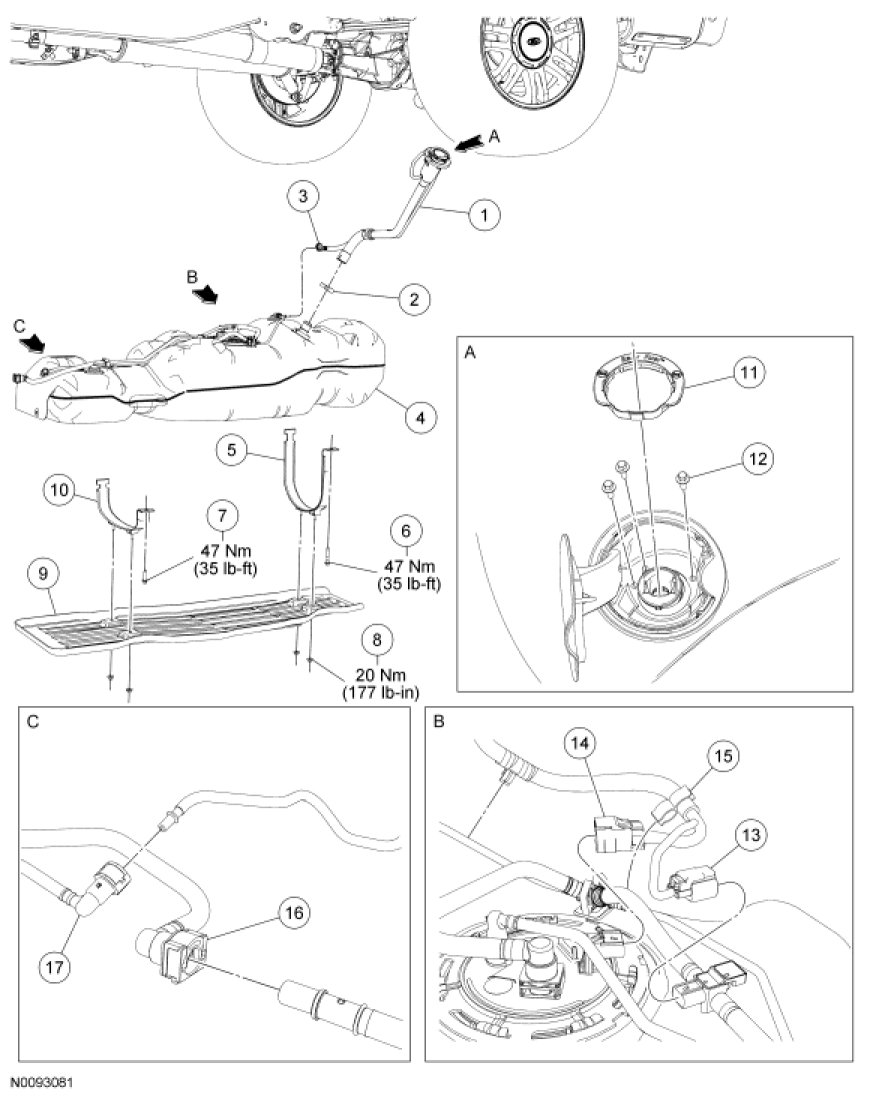

Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View
1.
For additional information, refer to the procedures.
