Home >> Ford >> 2009 >> F 150 2WD V8-5.4L Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

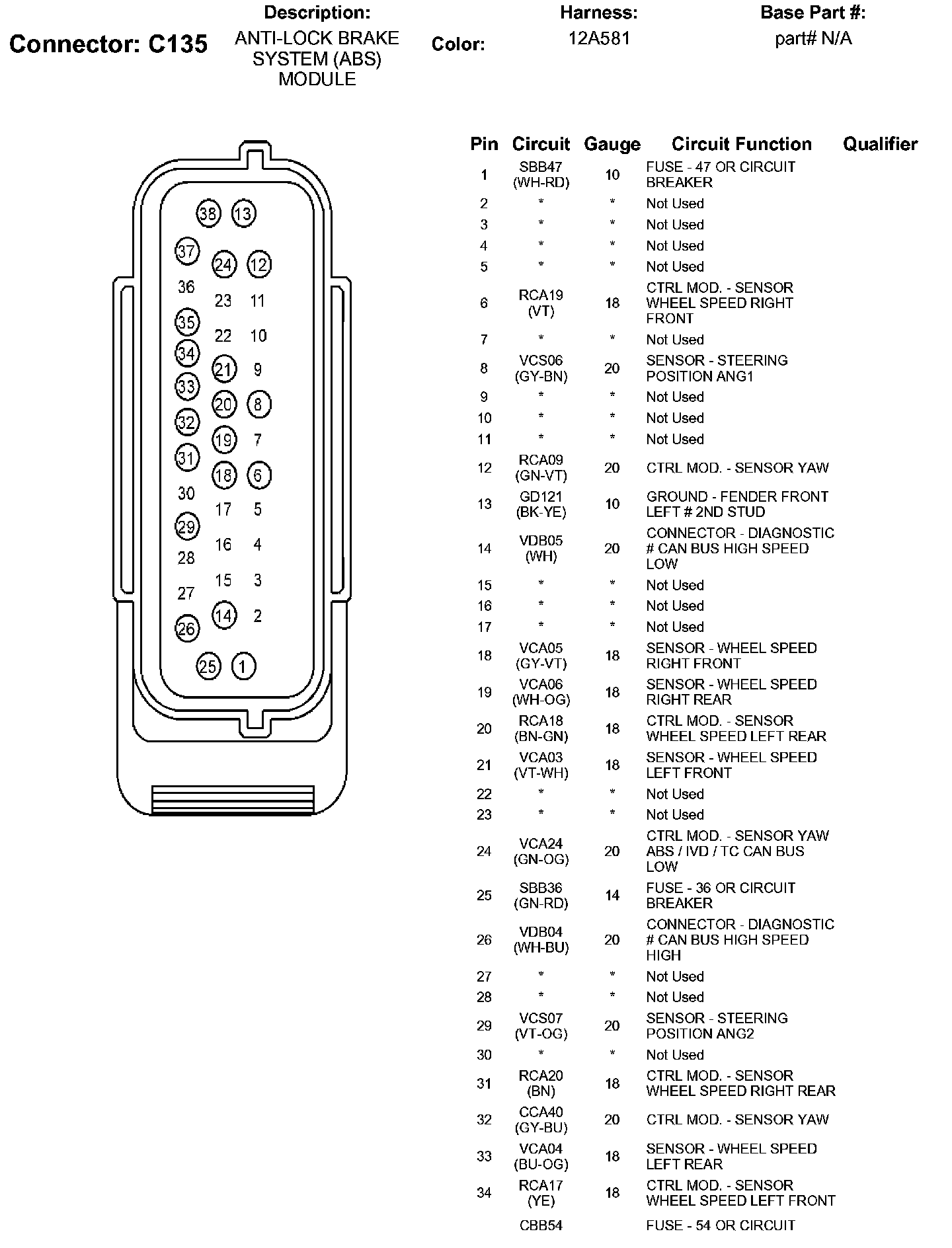

Electronic Brake Control Module

Part 1:



Part 2:
