Home >> Ford >> 2009 >> F 150 2WD V8-5.4L Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Blower Motor Speed Control

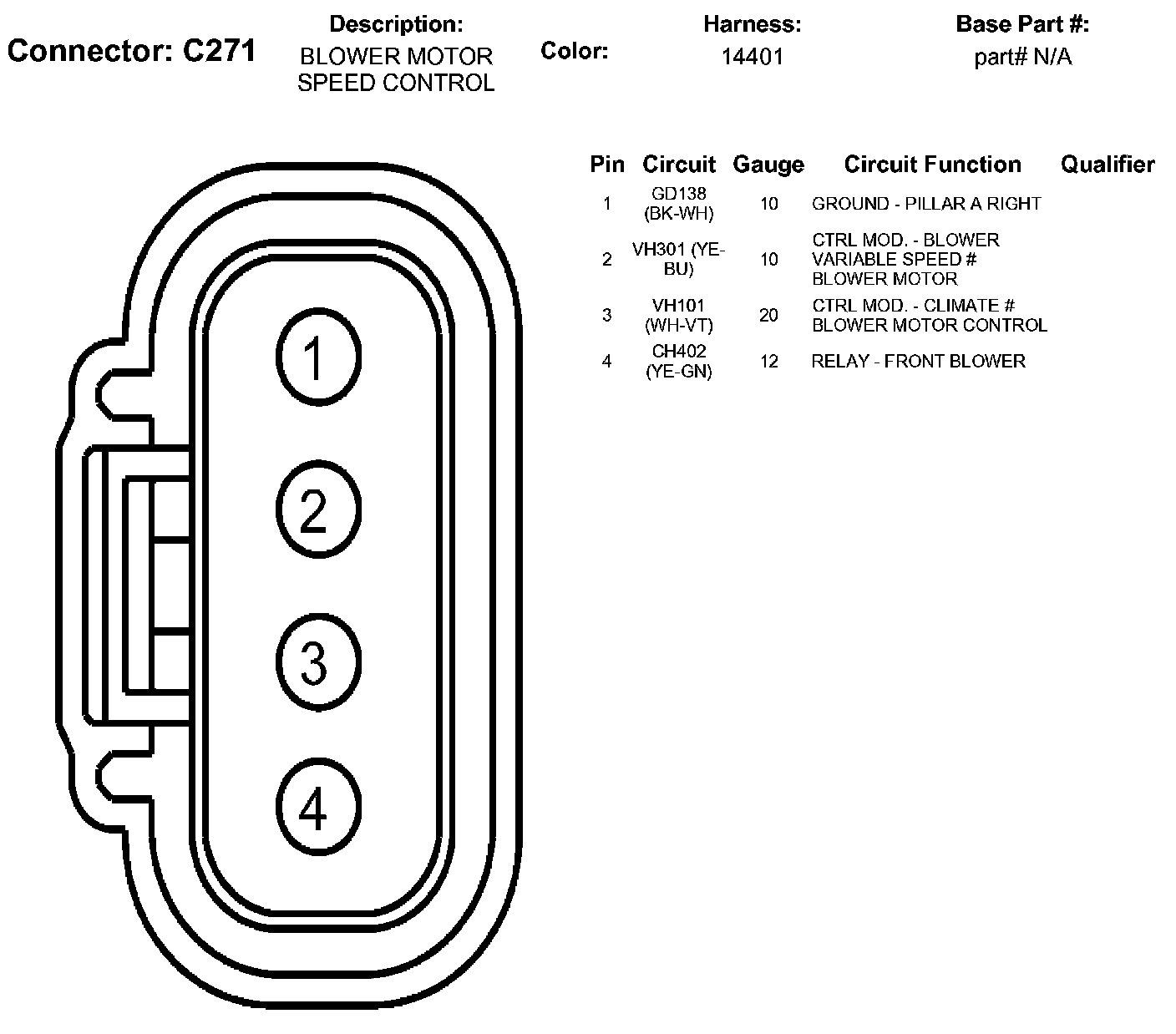

Blower Motor Speed Control
