Home >> Ford >> 2009 >> F 150 2WD V8-5.4L Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

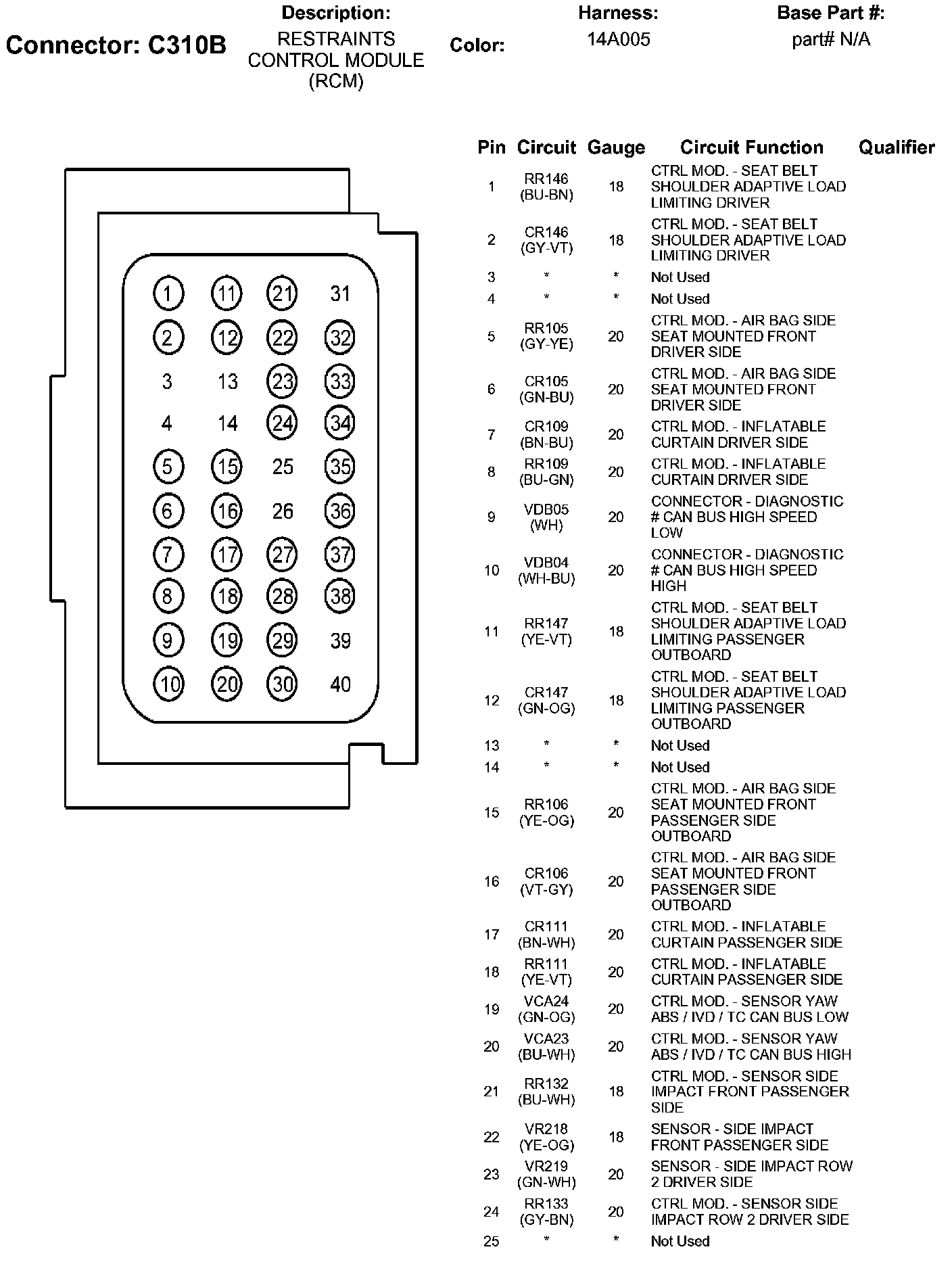

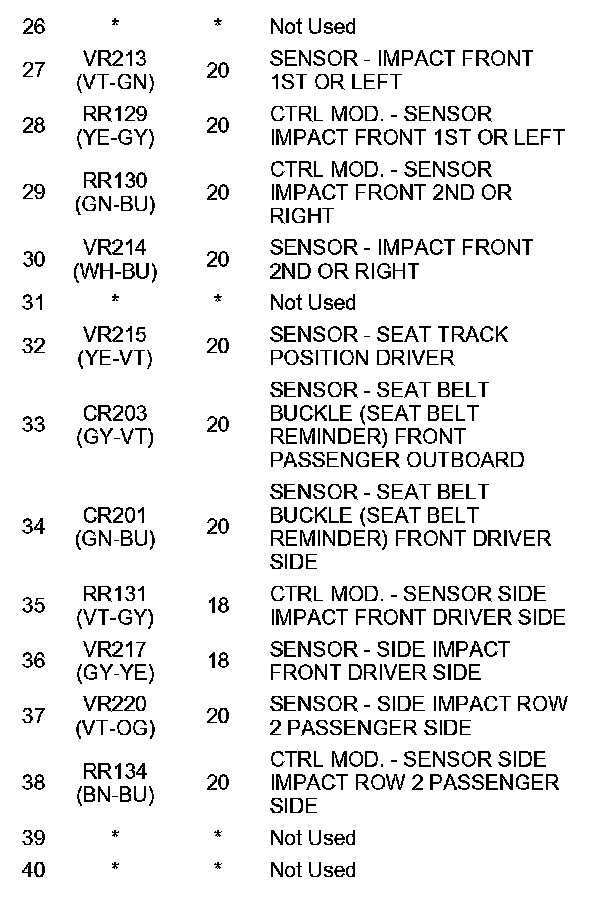

Part 1:

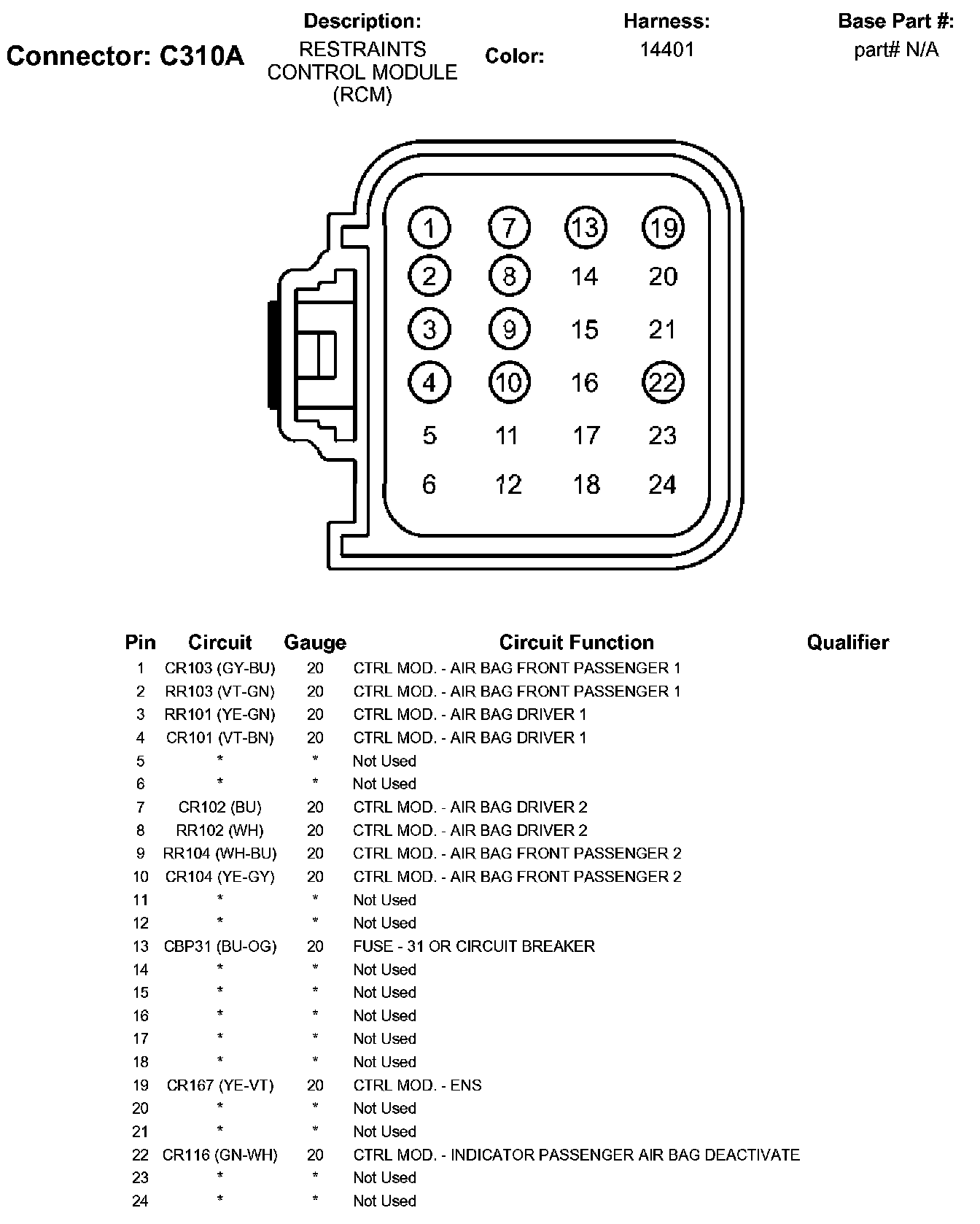

Part 2:
