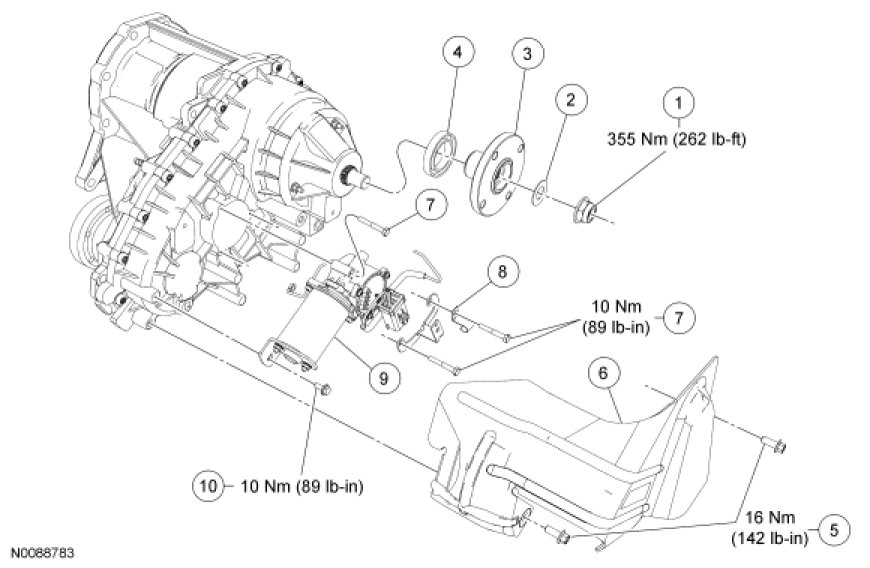

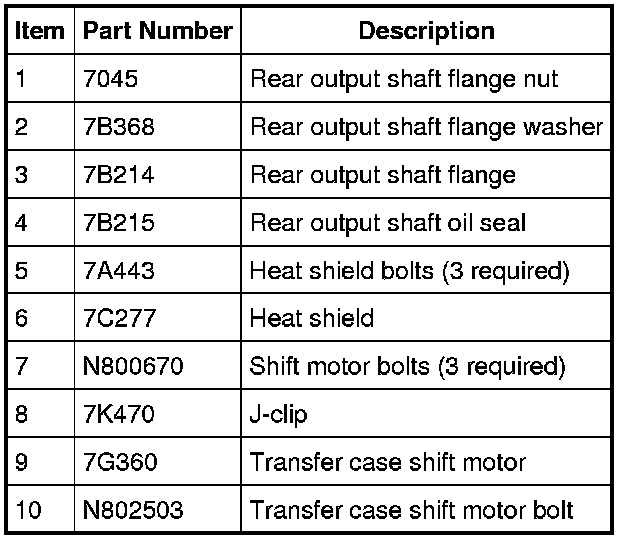

Transfer Case - Exploded View




Transfer Case - Exploded View









1. For additional information, refer to the procedures.
