Home >> Ford >> 2009 >> Explorer 2WD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Adjust Switch, Left Rear

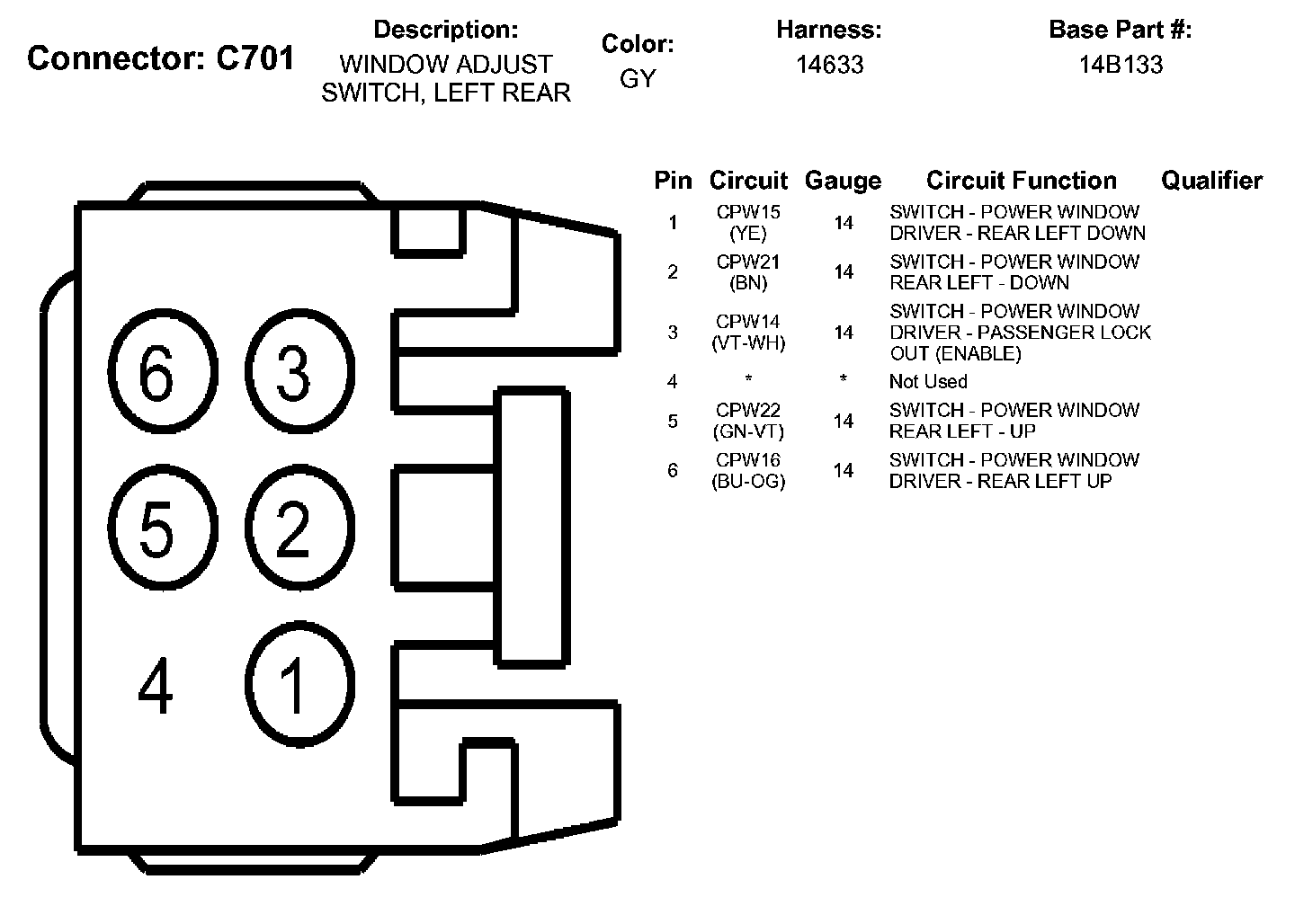

Window Adjust Switch, Left Rear
