Bumper - Exploded View, Front




Bumper - Exploded View, Front

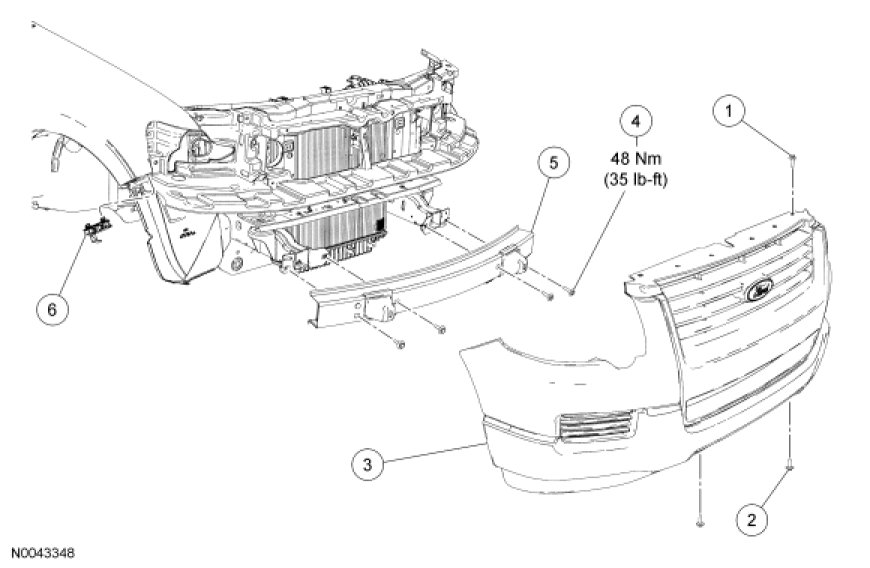

Explorer/Explorer Sport Trac

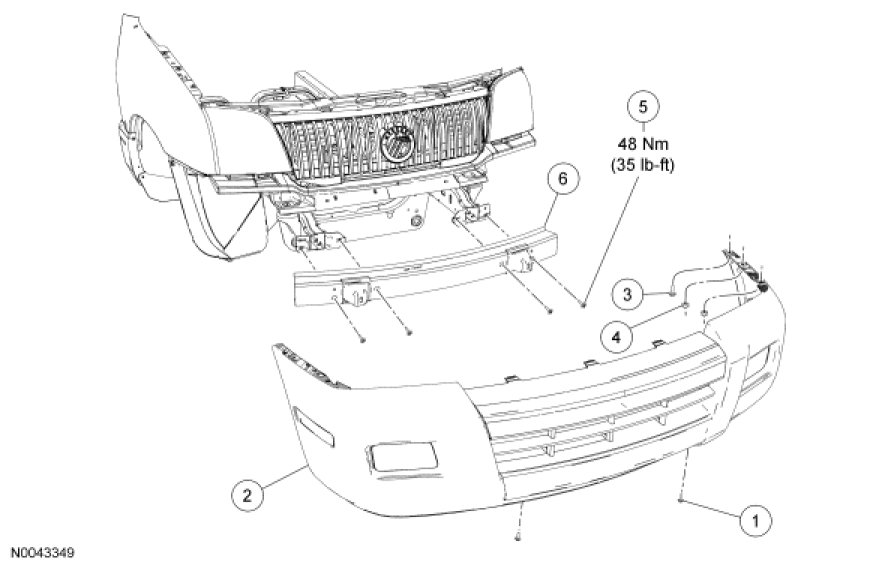

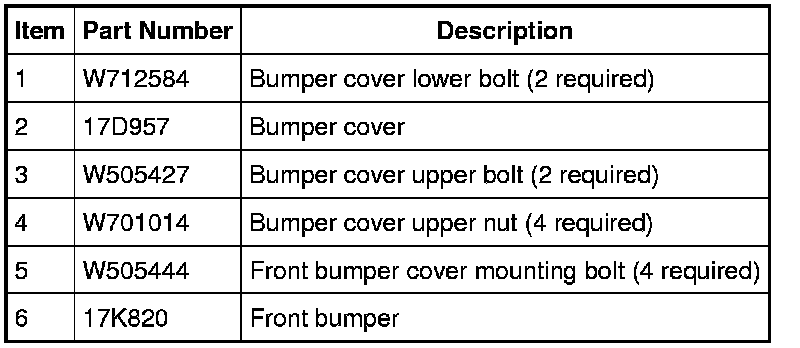

Mountaineer









1. For additional information, refer to the procedures.
