Alarm System Transmitter: Service and Repair

Passive Anti-Theft System (PATS) Transceiver









Removal and Installation

1. Remove the steering column opening cover.

2. Remove the ignition lock cylinder.

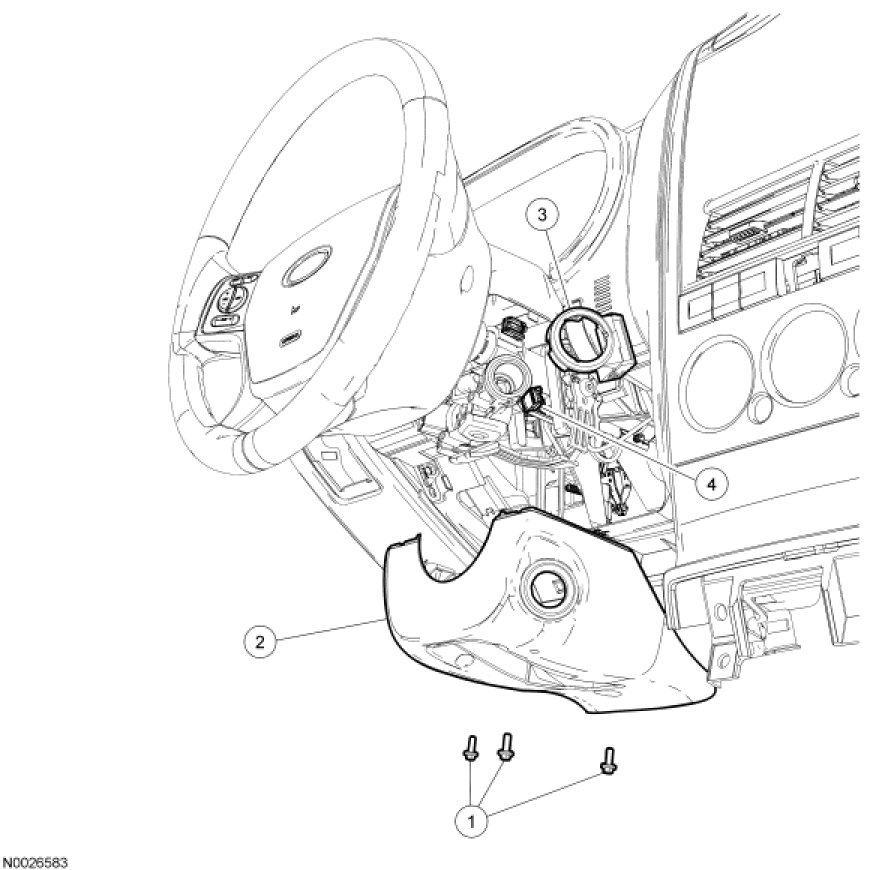

3. Remove the 3 screws and the lower steering column shroud.

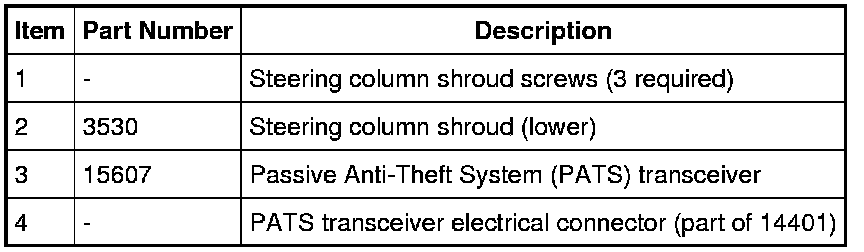

4. Remove the Passive Anti-Theft System (PATS) transceiver.

1. Release the 2 tabs.

2. Disconnect the electrical connector.

5. NOTE: Replacement of the PATS transceiver does not require the PATS keys to be programmed into the Instrument Cluster (IC) again.

To install, reverse the removal procedure.
