Home >> Ford >> 2009 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Dual Climate Controlled Seat Module (DCSM)

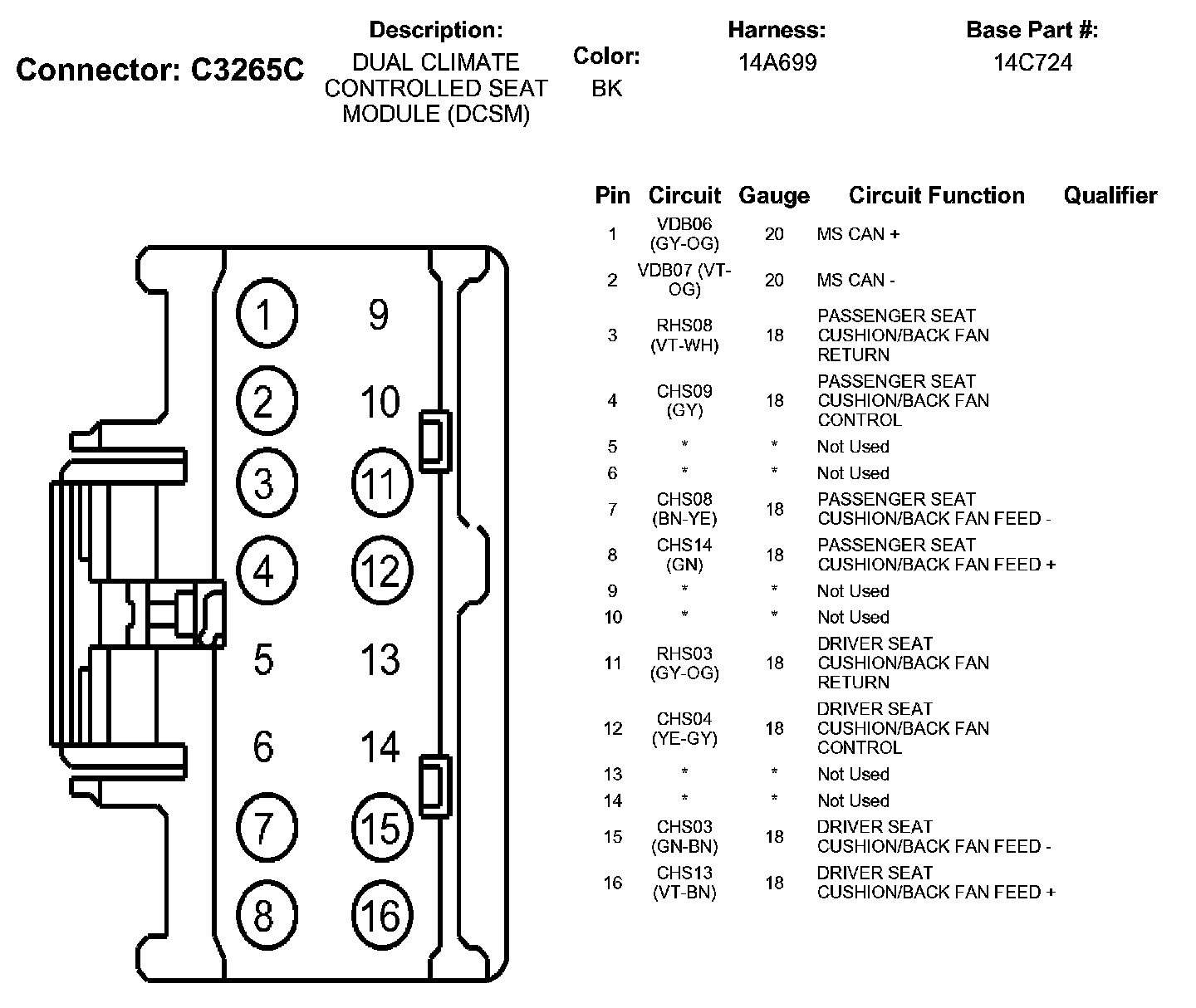

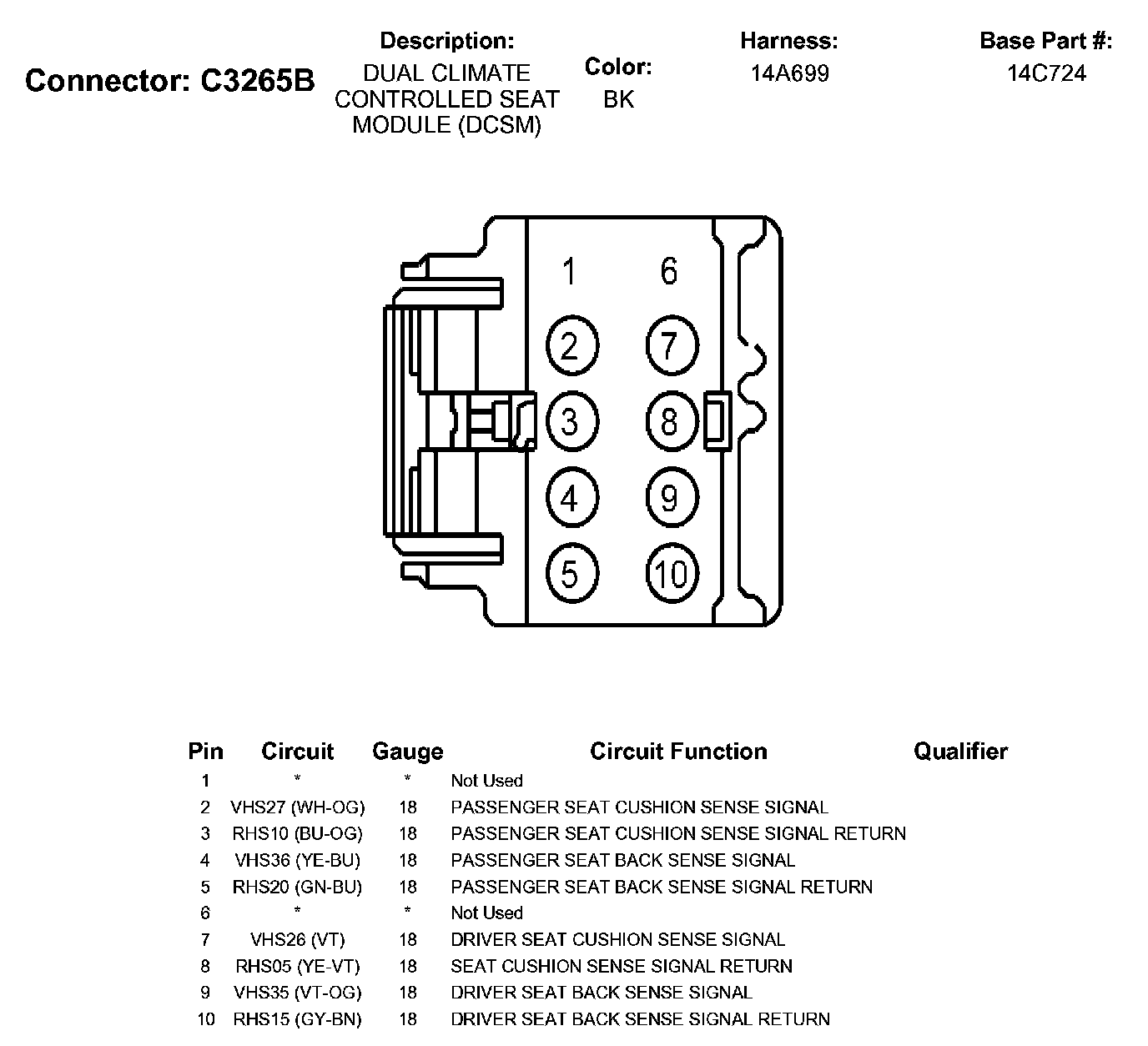

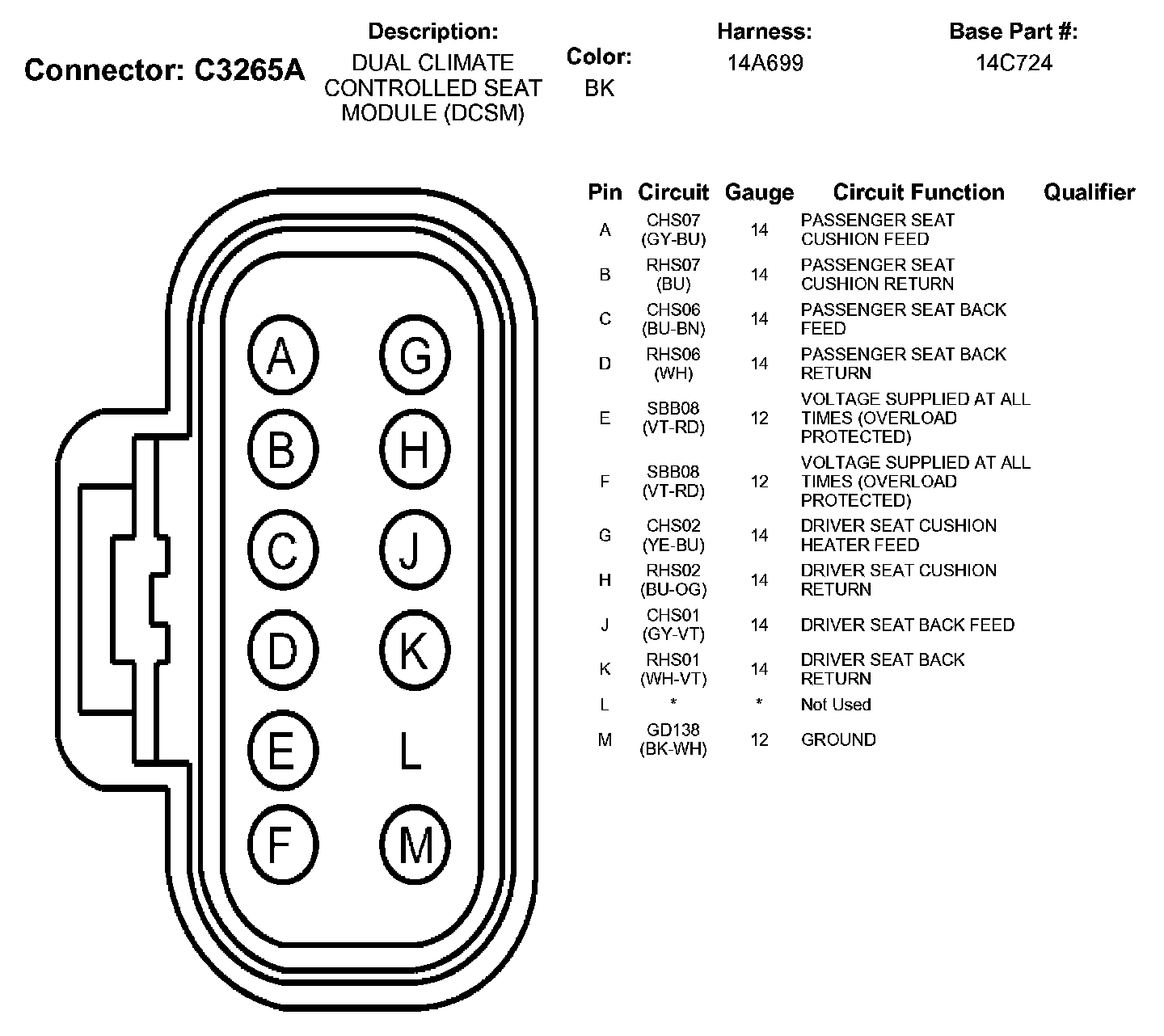

Dual Climate Controlled Seat Module (DCSM)
